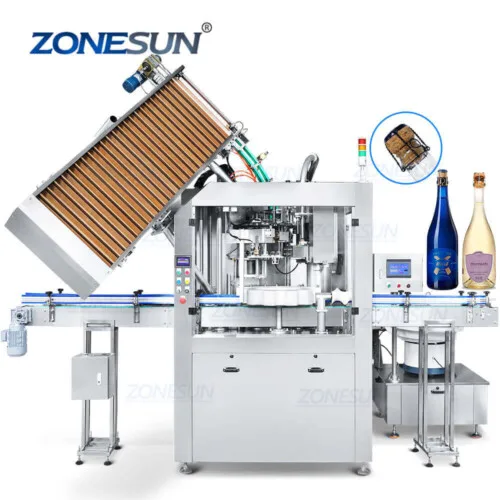

Wine Bottle Corking Muselet Caging Capping Machine

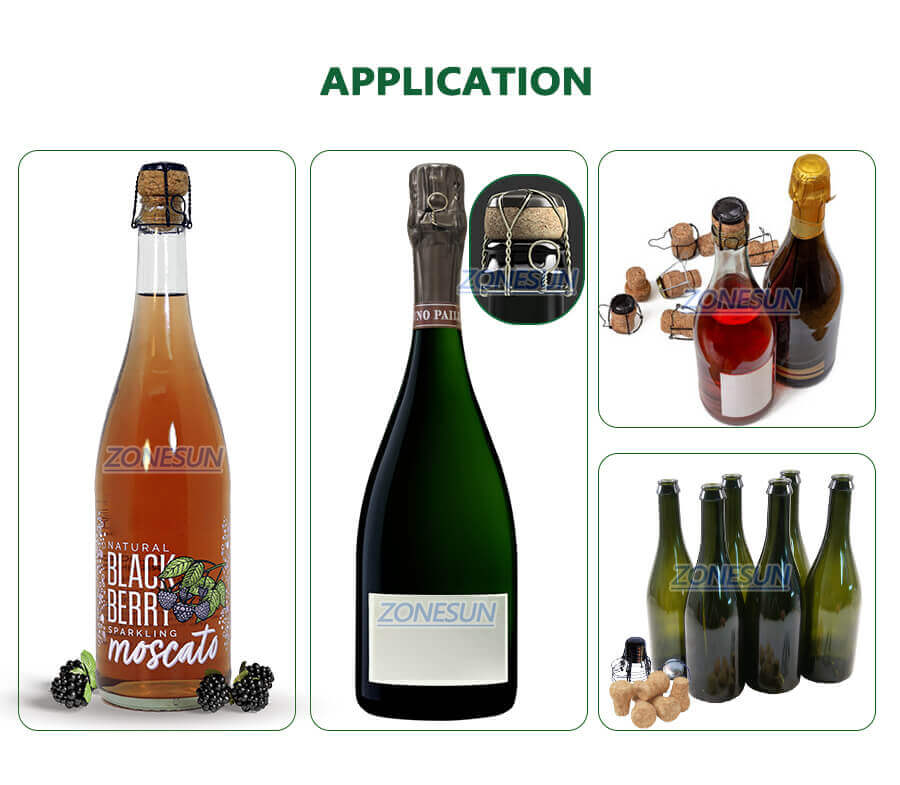

A corking and wirehooding machine is a device used in the bottling process,primarily for sparkling wines,ciders,and certain types of beer.The machine can push the cork into the bottle with considerable force,ensuring a tight seal.After the cork is placed,the machine then applies and secures the wirehood onto the bottle,twisting it to ensure it’s tightly held.This machine is only suitable for the round bottles,can not be used for the square bottles.
Share to
Description:

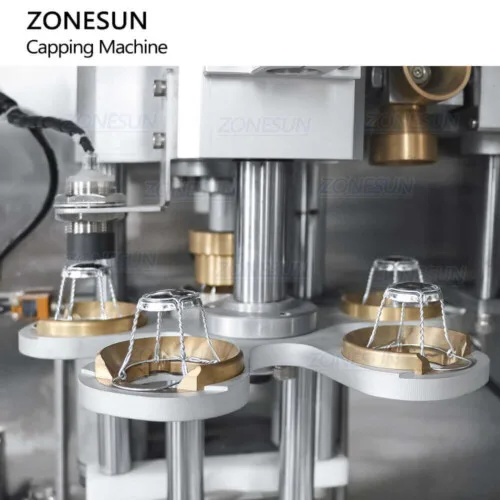

A corking and wirehooding machine is a device used in the bottling process,primarily for sparkling wines,ciders,and certain types of beer.The machine can push the cork into the bottle with considerable force,ensuring a tight seal.After the cork is placed,the machine then applies and secures the wirehood onto the bottle,twisting it to ensure it’s tightly held.This machine is only suitable for the round bottles,can not be used for the square bottles.
| Machine Model | ZS-YG17 |
| Voltage | 380V 3 Phase |
| Power | 2kW |
| Working Speed | About 2000 BPH(depending on product size) |
| Suitable Bottle Diameter | 70-155mm(Can be customized) |
| Suitable Bottle Height | 220-390mm(Can be customized) |
| Suitable Cork Size | Can be customized |
| Air Pressure | 0.5MPa |
| Air Consumption | 10L/min |

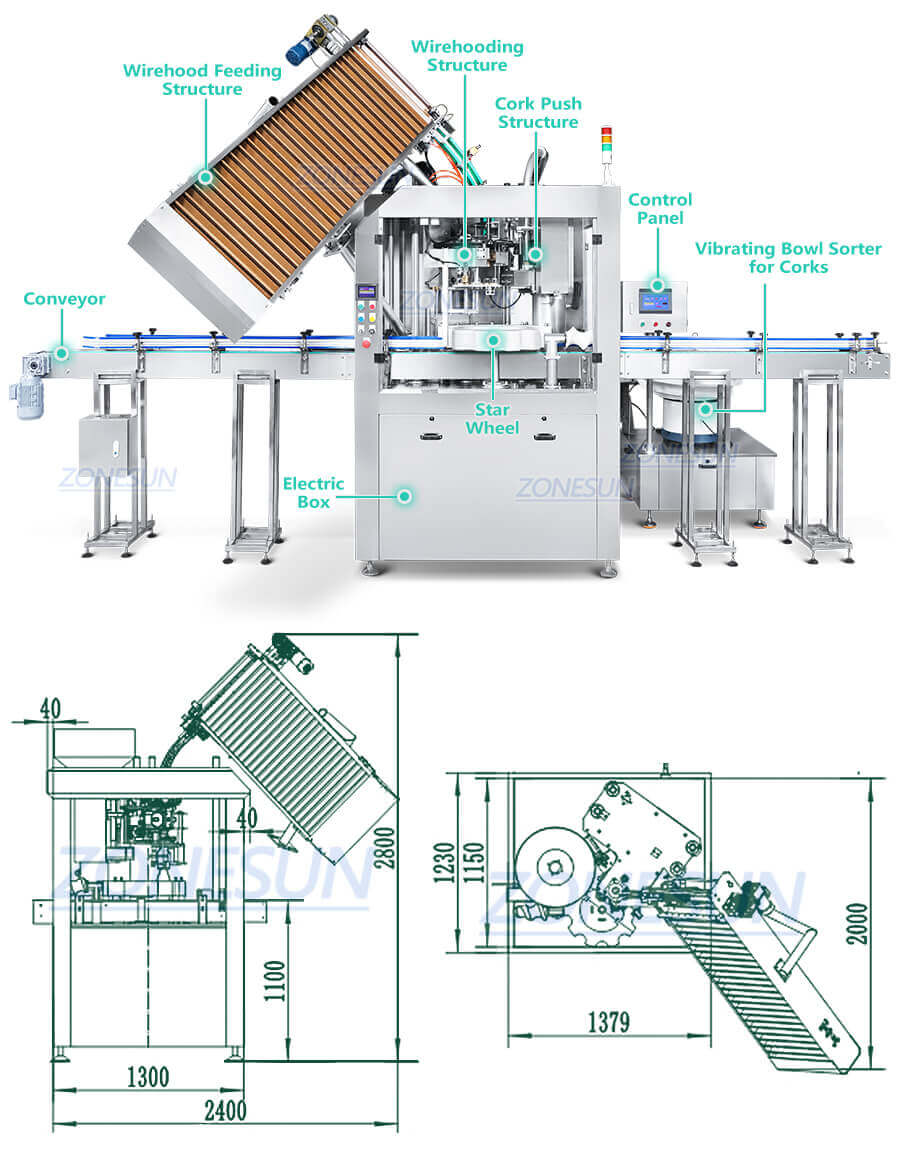

| Machine Size | About 6150*2700*3000mm |
| Machine Weight | About 2000kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| Air Cylinder | AirTac | Taiwan,China |
| Electromagnetic Valve | AirTac | Taiwan,China |
| Inverter | Schneider | France |

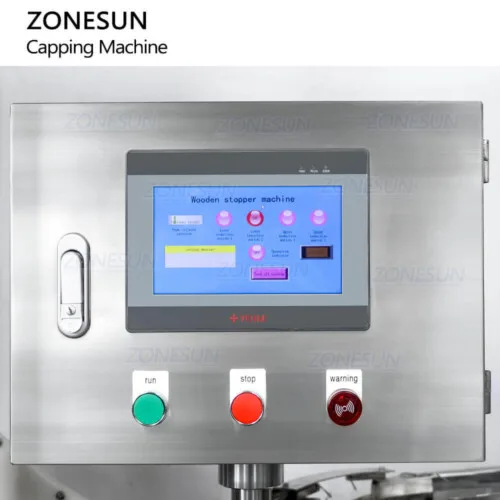

| PLC | Schneider | France |
| Screen Panel | Schneider | France |
| Low Voltage Electrical System | CHNT | Zhejiang,China |
