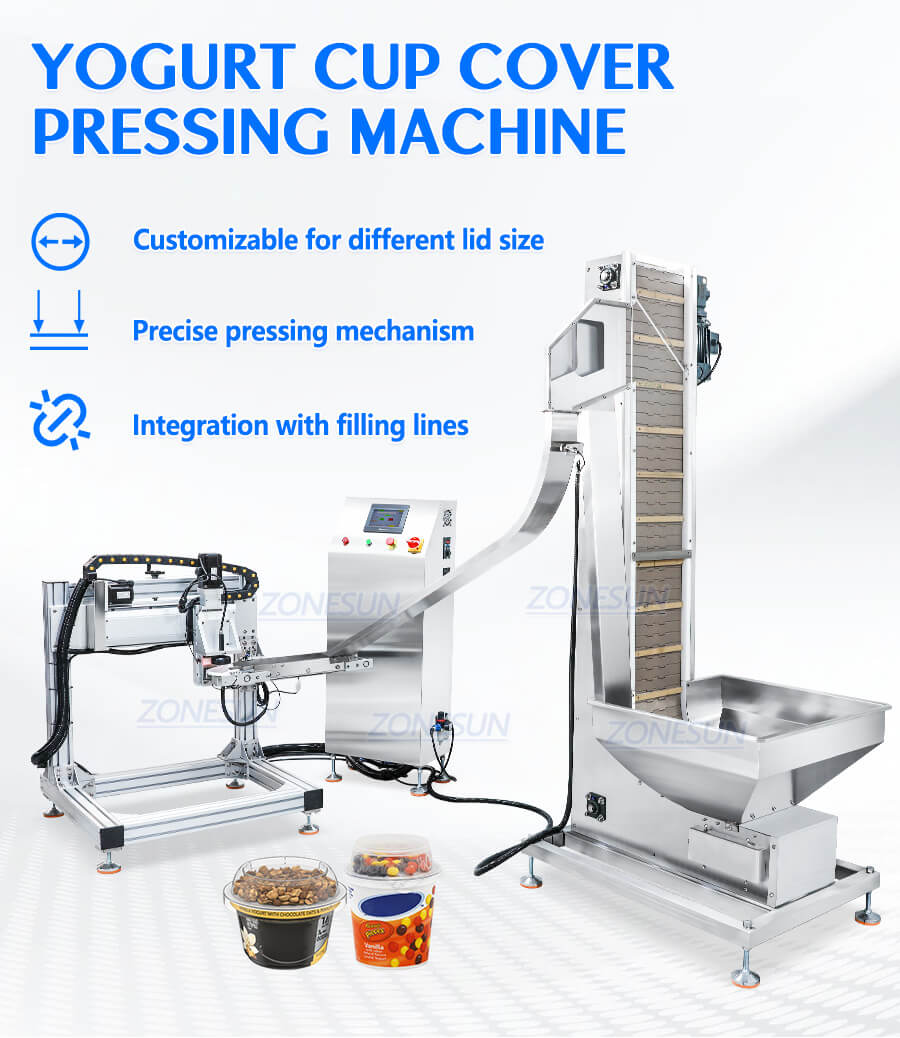

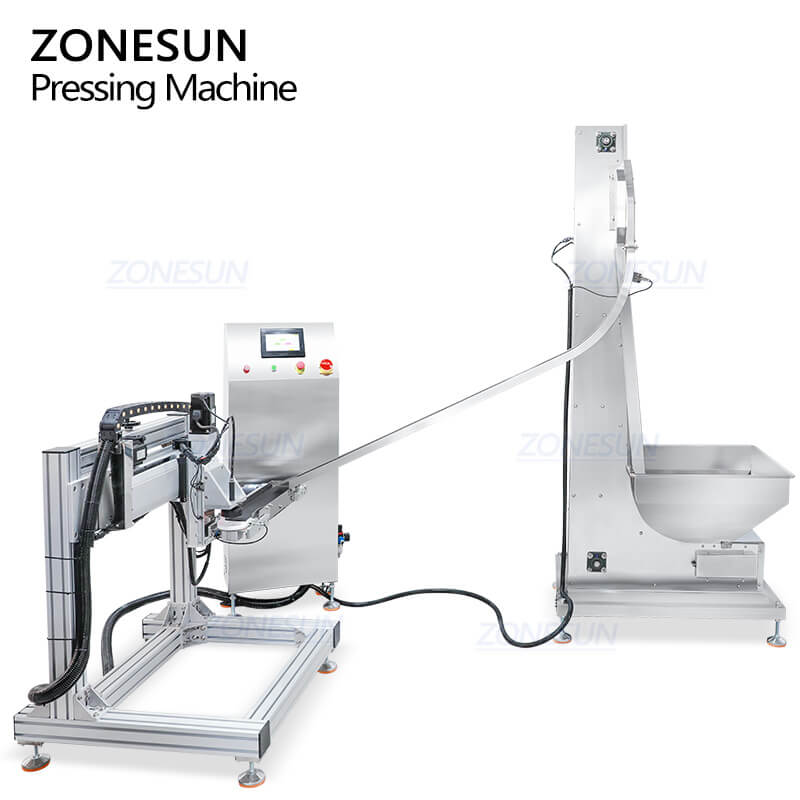

Yogurt Cup Pressing Capping Machine
This yogurt cup cover pressing machine work with cap elevator to realize automated cap feeding & cap pressing. It is widely used in dairy production. This capping machine can work with filling machine, pasteurization tank to realize full automated production.
Share to
Product Description:
This yogurt cup cover pressing machine work with cap elevator to realize automated cap feeding & cap pressing. It is widely used in dairy production. This capping machine can work with filling machine, pasteurization tank to realize full automated production.
Product Parameters:
| Machine model | ZS-SGYG01 |
| Machine voltage | 110/220V 50-60HZ 500 W |
| Suitable bottle height | Customizable |
| Suitable bottle caps diameter | Customizable |
| Working speed | 20-30 BPM(depending on bottle and caps) |
| Working pressure | 0.5 MPa |

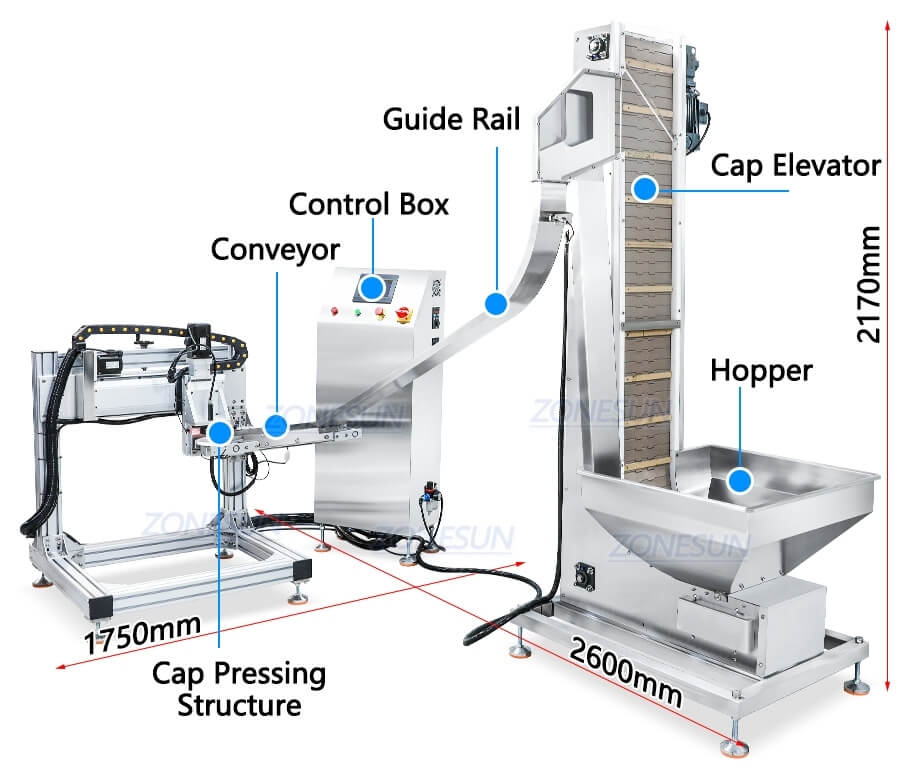

| Machine size | About 1750*2600*2170 mm(Total L*W*H) |
| Package size | About 2220*960*1210mm (Cap Elevator)+1330*1090*1410mm(Capping Structure) |
| Package weight | About 180kg(Cap Elevator)+175kg(Capping Structure) |
Product Details:

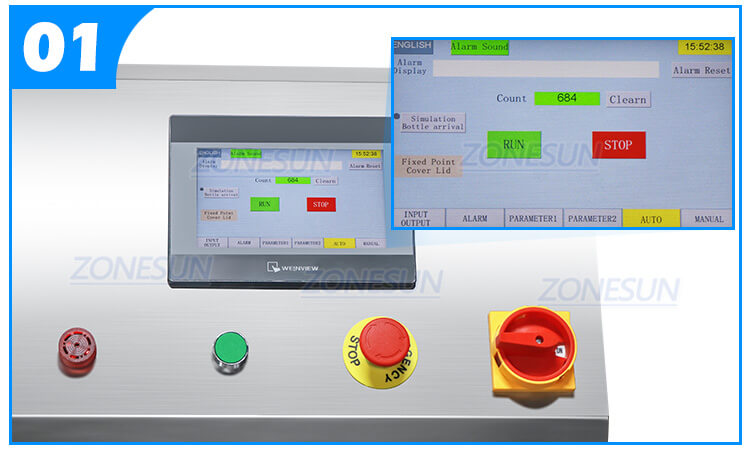

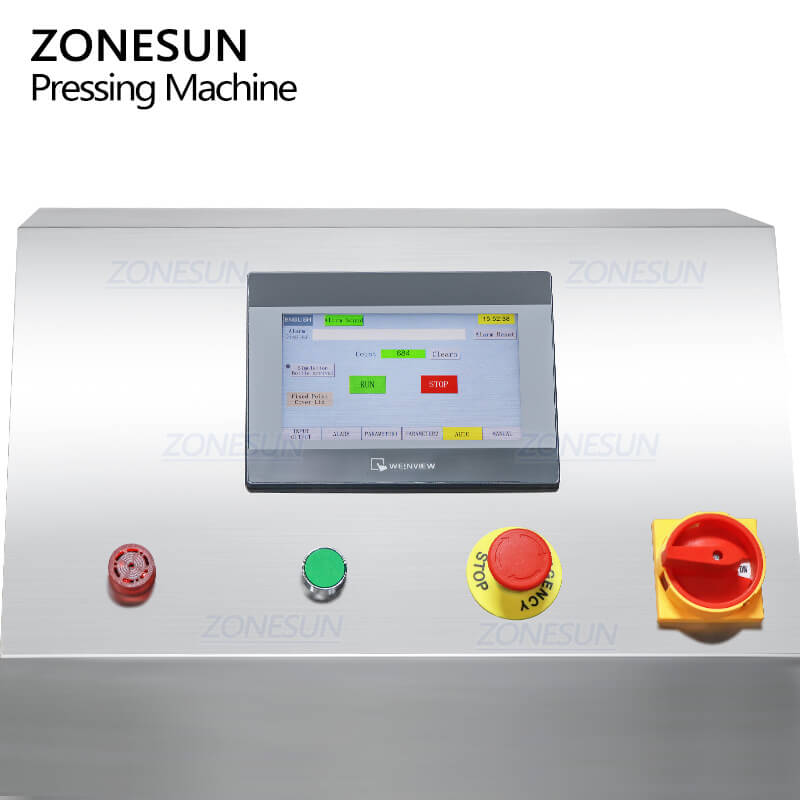

Control Panel
Makes parameter setting more intuitively, multi kinds of language are customizable.

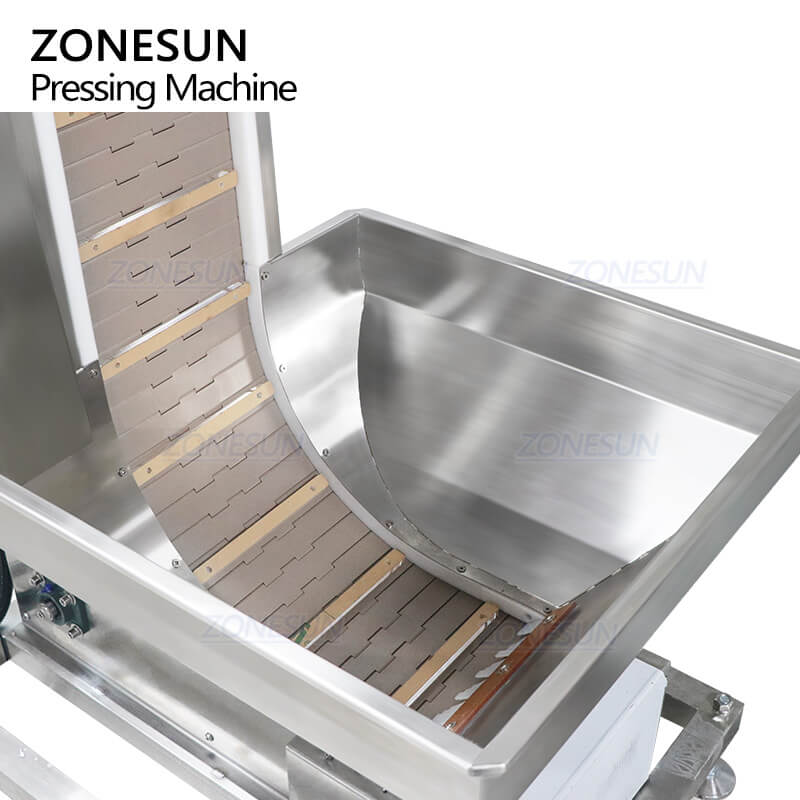

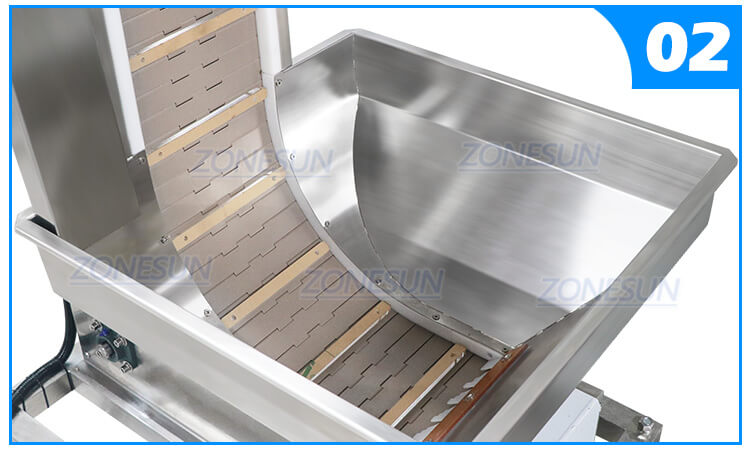

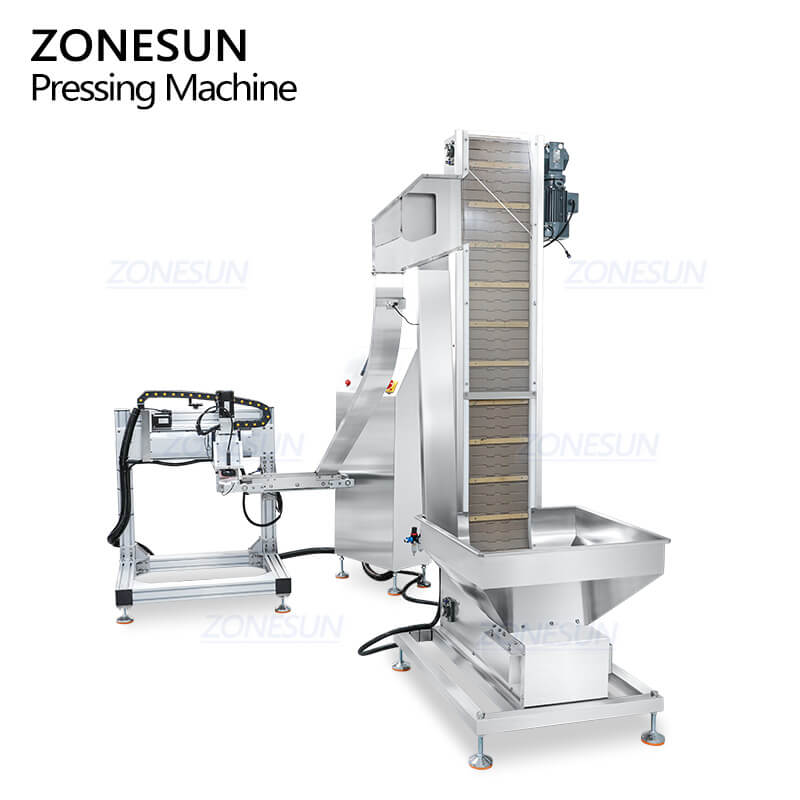

Cap Elevator
Designed for feeding caps in time, it saves working labor.Customizable as needed.

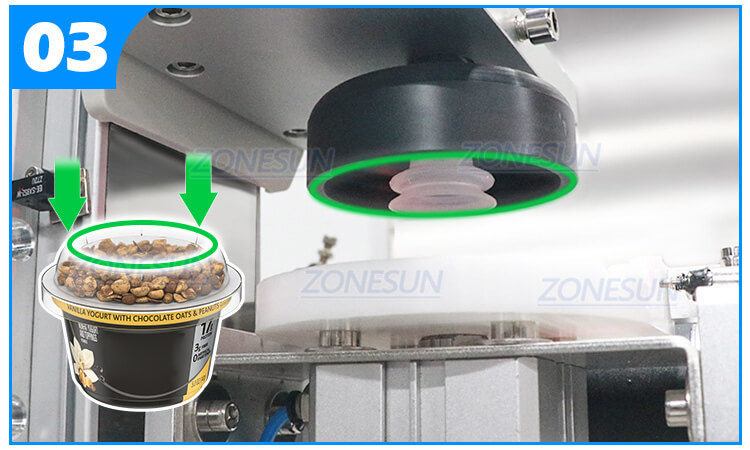

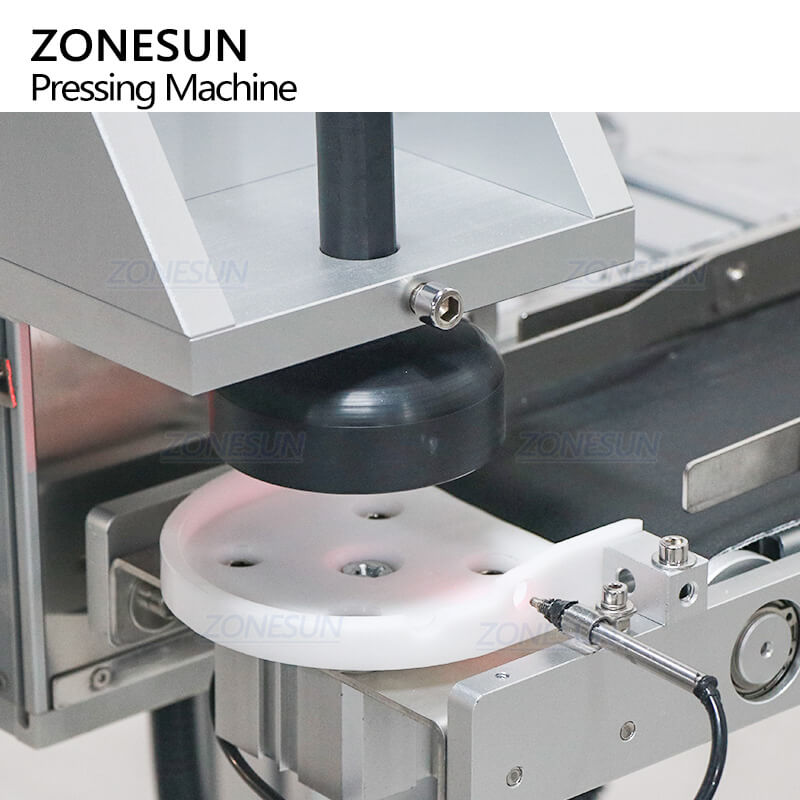

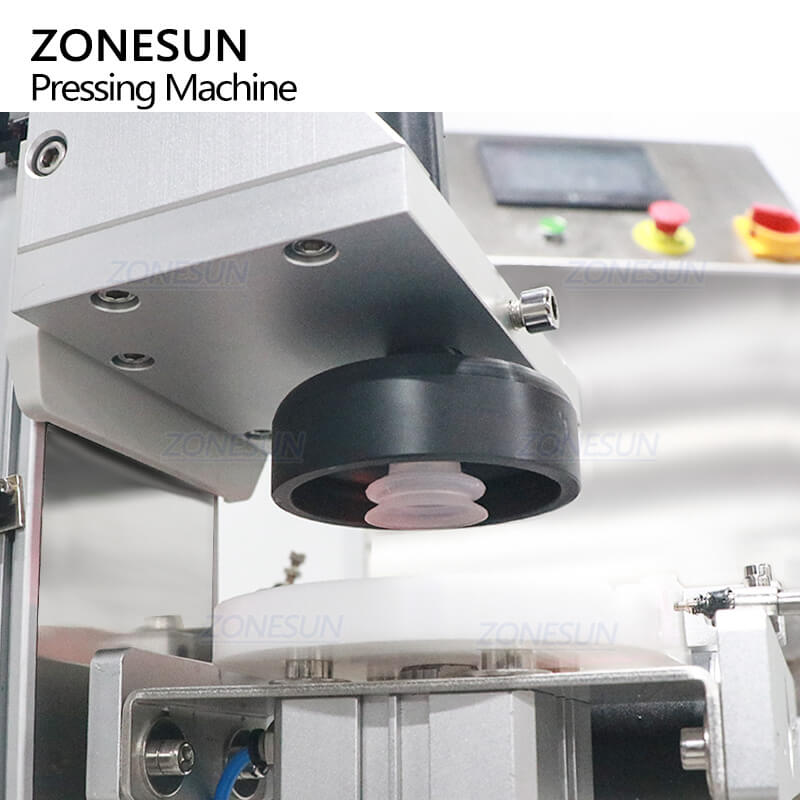

Capping Structure
Using suction cups to pass covers and press it onto cups, ensures capping accuracy.

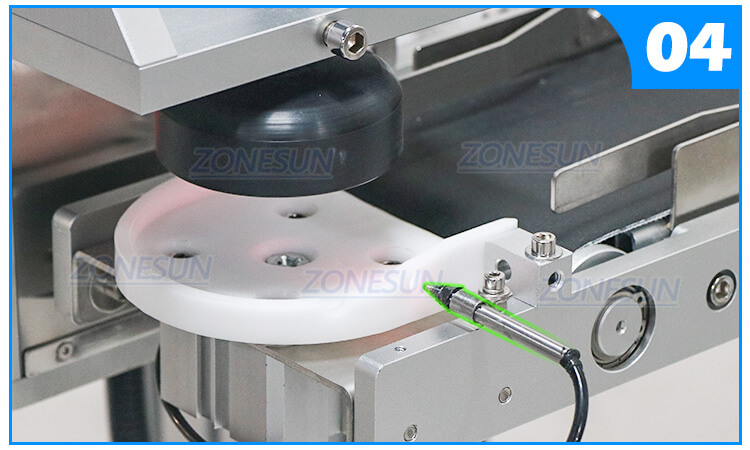

Electric Eye
Can detect passing by cups and finsihed cap pressing work, it can integrate with filling lines.

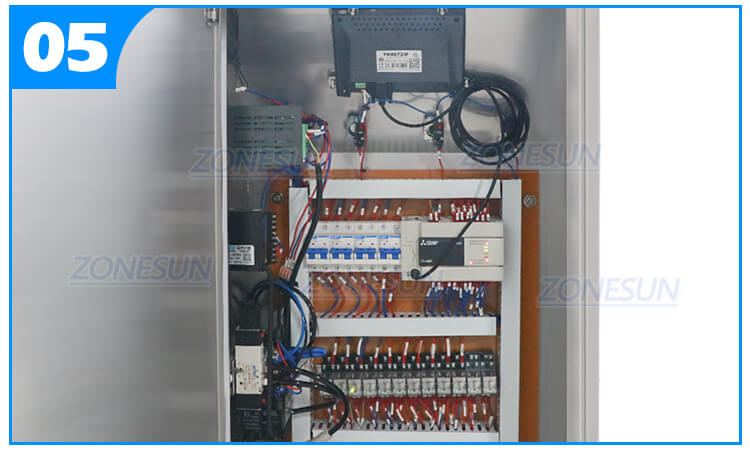

Independent Electric Box
This helps maintain machine stability for precise operation & easier maintenance.
