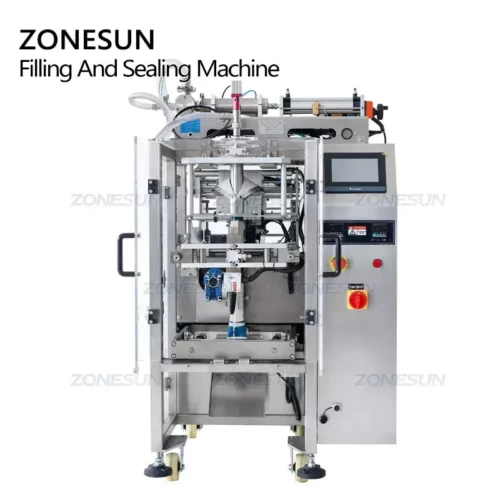

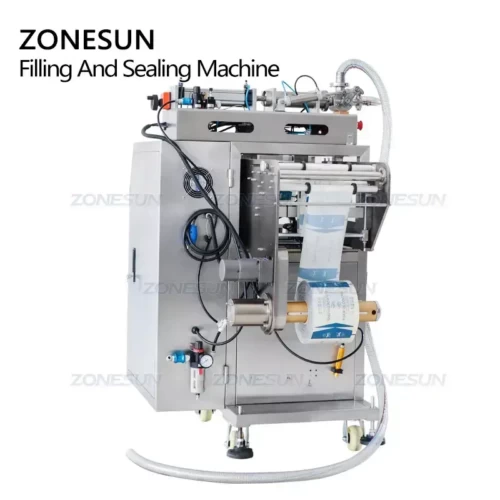

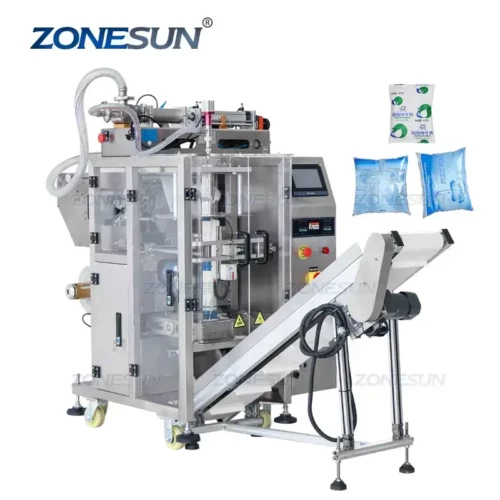

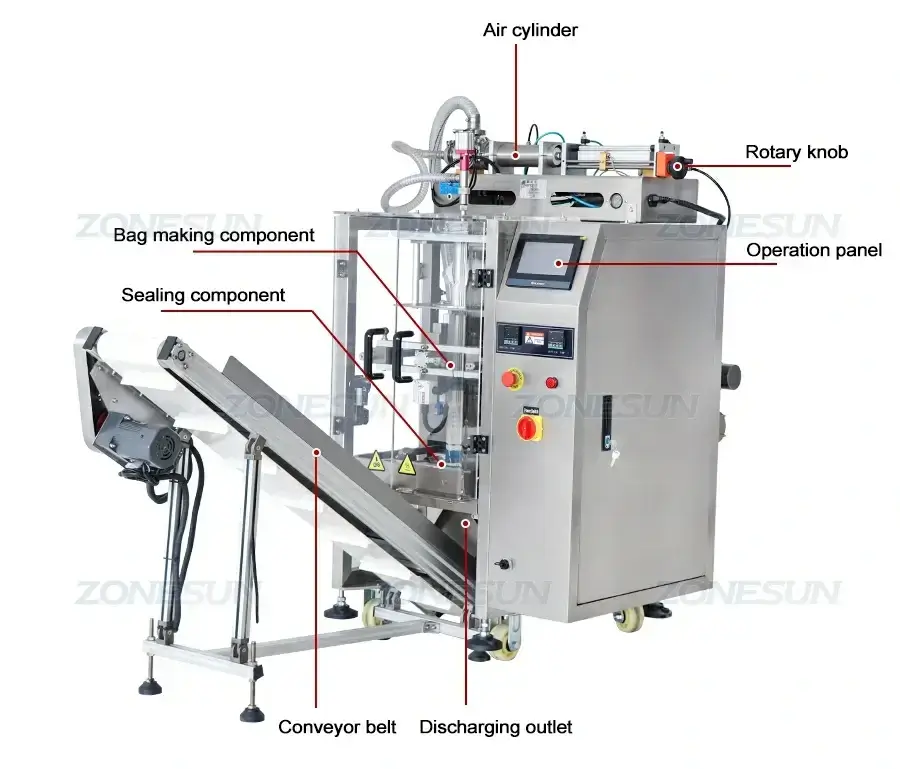

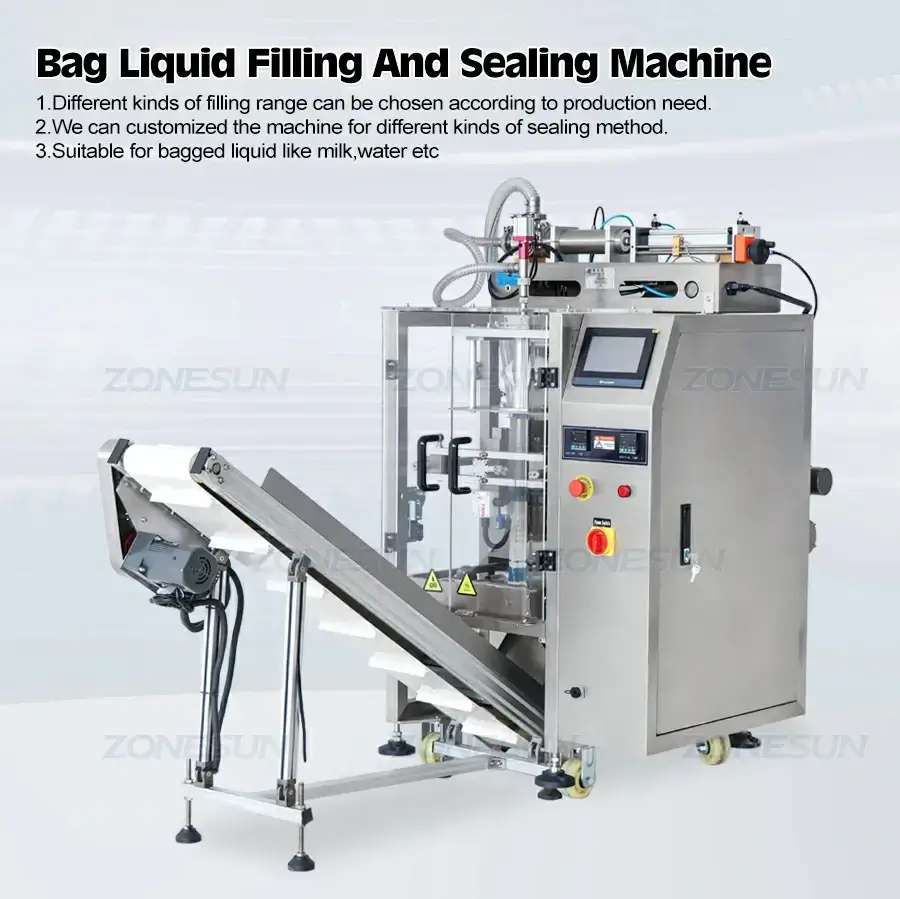

Liquid Bag Back Sealing Packing Machine
This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
Share to
Parameter:
This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
Parameter:
| Machine model | ZS-GFYT320 |
| Machine voltage | 110V/220V/380V 50-60HZ |
| Machine power | 4000W |
| Suitable film | OPP/CPP OPP/PE NILO PE |
| Weighing method | Auger weighing |
| Filling range | 50-500ml(offer different filling range) |
| Package speed | 5-60bags/min |
| Width of film | Max 320mm |
| Size of package bags | (W)50-150mm*(L)50-400mm |
| Sealing method | Back side/Three sides/Four sides(Customize) |
| Filling accuracy | ≤0.3-1% |
| Film thickness | 0.06-0.12mm |
| Air Pressure | 0.65Mpa 0.7m³/min |
| Lifting height |
About 1200mm |
| Conveying speed |
50-300mm/s(adjustable) |
| Machine size |
About 830*1080*1450mm(Machine) |
| Package size |
About 1265*945*1665mm(Machine)
About 1740*500*450mm(Conveyor belt) |
| Machine weight |
About 289kg(Machine) |
| Package weight | About 333kg(Machine)+About 51kg(Conveyor belt) |
