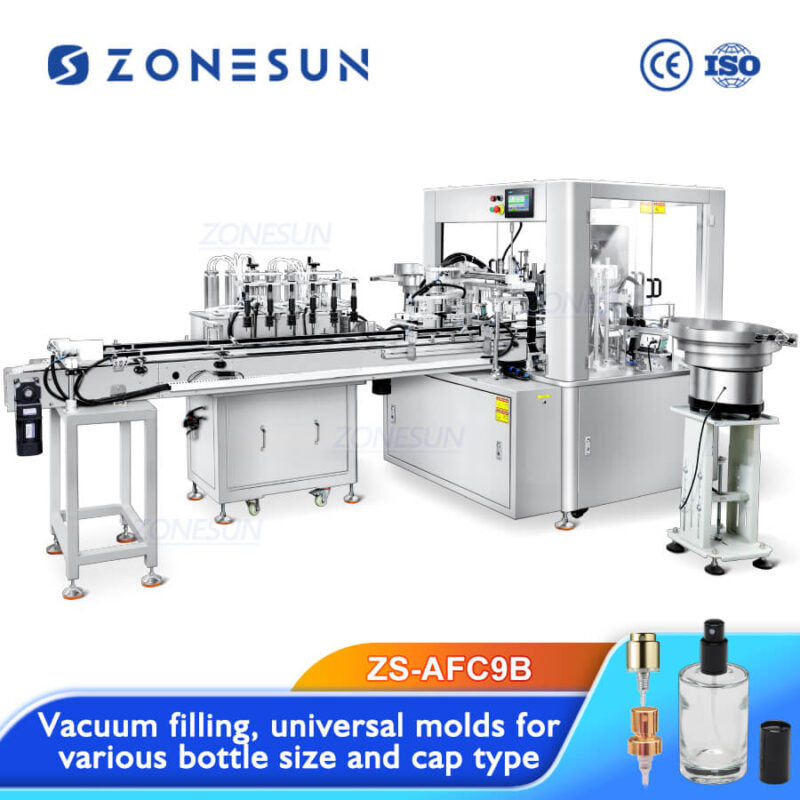

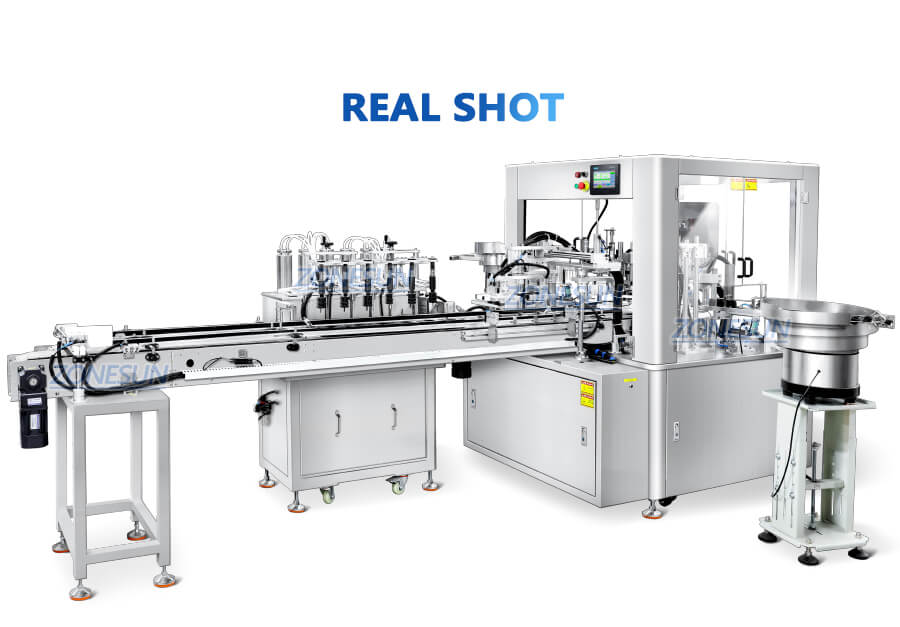

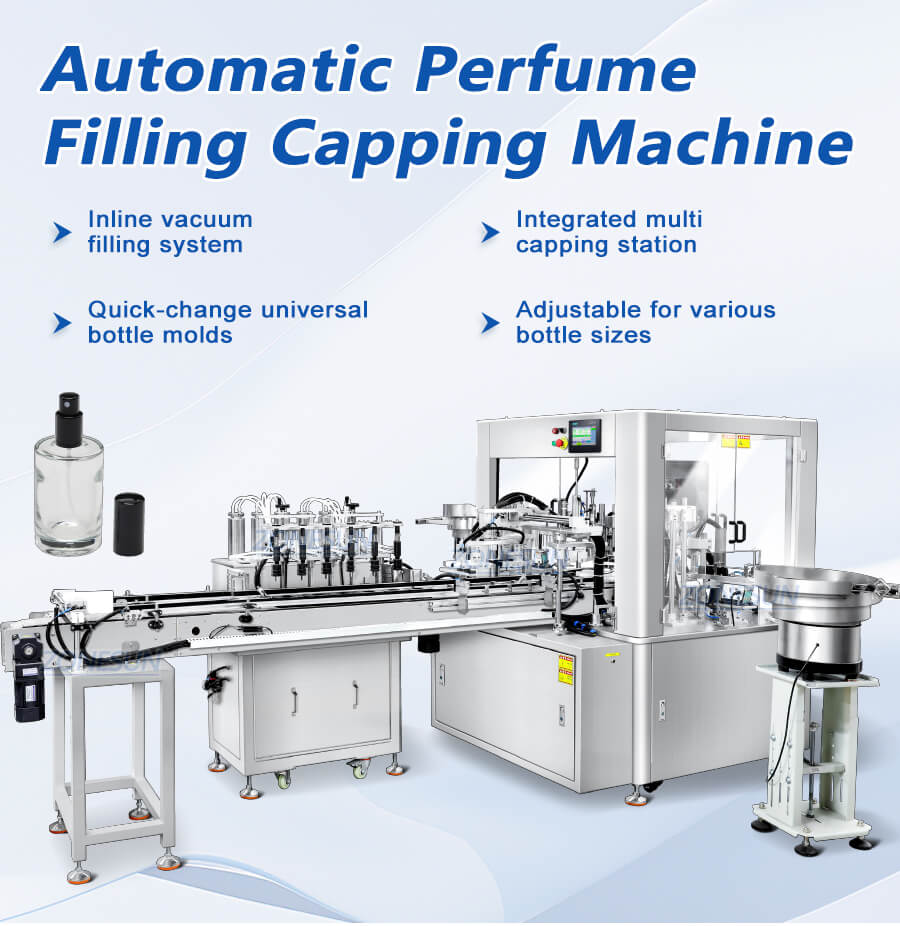

ZONESUN ZS-AFC9B Monoblock Vacuum Perfume Filling Capping Machine
This perfume filling and capping machine is designed specifically for liquid fragrance packaging. It features an independent inline vacuum filling system that ensures excess liquid above the fill level is efficiently drawn back into the tank. The integrated capping module combines multiple workstations to simultaneously handle cap placement, screwing, or crimping. A set of 32 universal bottle holders (molds) allows for quick bottle changeovers without the need for mold replacement. After capping, the system automatically lift out the finished bottles from the molds.
$35,999.00
Share to
This perfume filling and capping machine is designed specifically for liquid fragrance packaging. It features an independent inline vacuum filling system that ensures excess liquid above the fill level is efficiently drawn back into the tank. The integrated capping module combines multiple workstations to simultaneously handle cap placement, screwing, or crimping. A set of 32 universal bottle holders (molds) allows for quick bottle changeovers without the need for mold replacement. After capping, the system automatically lift out the finished bottles from the molds.
| Machine model | ZS-AFC9B |
| Machine voltage | 110/220V 50-60HZ 2.8KW |
| Recommend filling volume | 10-200ml |
| Suitable bottle size | φ=20-40mm H=60-120mm |
| Suitable bottle opening mouth size | 13/15/18/20mm |
| Suitable screw type cap size | φ=15-50mm |
| Machine size | About 4300*2770*1750mm |
| Machine weight | About 570+170+300+100+240=1380kg |
|
Package size |
About 2020*1580*1940mm
About 1020*770*1500mm About 1110*1160*610mm About 1240*710*710mm |
| Package weight | About 670+190+350+120+300=1630kg |

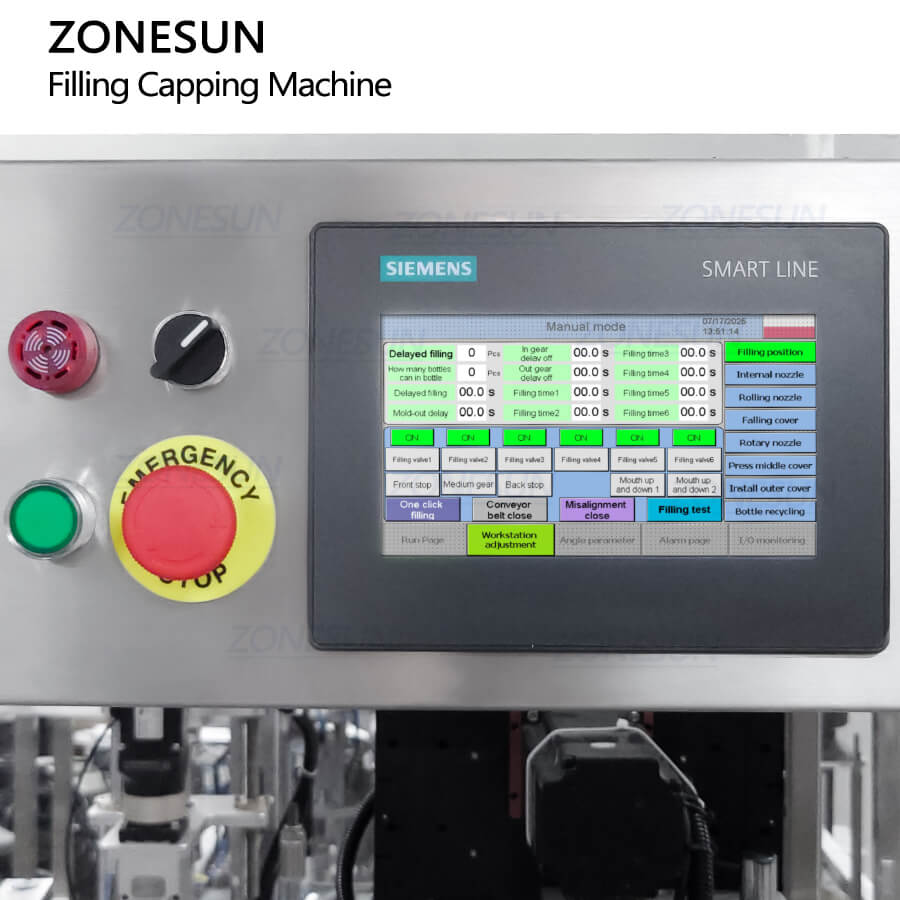

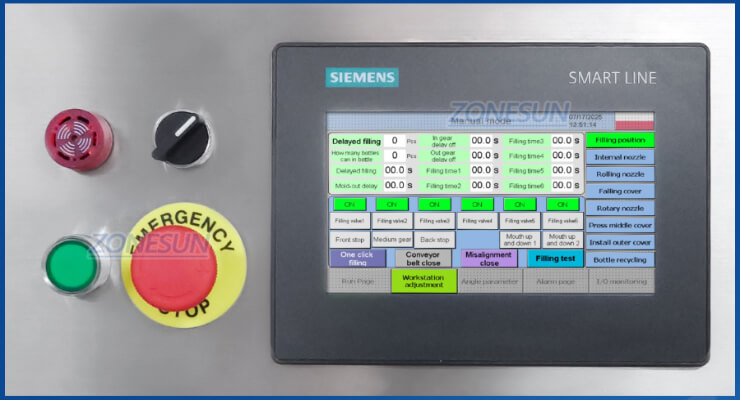

Touch Screen Control Panel
User-friendly touchscreen interface enables intuitive operation and real-time monitoring of the capping process.

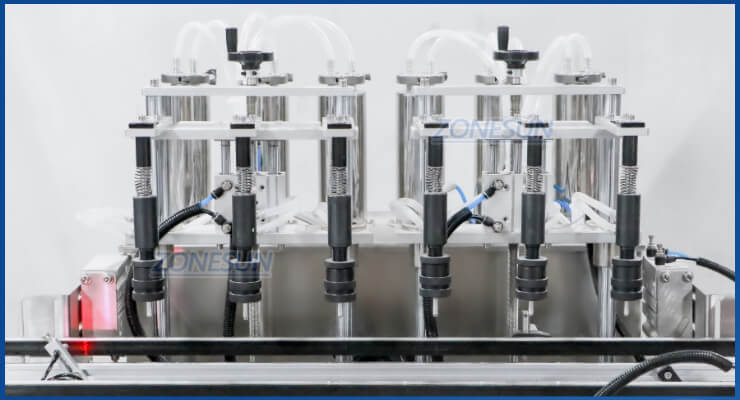

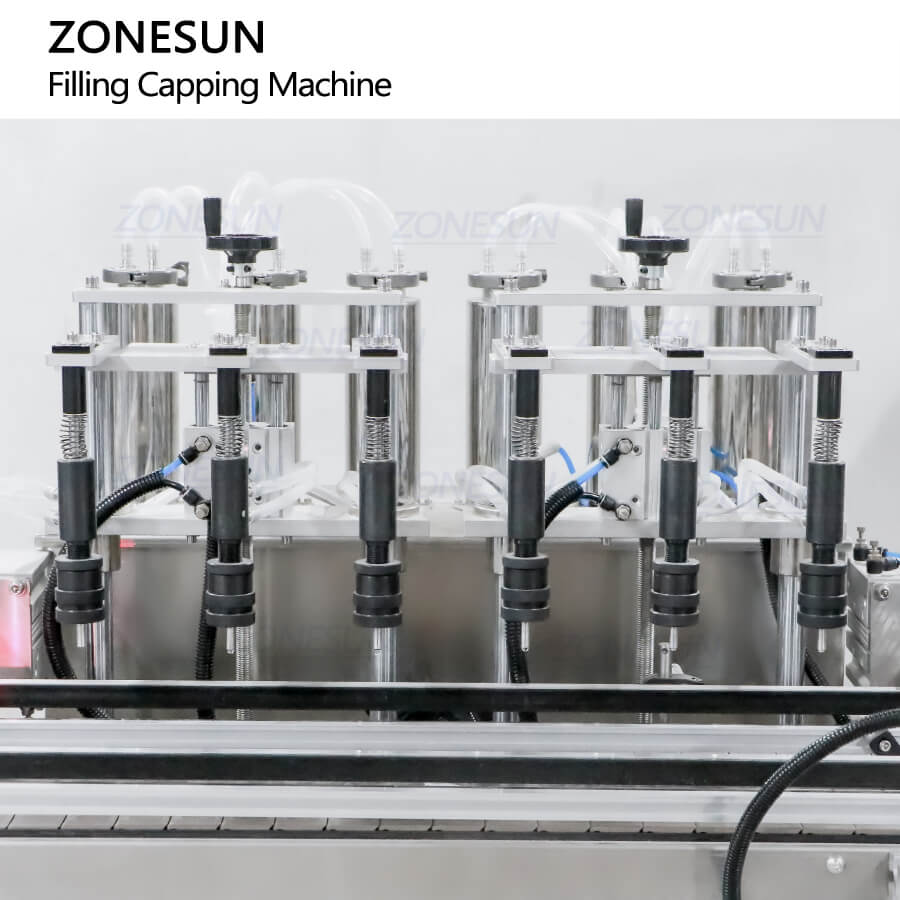

Inline Vacuum Filling System
Ensures precise liquid level by drawing back excess liquid into the tank, ideal for perfume or other volatile liquids.

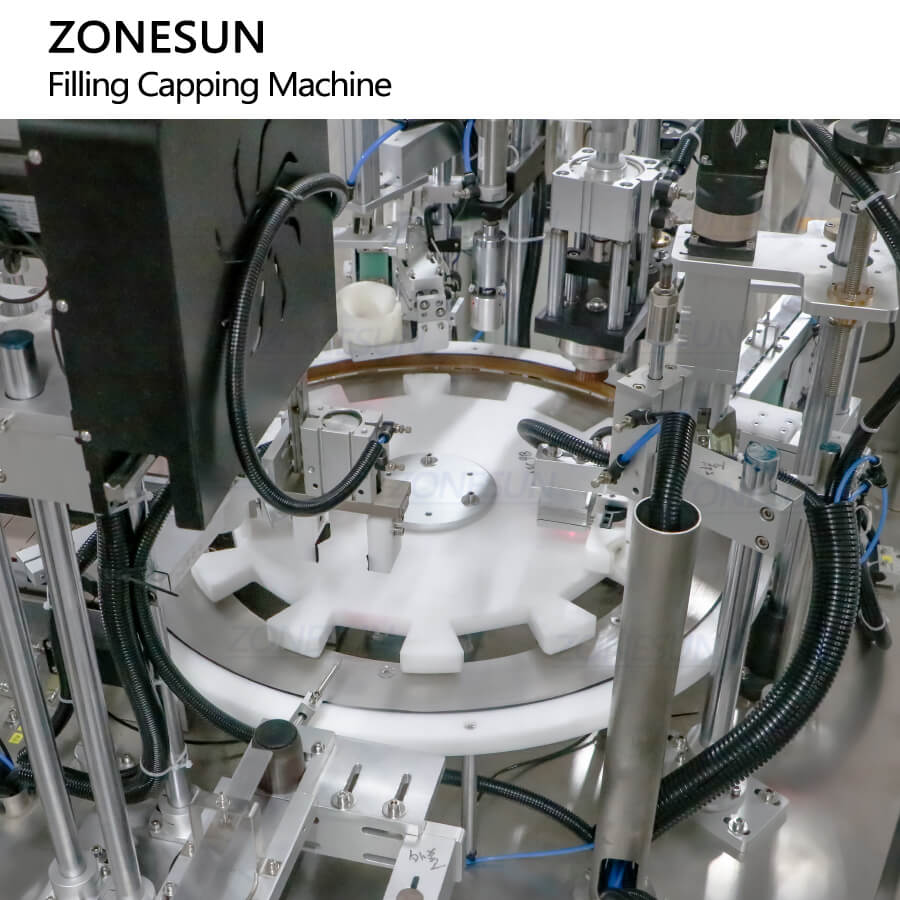

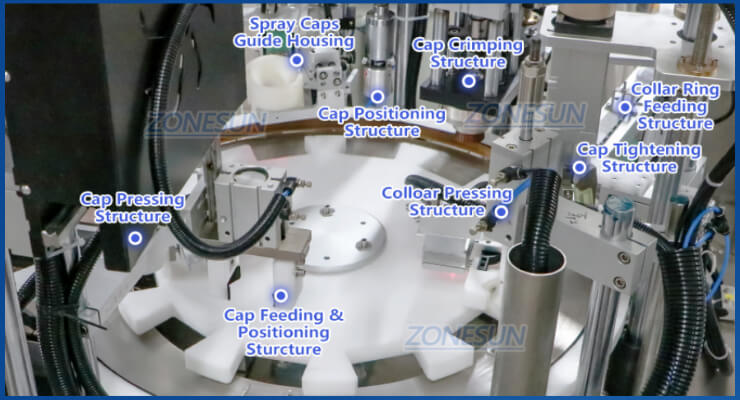

Integrated Capping Station
Combines cap placement, screwing, and crimping in one unit with multi-station parallel operation to improve speed and efficiency.

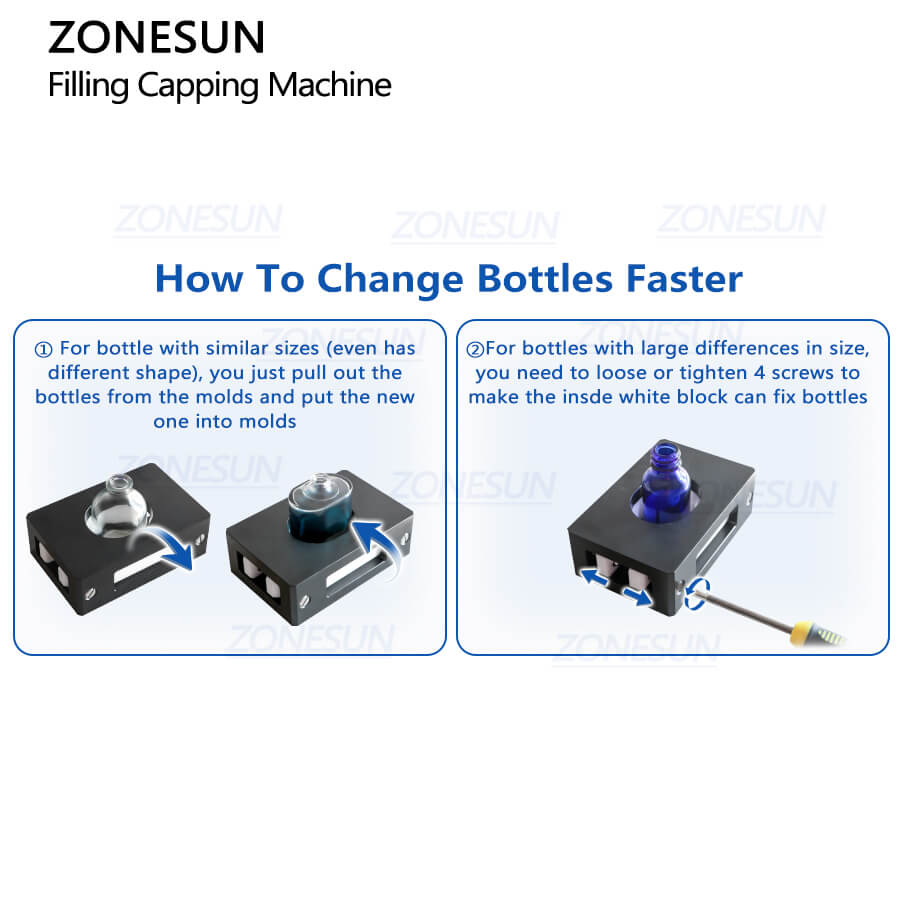

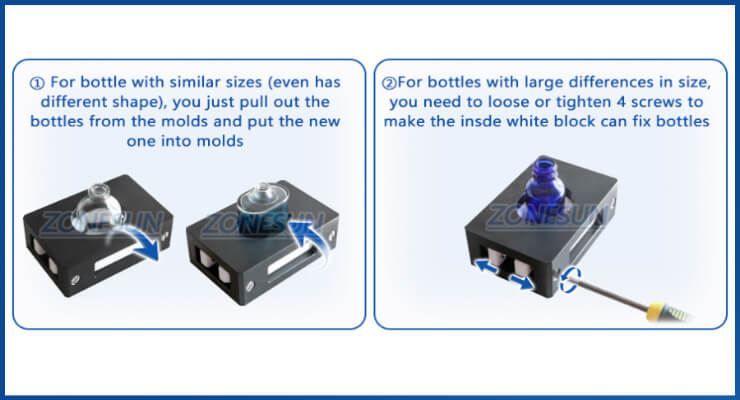

Universal Bottle Holding Mold
Includes 32 molds compatible with various bottle sizes; bottles can be inserted or removed easily for quick switching.No need for new custom molds.

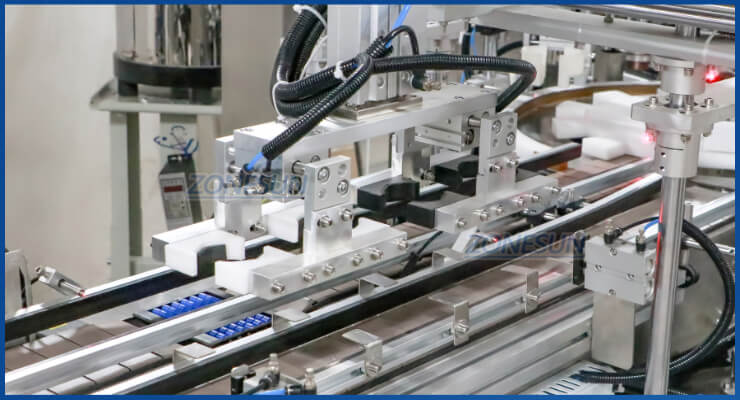

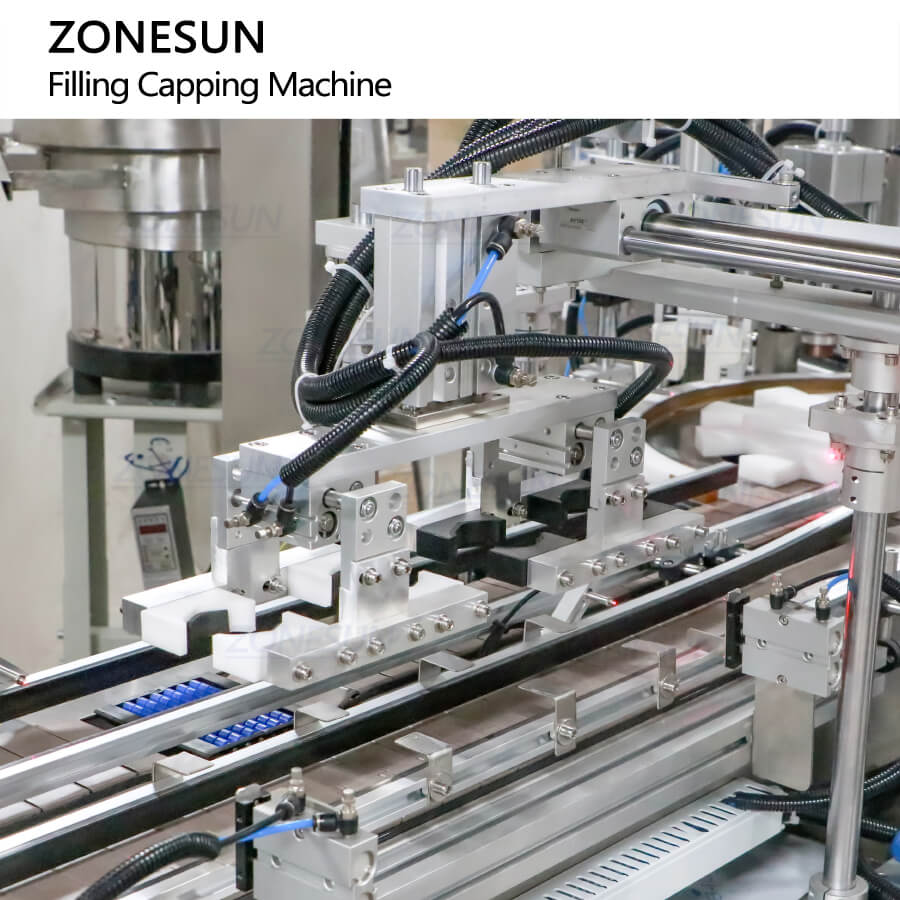

Bottle Removal Mechanism
Using a mechanical gripper to lift the bottles out of the mold, it simulate human hand movement for smooth and precise removal.
