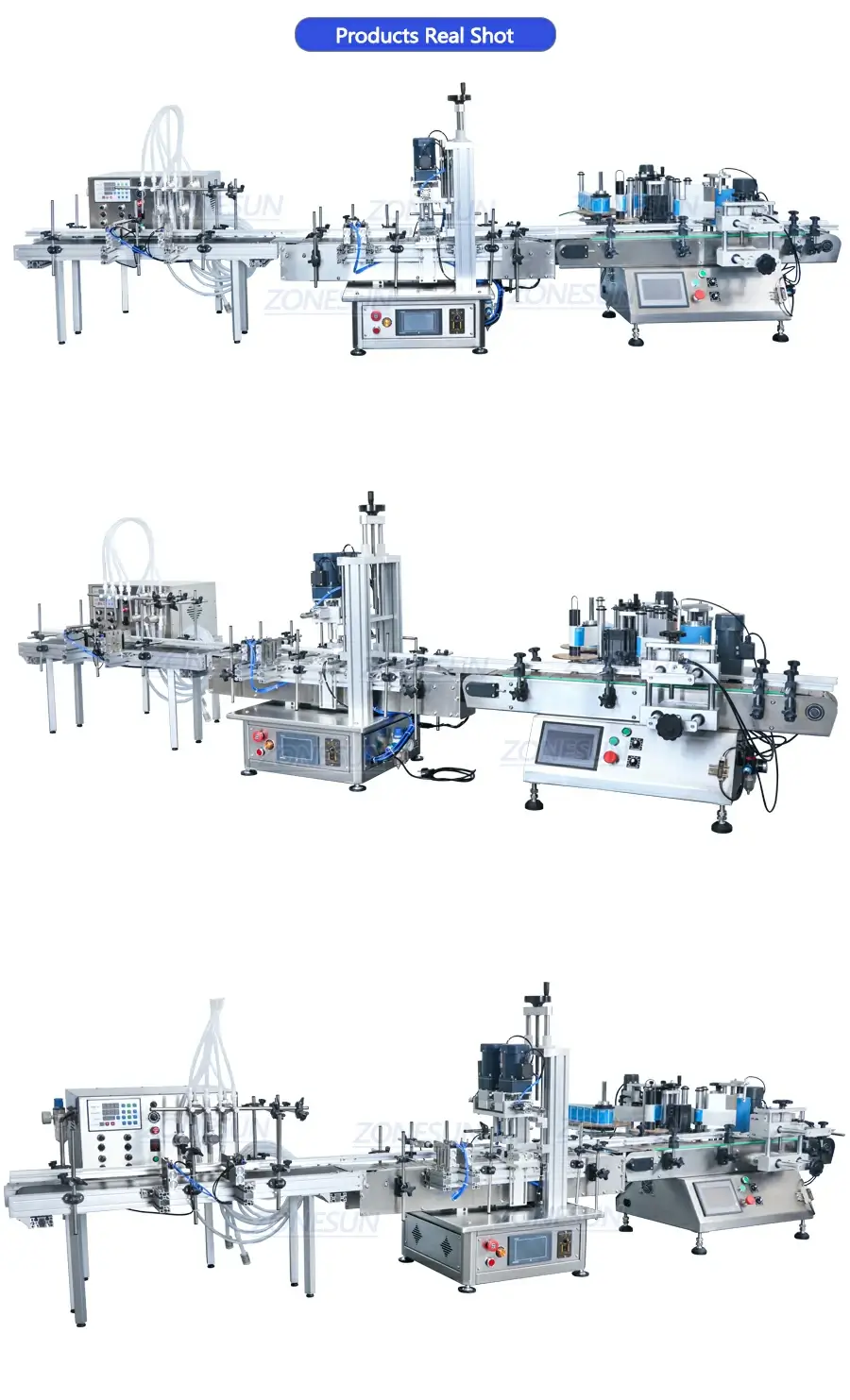

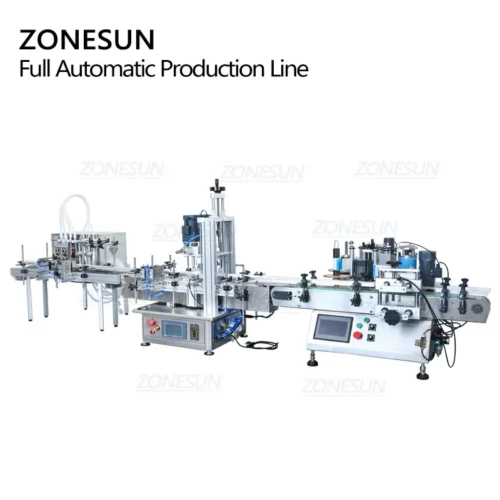

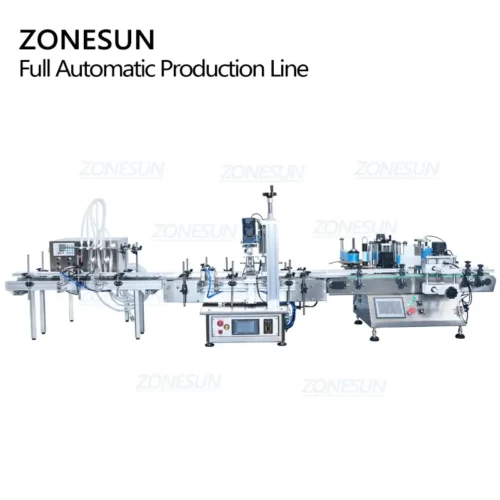

Automatic Filling Capping And Labeling Machine

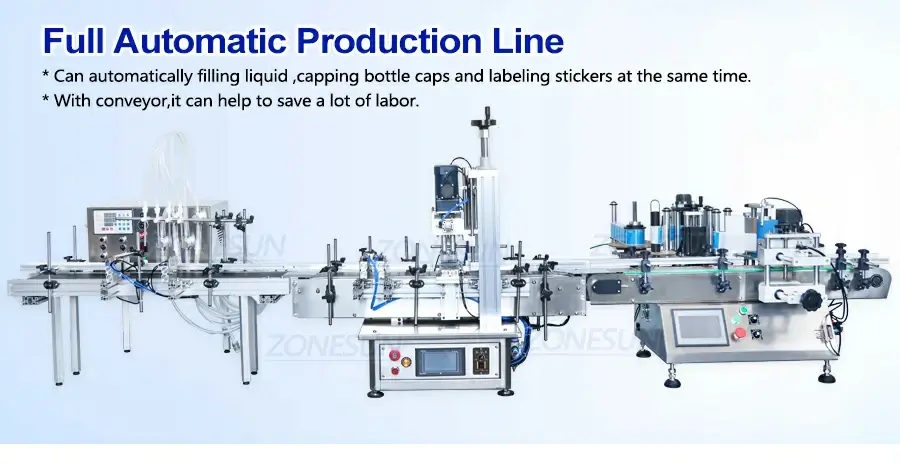

This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Share to
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
Attention:
We can customize machine according to your filling material,bottle caps,make sure these machines can work better with your products.We can also customize the conveyor into L confirguration which can help you save working space.

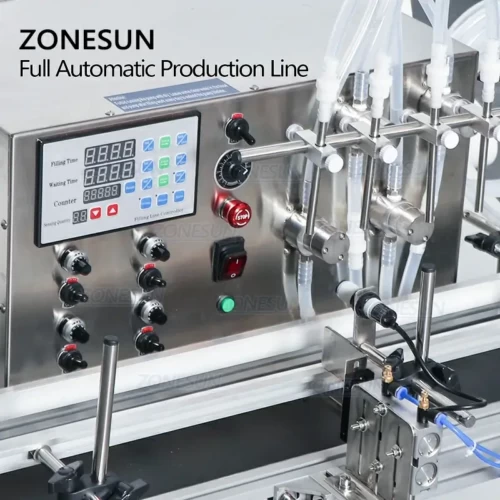

| Power supply Voltage | 110/220V 50-60HZ |
| Maximum flow velocity | 5500m/min(Each nozzle and base on water) |
| Working speed | 1500-3000 bottles/hour(depends on bottle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Bottle height | <220mm(Can be customized,max height 300mm) |
| Filling accuracy | ≤+1% (For water) |
| Diameter of Filling Nozzle | 6/8mm |
| Delay range | 0.01-999.9s |
| Count range | 1-99999 Times |
| Net weight | About 37kg |
| Package size | About 1110x650x420mm |
| Gross weight | About 50.5kg |
| Filling volume | 3-1000ml(220V)3-500ml(110V)since the power of 110v mechine is not lange, so we recommend 3-500ml for each nozzle |
| Size of air compressor connector | OD 8mm |

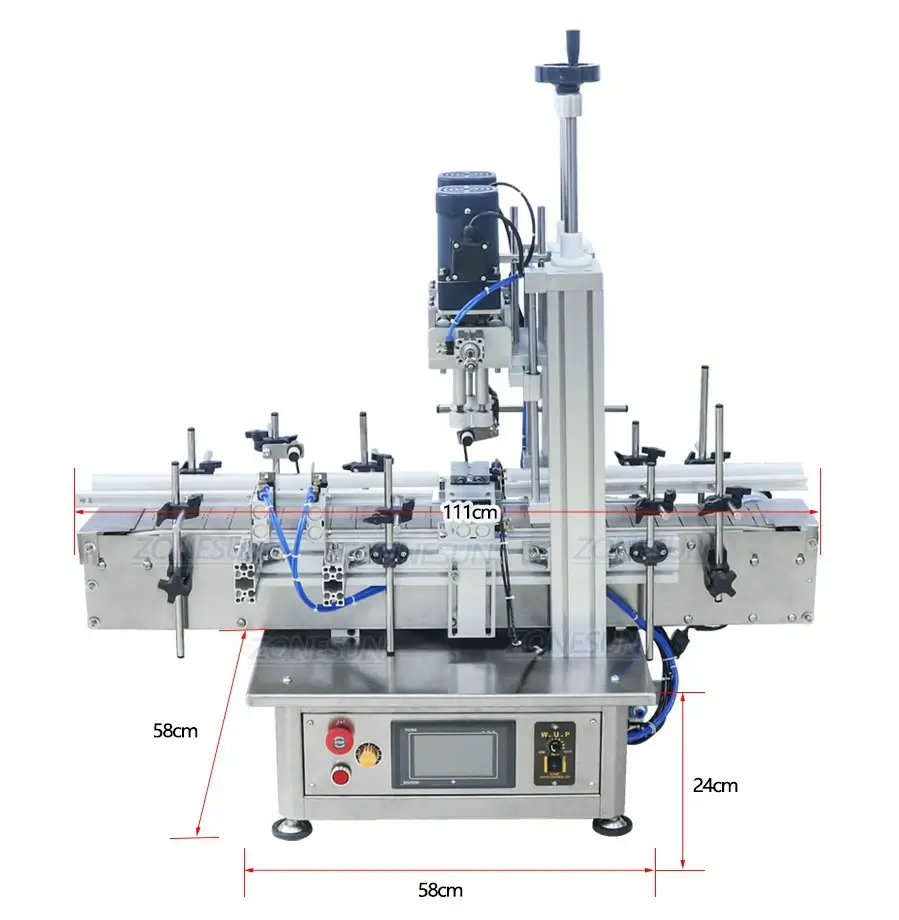

| Working Voltage | AC220V/110V 50- 60HZ |
| Bottle Height | 60-270mm |
| Bottle Caps Diameter | 18 -70mm |
| Working Speed | 20- 40 bottles/minute(depending on bottle and cps) |
| Working Pressure | 0.4-0.6 MPa |

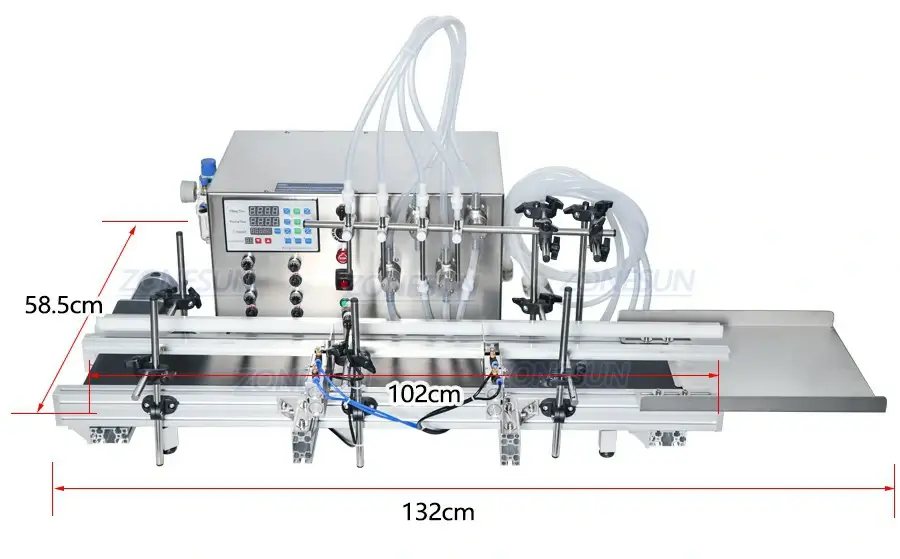

| Machine Size | About 1120* 580* 1110mm |
| Conveyor Length | 1110mm |
| Net Weight | About 65kg |
| Package Weight | About 97.5kg |
| Package Size | About 1160*610*1 140mm |
| Size Of Air Compressor Connector | OD 8mm |

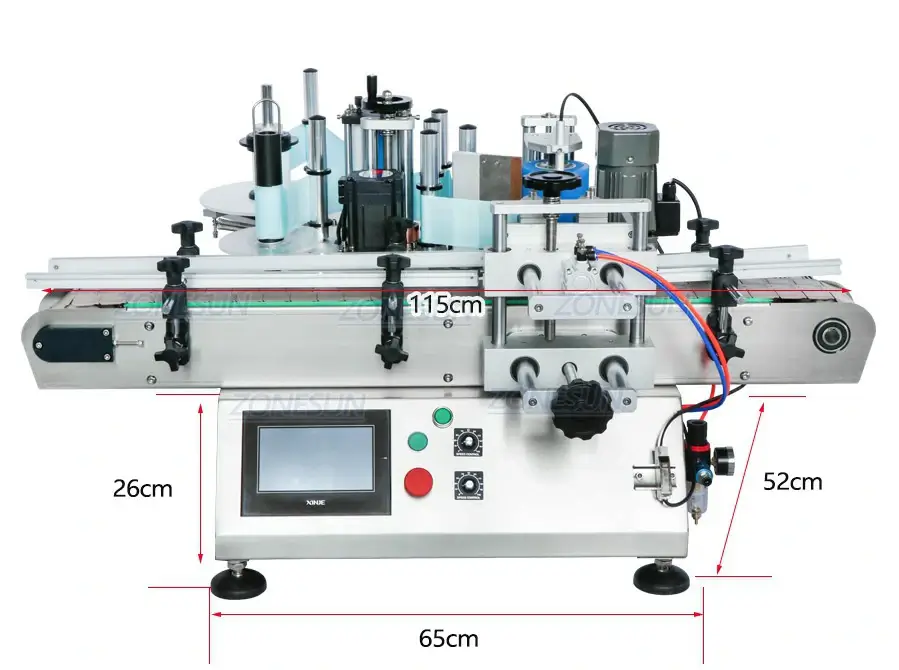

| Voltage | 110V-60HZ / 220V-50HZ |
| Working speed | 20-50ottles/min |
| Suitable labeling size | 15-140mm (W) X 25 300mm (L) |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Suitable bottle diameter | ≤100mm |
| Net weight | About 95.5kg |
| Package Size | About 1270*530*820mm |
| Gross weight | About 125kg |
| Size of air compressor connector | OD 8mm |
