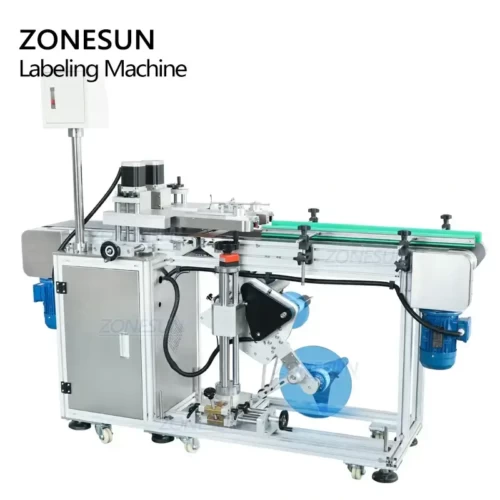

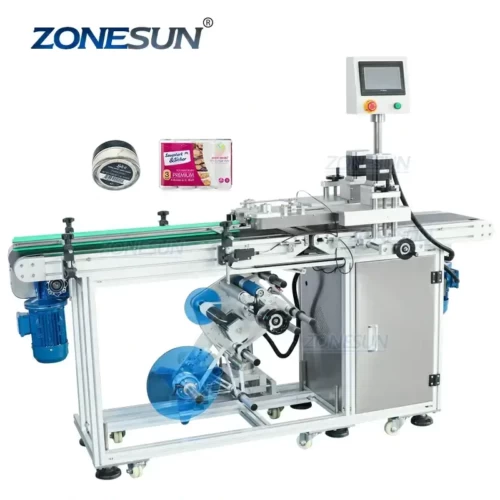

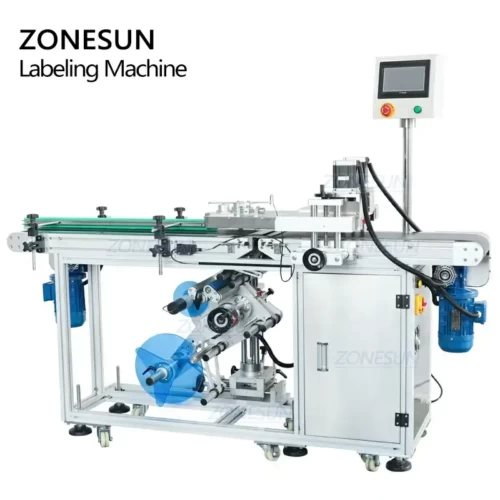

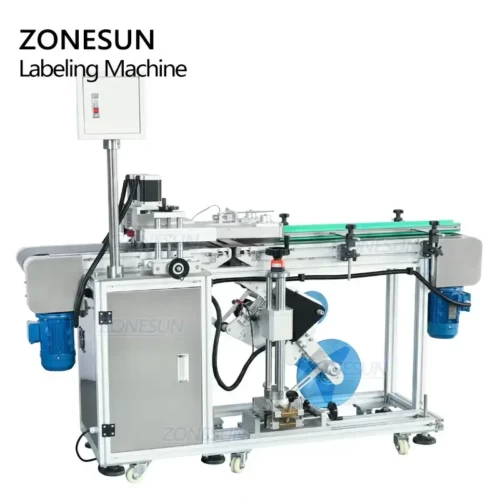

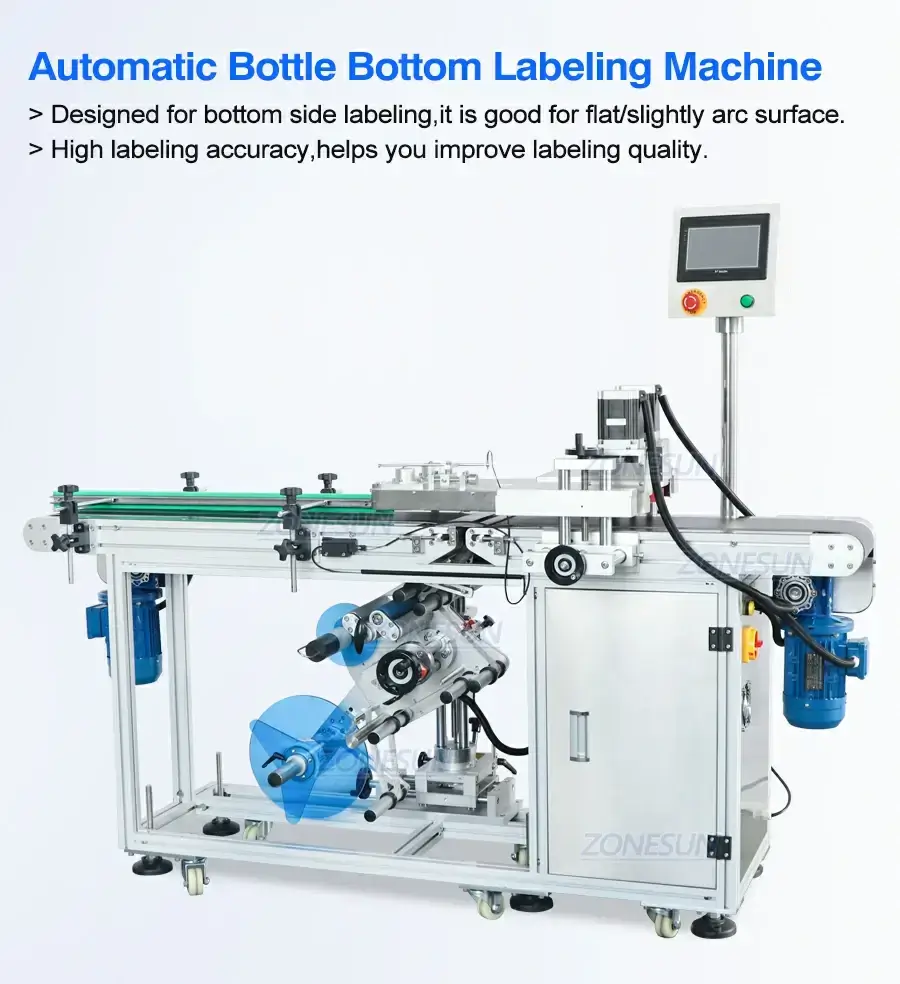

Bottom Surface Labeling Machine
This automatic labeling machine is designed for labeling stickers on the bottom side of bottles.It is not only good for flat surface,but also the slightly arc surface.The high accuracy labeling makes it can be widely used in food,daily chemicals,cosmetics industries.
Share to
Description:
This automatic labeling machine is designed for labeling stickers on the bottom side of bottles.It is not only good for flat surface,but also the slightly arc surface.The high accuracy labeling makes it can be widely used in food,daily chemicals,cosmetics industries.
Parameter:
| Model | ZS-TB125 Labeling Machine |
| Power supply | AC220V 50Hz/60Hz (2000W) |
| Labeling capacity(bottles/min) | 25-150 pieces/min(depends on bottle size) |
| Labeling accuracy(mm) | ±1.0mm |
| Suitable product size | About 40-400mm*40-100mm*30-100mm(L*W*H) |
| Label size(mm) | (L)6-250mm* (W)20-160mm |
| Roll inside diameter(mm) | φ76mm |
| Roll outside diameter(mm) | φ280mm |
| Conveyor Size | 200*1900mm(W) |
| Machine size | About (L)1900*(W)800*(H)1550(mm) |
| Machine weight | About 217kg |
| Packing Size | About (L)2050*(W)950*(H)1715(mm) |
| Package weight | About 315.5kg |
