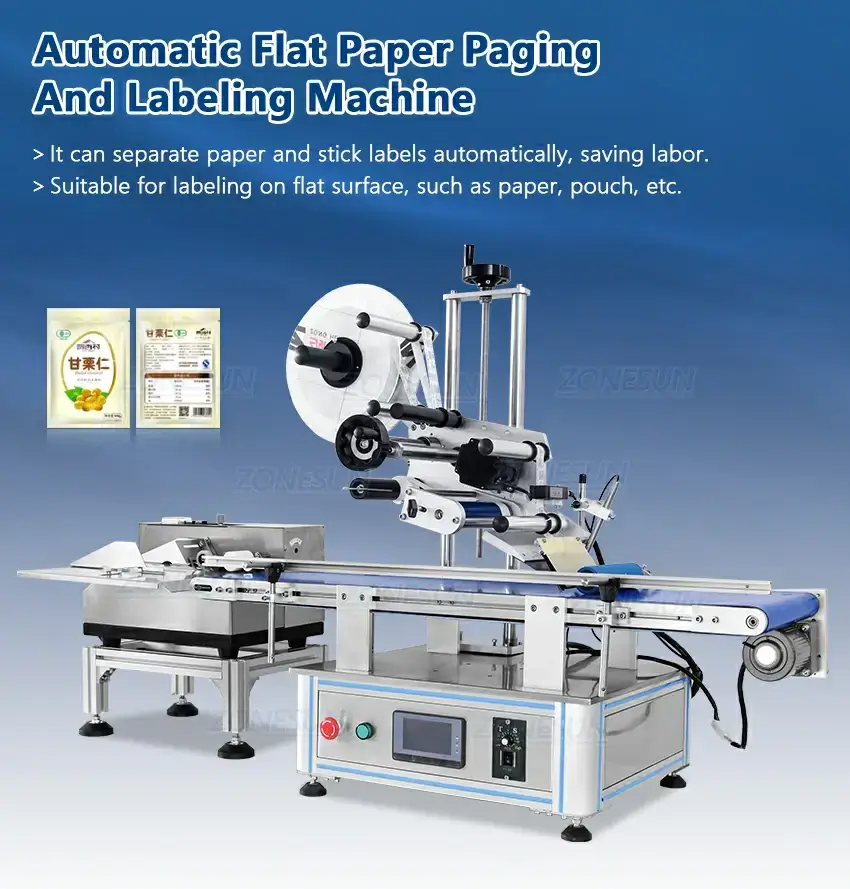

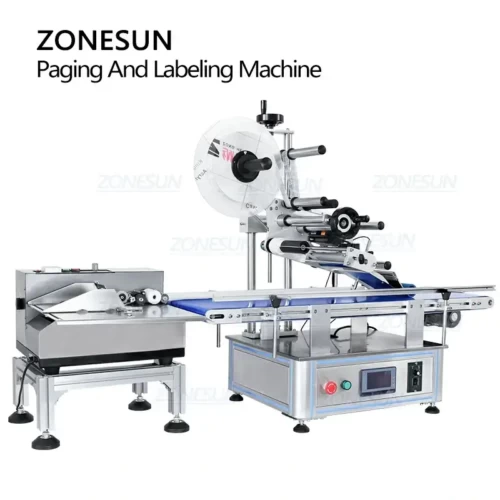

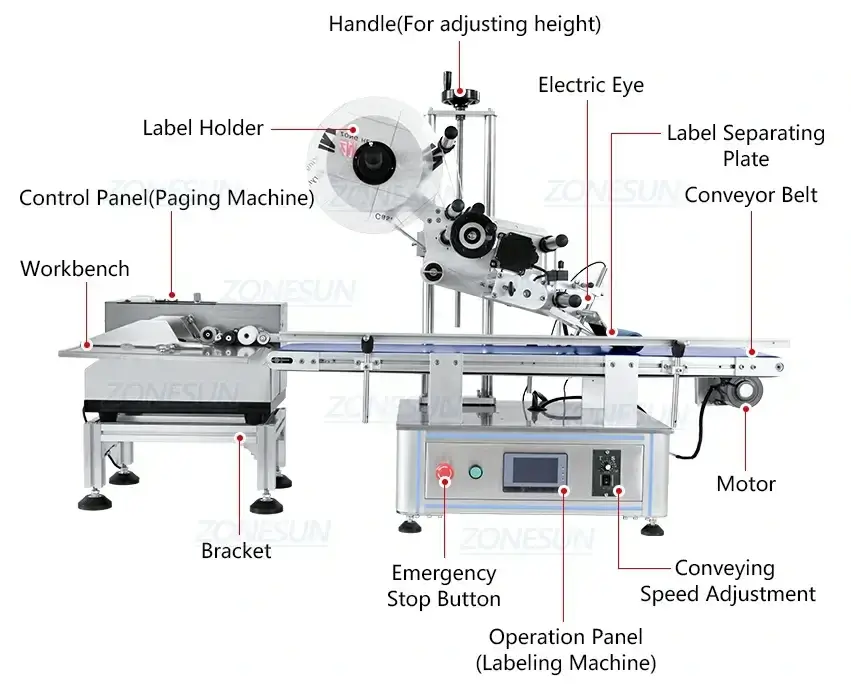

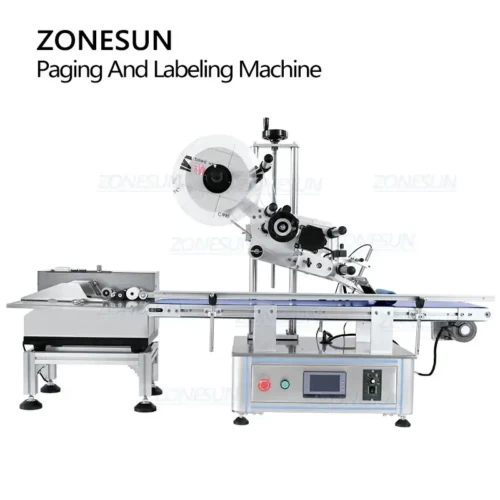

Surface Labeling Machine With Paging Machine
This machine can be used for separating paper and labeling on it.The machine is in small size and can work automatically,saving working space and improving efficiency.It can be widely used in pharmaceutical,cosmetic,food industries.
Share to
Description:
This machine can be used for separating paper and labeling on it.The machine is in small size and can work automatically,saving working space and improving efficiency.It can be widely used in pharmaceutical,cosmetic,food industries.
Parameter:
| Machine model | ZS-TB150PBF |
| Voltage | 110V-60HZ/220V-50HZ |
| Power | 980W |
| Working speed | 20-120 pieces/min(Labeling machine) |
| 12.5m/min (Pagling machine) | |
| Labeling accuracy | ±1mm |
| Applicable Product Size | ≤ 300mm(W)*500mm(H) |
| Suitable labeling Size | ≤250mm(W) |

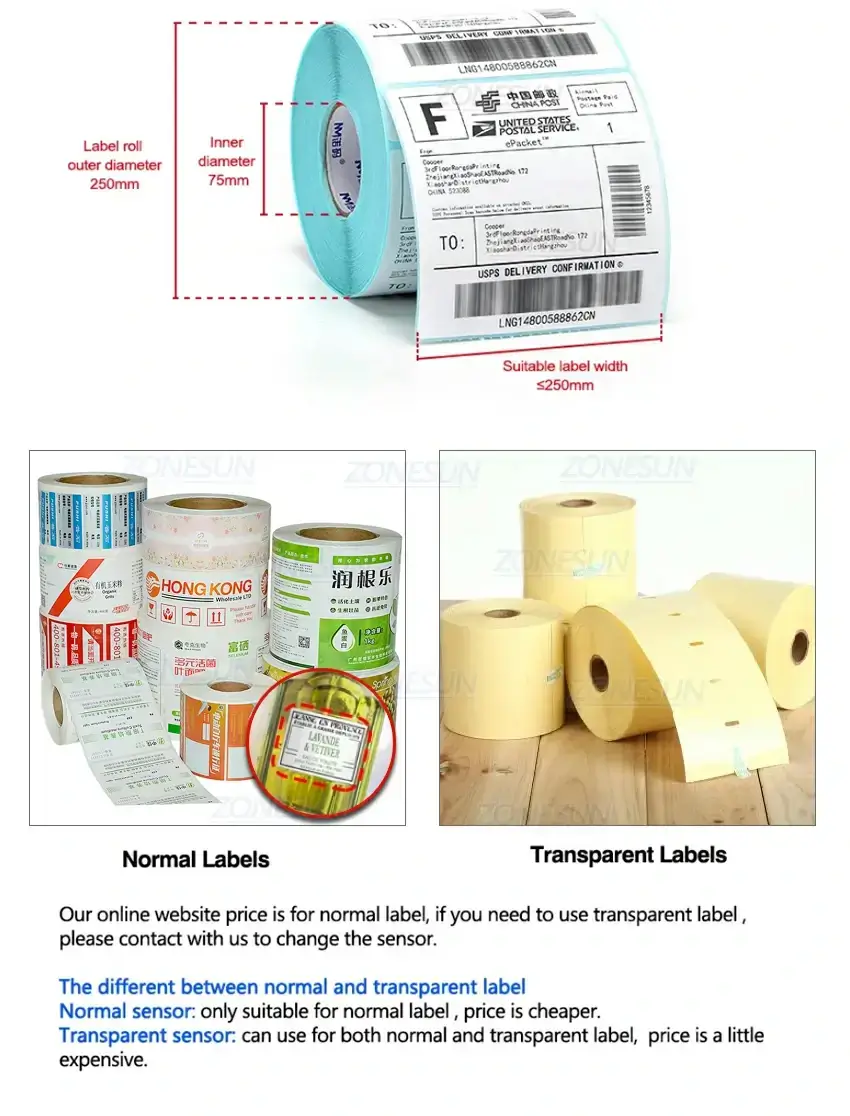

| Roll inside diameter(mm) | φ75mm |
| Roll outside diameter(mm) | φ250mm |
| Conveyor size | About 1100*300mm(L*W) |
| Machine size | About 1130*1050*500mm(Labeling machine) |
| About 440*465*300mm(Pagling machine) | |
| Machine weight | About 74kg(Labeling machine)+24kg(Paging machine) |
| Package size | About 1370*620*630mm(Labeling machine) |
| About 570*510*340mm(Pagling machine) | |
| Package weight |
About 103kg(Labeling machine)+26kg(Paging machine)
|
