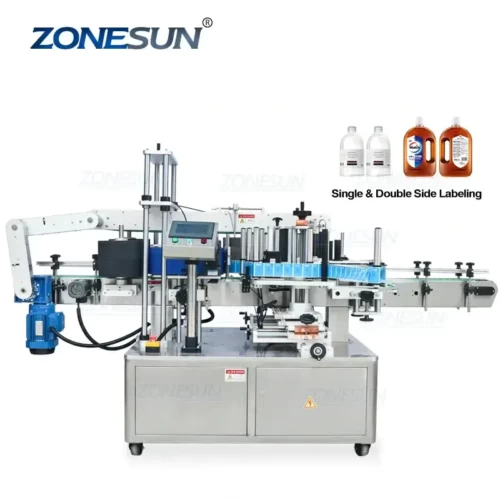

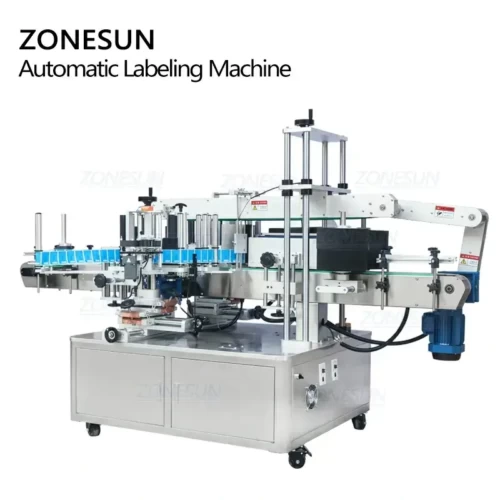

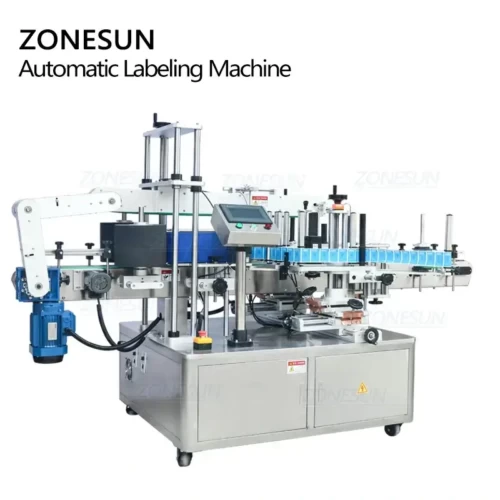

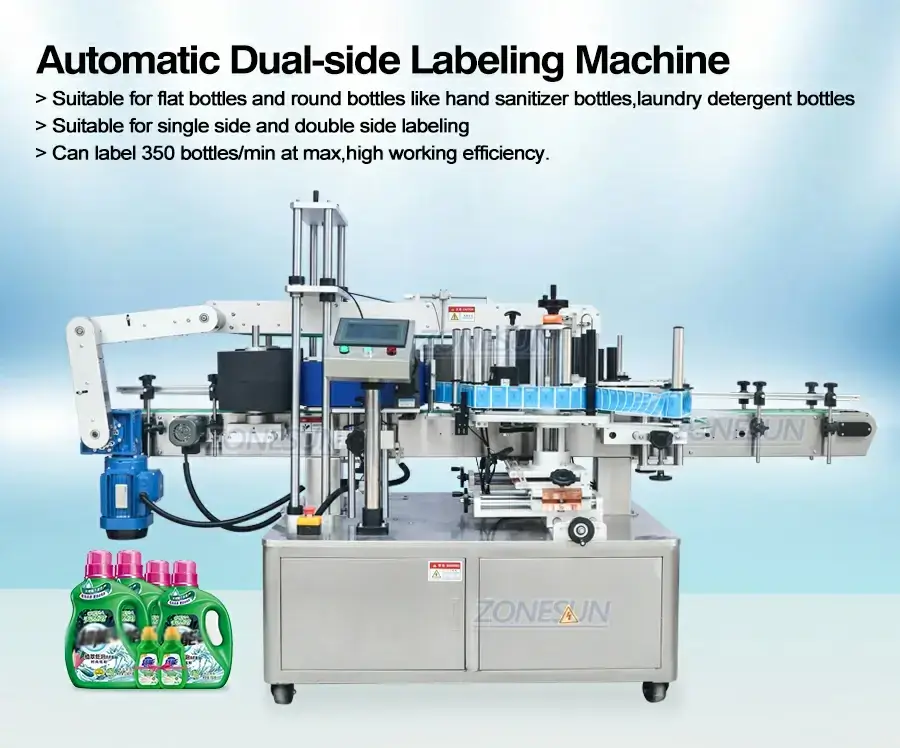

Double Size Labeling Machine
This machine is not only suitable for flat bottles,it is also suitable for round bottles.It can realize single side or double side labeling by replacing the round bottle labeling structure.This widen the application.This high quality machine can be used with automatic filling machine,capping machine to realize the full packaging process.
Share to
Description:
This machine is not only suitable for flat bottles,it is also suitable for round bottles.It can realize single side or double side labeling by replacing the round bottle labeling structure.This widen the application.This high quality machine can be used with automatic filling machine,capping machine to realize the full packaging process.
Parameter:
| Machine Model | ZS-TB300A | ZS-TB300B |
| Labeling Capacity(pcs/min) | 60-350PCS /min(depends on bottle size) | |
| Labeling Material Thickness | 20-120mm | |
| Labeling Material Height | 30-350mm | |
| Label Size | (L)25-300mm*(H)15- 200mm | |

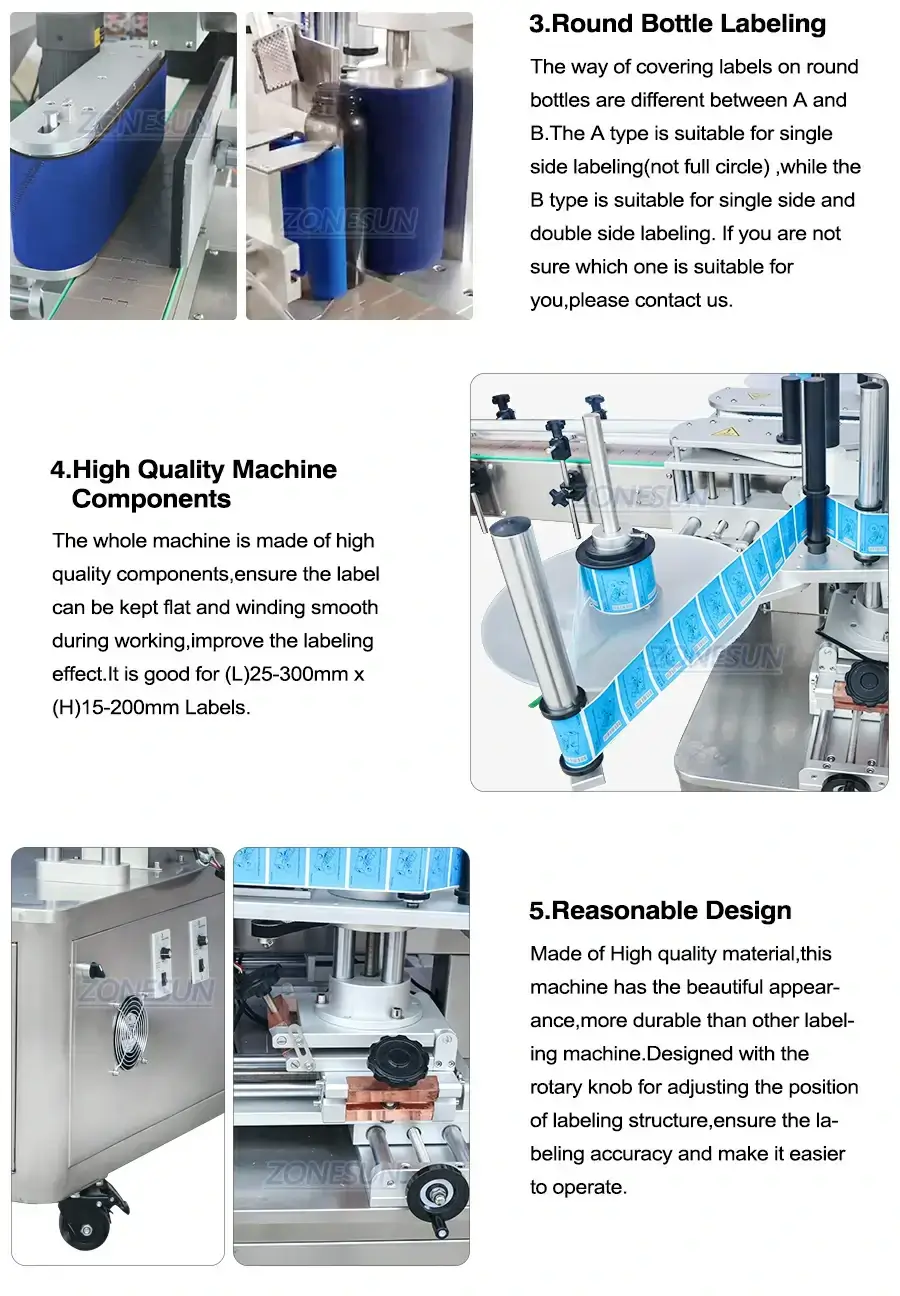

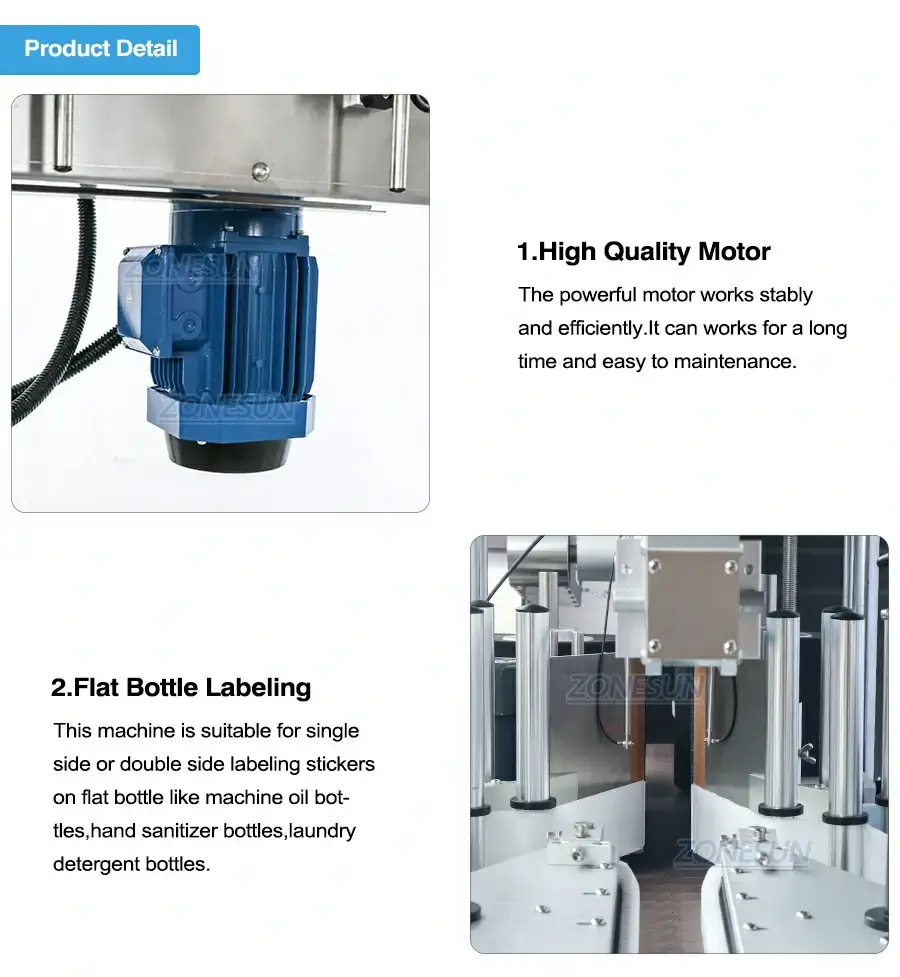

| Round Bottle | Single Side | Single & Double Side |
| Flat Bottle | Double Side | |
| Roll Inside | φ76mm | |
| Roll Outside Diameter | φ350mm | |
| Power supply | AC220V 50Hz/60Hz 1500W | |
| Machine Szie | About 2120*940*1500mm | |
| Packing Size | About 2850*1300*1900mm | |
| Net weight/Gross weight | About 450kg/650kg | |
