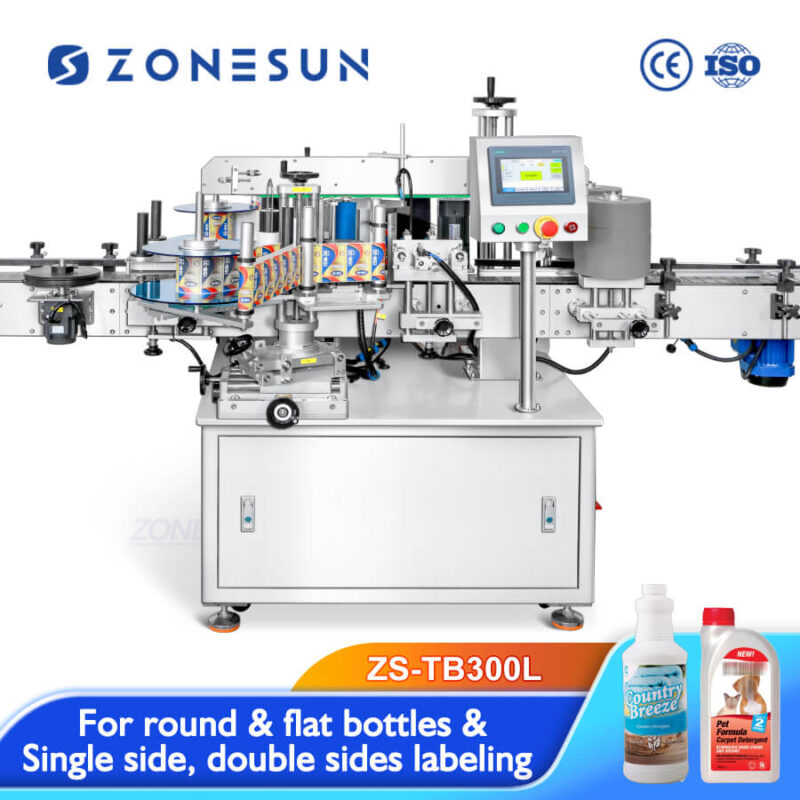

ZONESUN ZS-TB300L Round Flat Square Bottle Labeling Machine
$8,999.00
Share to
Produst Description:

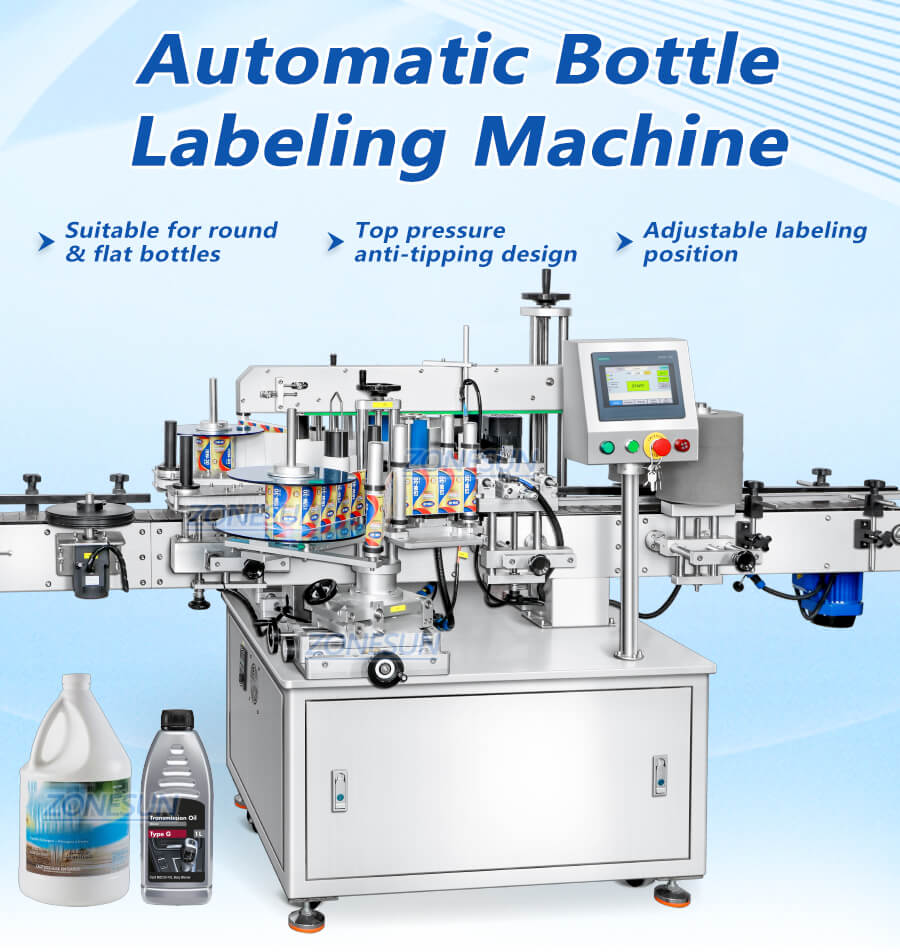

This labeling machine applies labels to round bottles and flat bottles (dual use). It features a top pressure system to keep bottles upright and a hand wheel adjustment for precise labeling accuracy.It is ideal for daily chemical, food, beverage industries.
Product Parameters:
| Machine model | ZS-TB300L |
| Voltage | 110V-60HZ/220V-50HZ |
| Power | 2 KW |
| Working speed | About 30-100 bottles/min |
| Labeling accuracy | ±2 mm |

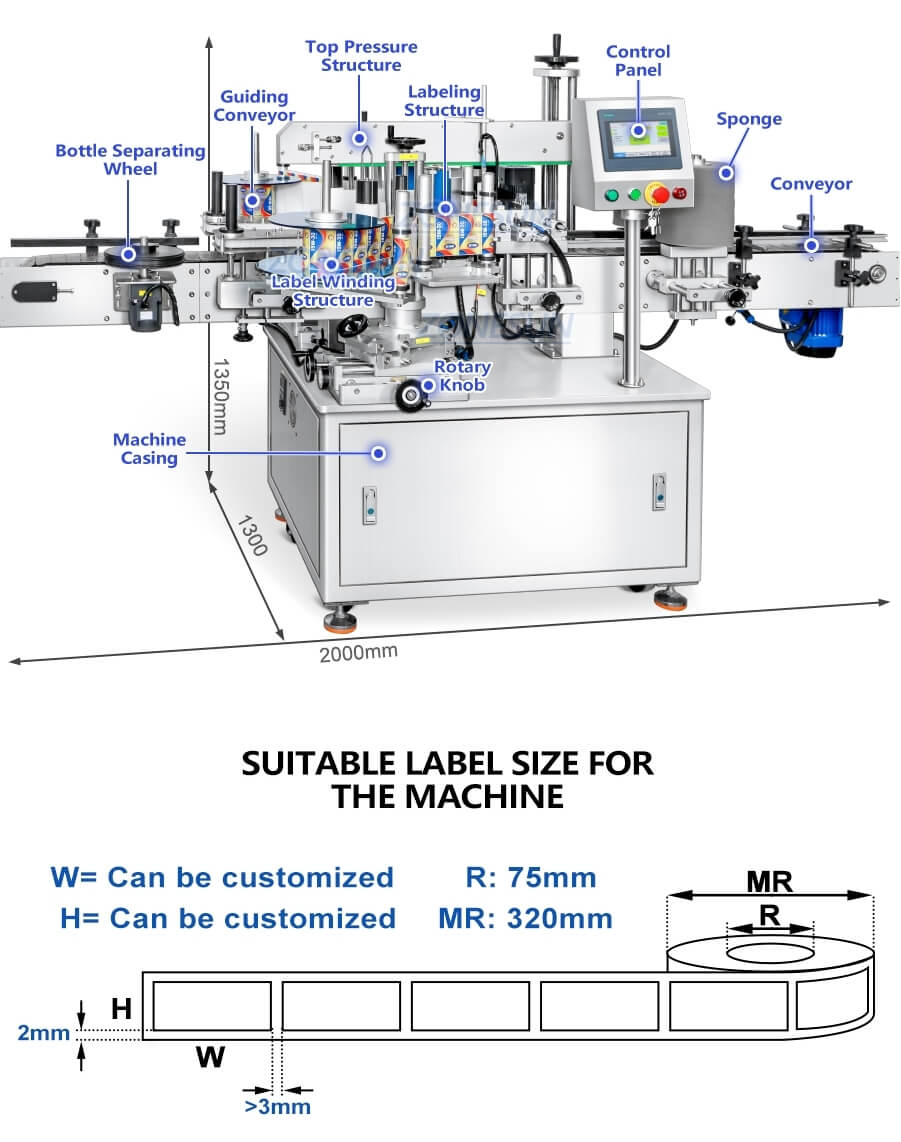

| Suitable labeling Size | ≤150 mm(W)(Can be customized ) |
| Roll inside diameter(mm) | Φ75 mm |
| Roll outside diameter(mm) | Φ320 mm |
| Suitable bottle diameter | φ≤100 mm H≤350 mm |
| Conveyor size | About 2500*100 mm |
| Machine size | About 2000*1300*1350 mm(L*H*W) |
| Machine Configuration | ||
| Name | Brand | Origin |
| PLC | Delta | Taiwan,China |
| Touch Screen | Siemens | Germany |
| Power Switch | Meanwell | China |
| Intermediate Relay | Chint | China |
| Circuit Breaker | Chint | China |
| Contactor | Chint | China |
| Air Switch | Chint | China |
| Relay | Chint | China |
| Push Button Switch | Chint | China |
| Emergency Stop Switch | Chint | China |
| Indicator Light | Chint | China |
| Photoelectric Sensor | Panasonic | Japan |
| Solenoid Valve | Chint | China |
| Oil-Water Separator | Chint | China |
| Cylinder | Airtac | Taiwan,China |
Product Details:

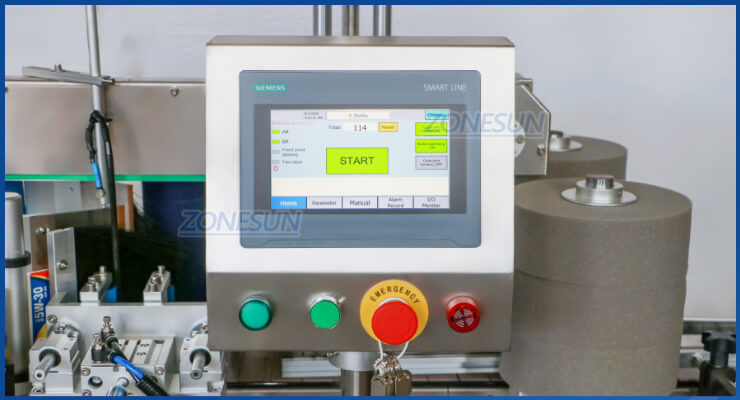

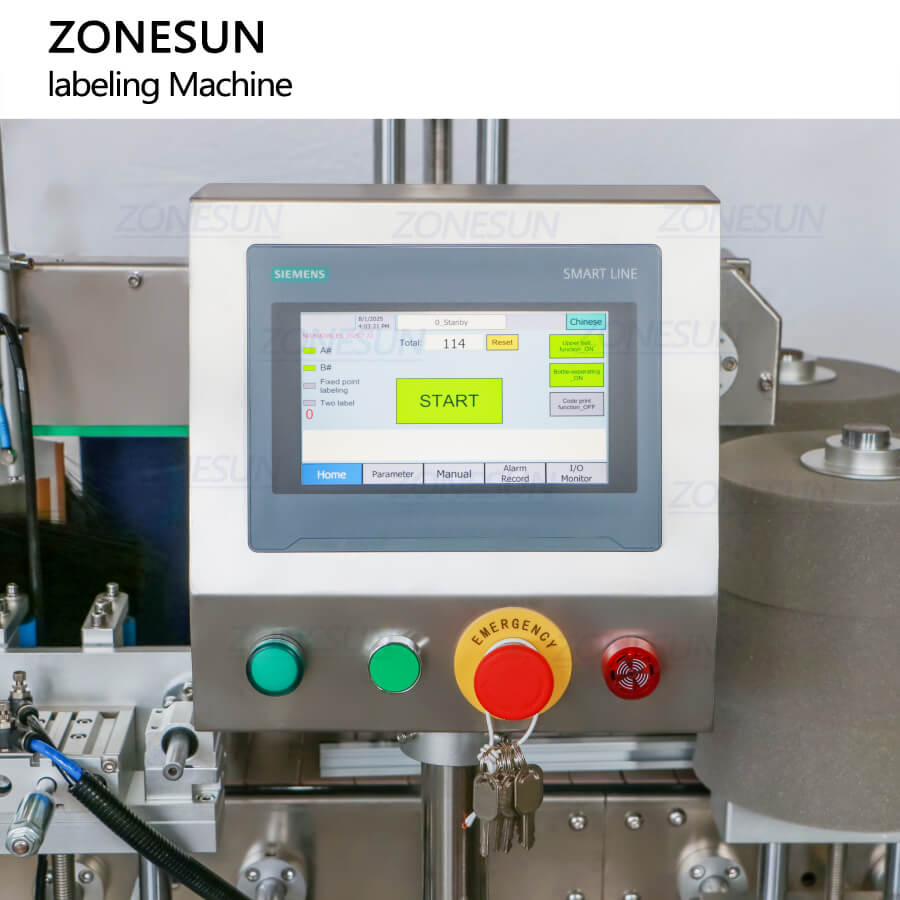

Control Panel
The intuitive control panel makes machine operation simple and efficient, allowing easy adjustment of labeling parameters.

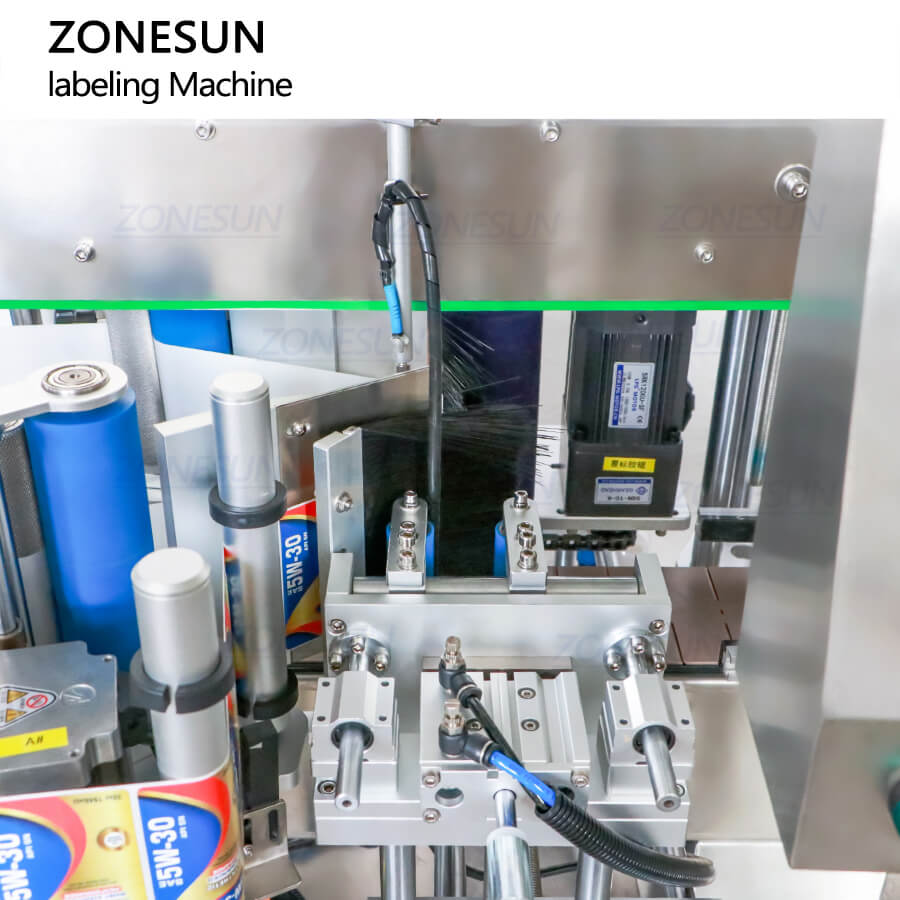

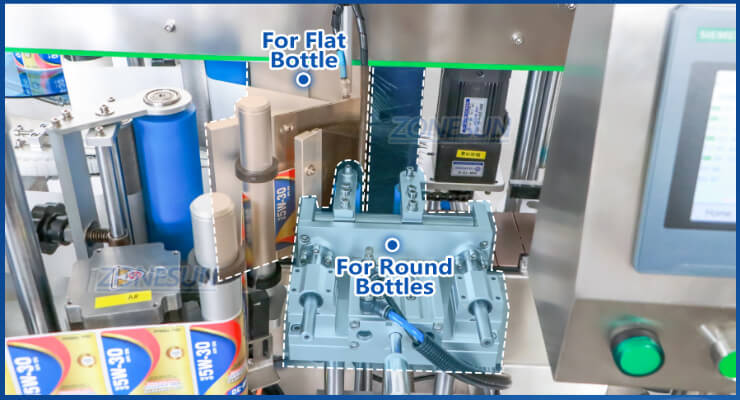

Labeling Structure
Equipped with a precise label structure, it ensures smooth label dispensing and accurate placement on round and flat bottles.

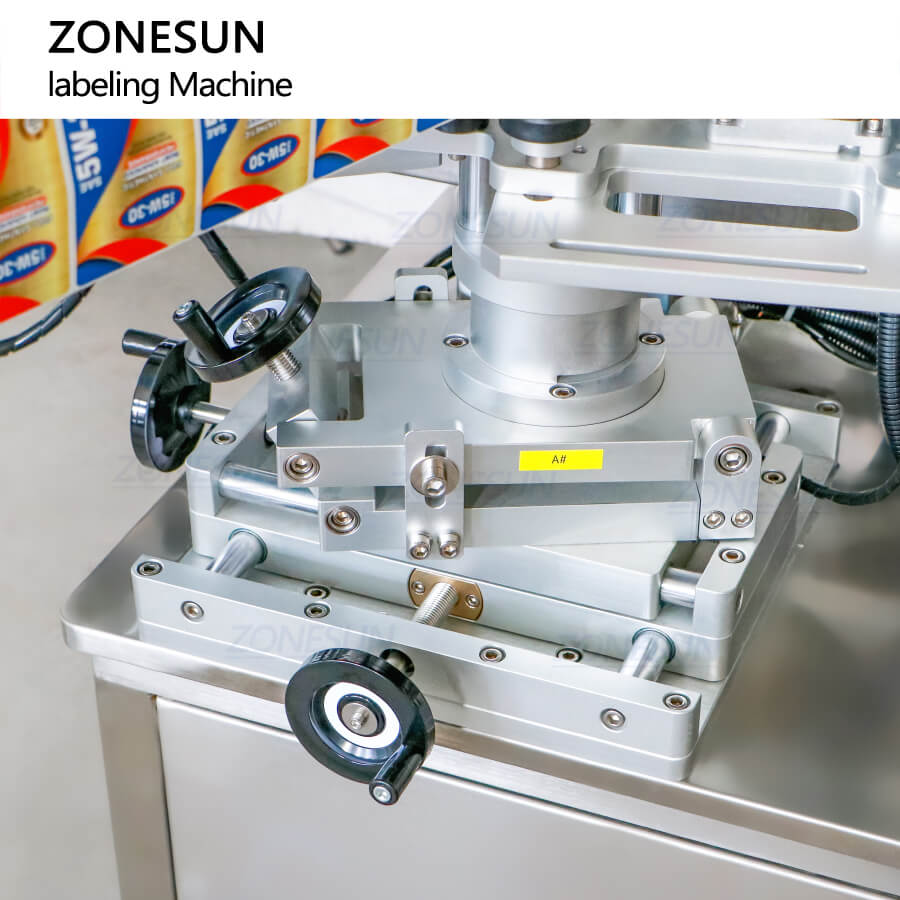

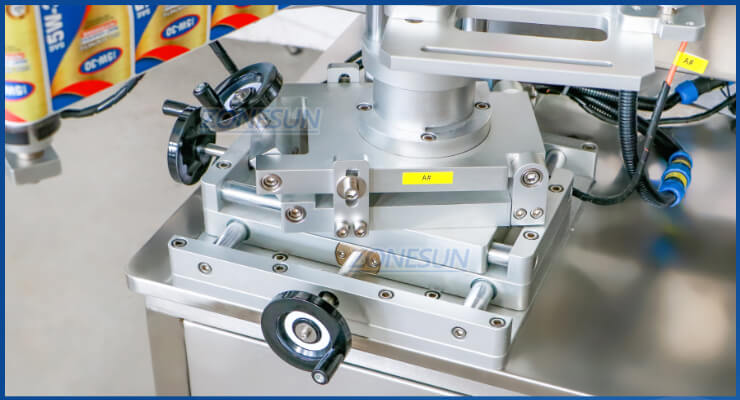

Adjustment Hand Wheel
The hand wheel allows fine-tuning of label dispensing positions, ensuring consistent accuracy.

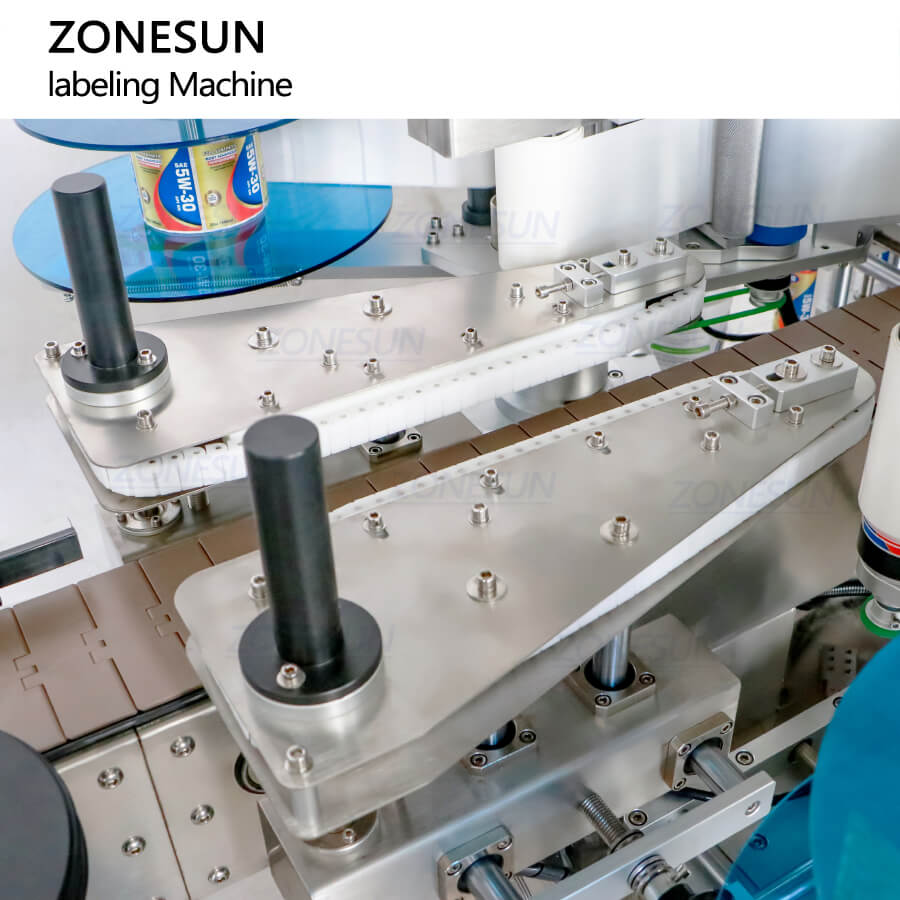

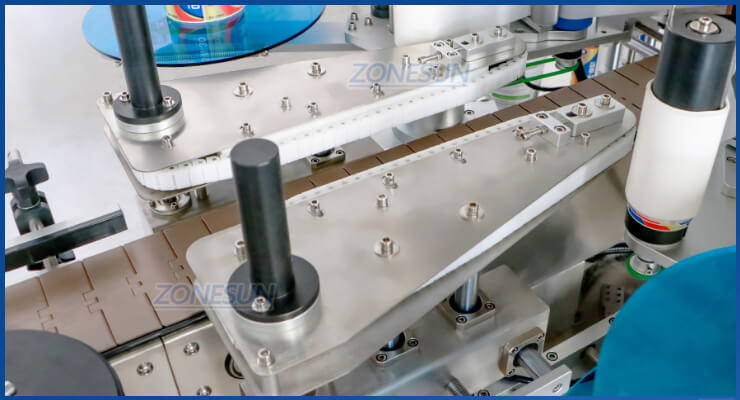

Bottle Guiding Strutcure
This is adjustable according to bottle diameter, it can clamp and transport bottles, ensure smooth conveying.

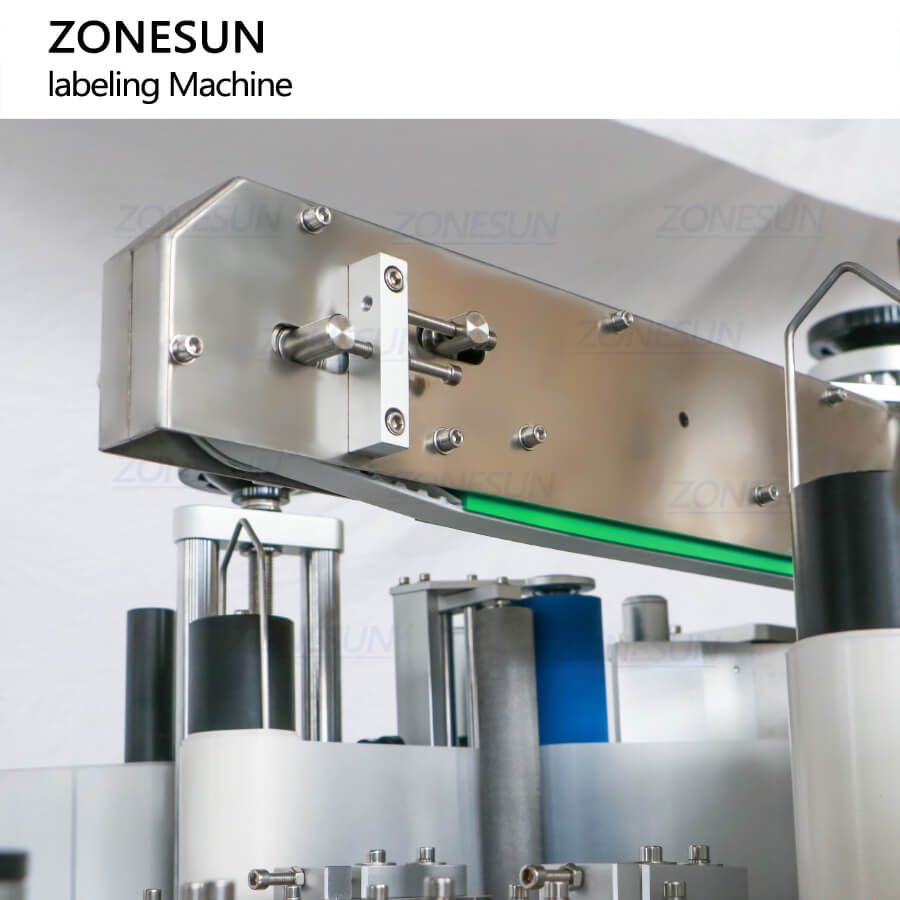

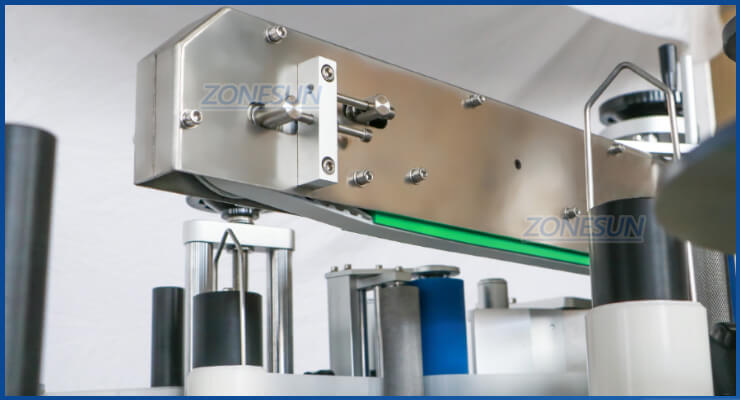

Top Pressure Structure
This can compress bottles and prevent from falling down during labeling and conveying.

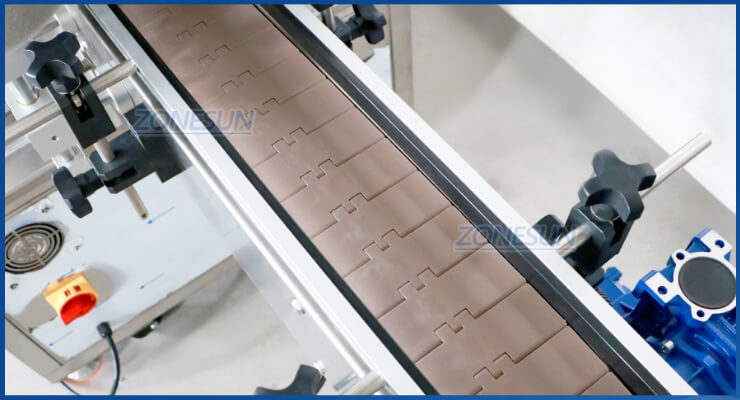

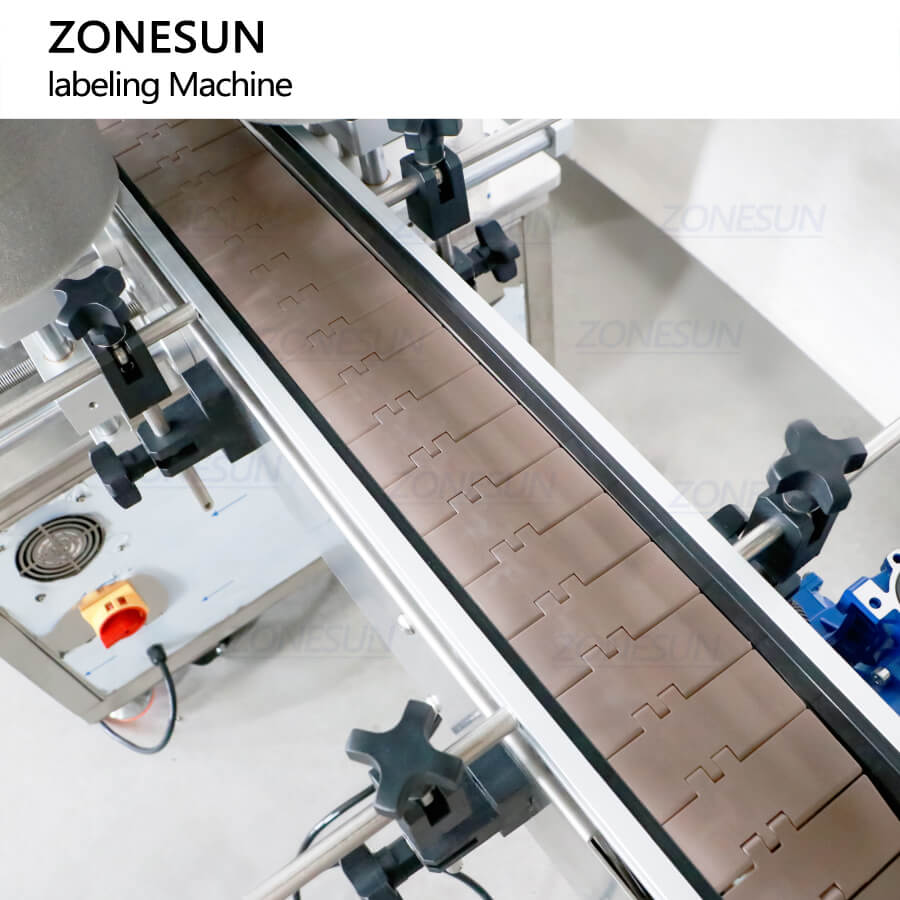

Chain Plate Conveyor
The durable conveyor system ensures stable bottle transport , length and width of conveyor are adjustable.
