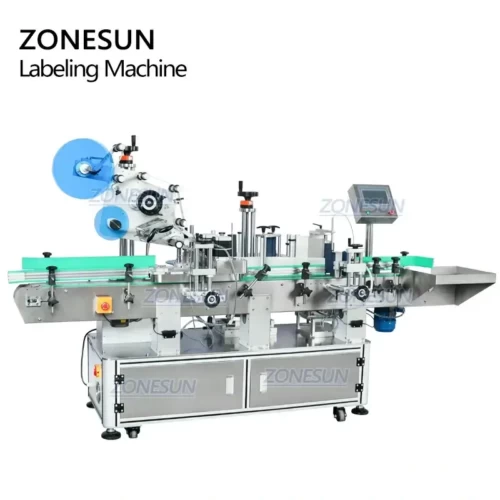

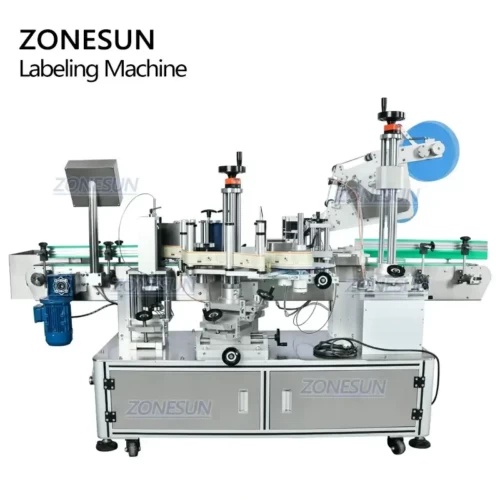

Top Label Applicator Machine

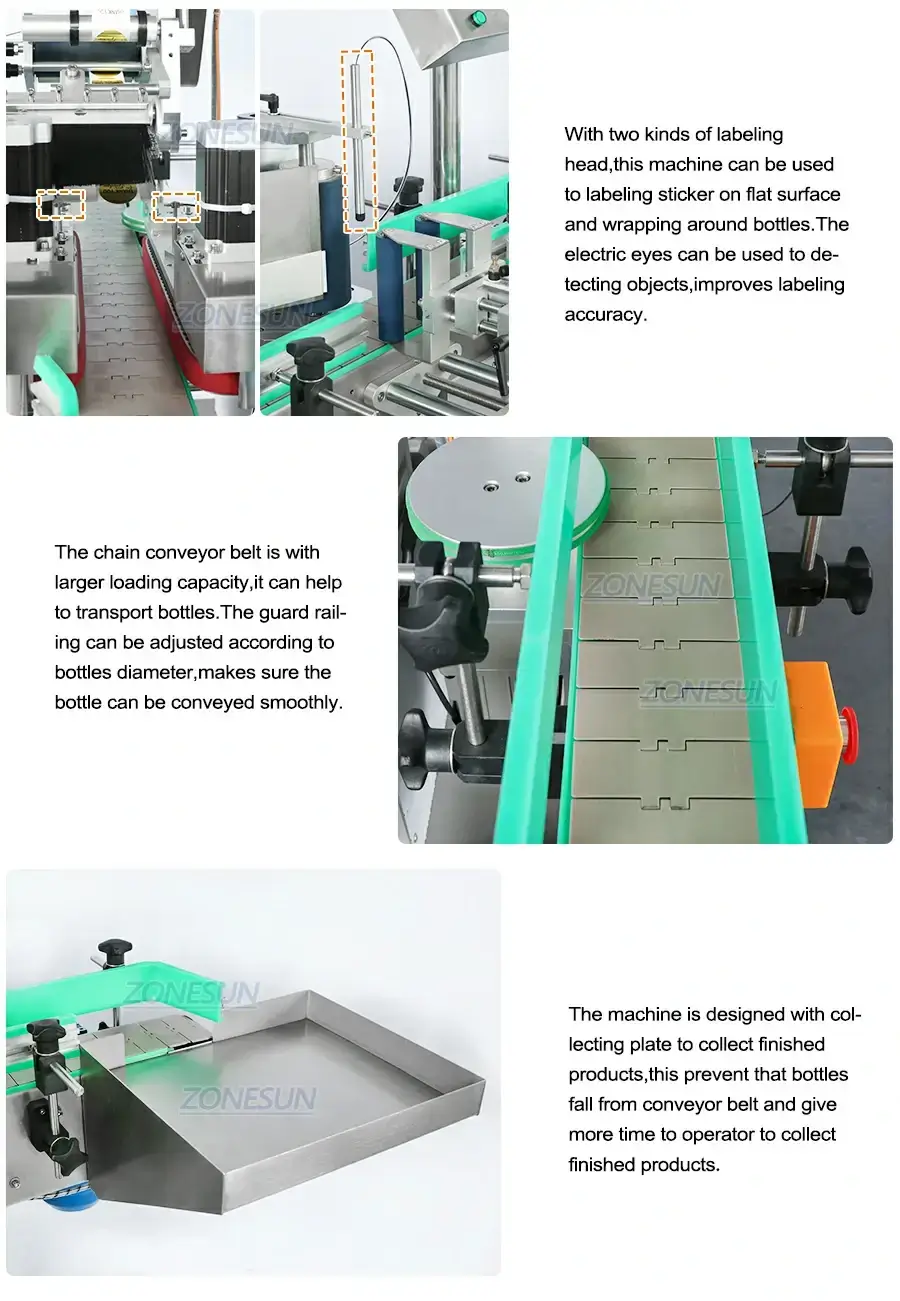

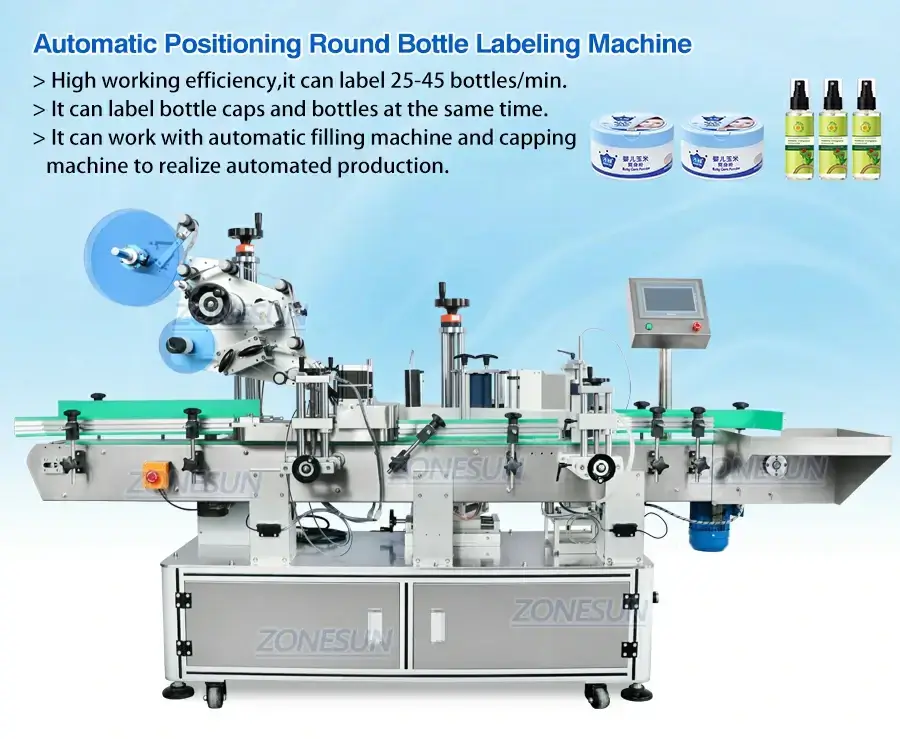

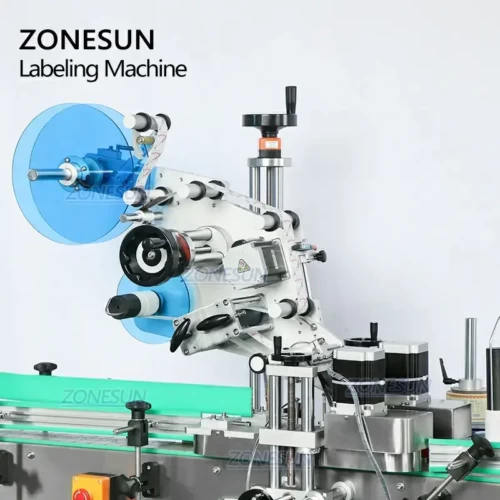

This automatic labeling machine is with two labeling heads,one for flat surface,one for round bottles.It is normally used for labeling bottle caps and bottles at the same time.This machine is widely used in food,daily chemicals,cosmetics industries.
Share to
Description:

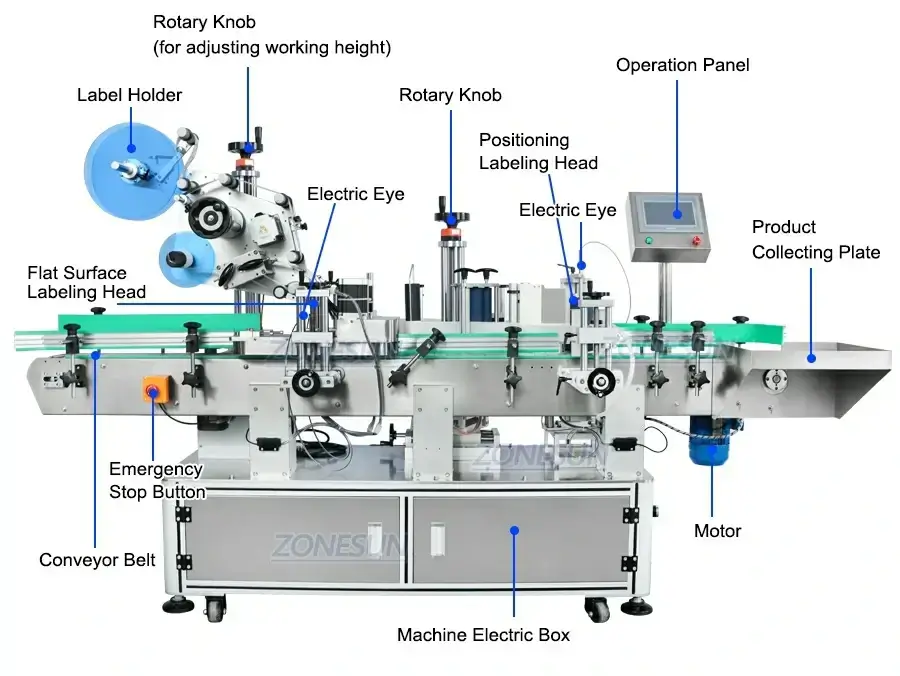

This automatic labeling machine is with two labeling heads,one for flat surface,one for round bottles.It is normally used for labeling bottle caps and bottles at the same time.This machine is widely used in food,daily chemicals,cosmetics industries.
Parameter:
| Model | ZS-TB822D Labeling Machine |
| Power Supply | AC110V/220V 50Hz/60Hz 5000W |
| Labeling Capacity(bottles/min) | 25-45 bottles/min(depends on bottle size) |
| Labeling Accuracy(mm) | ±1.0mm |
| Suitable Bottle Diameter | φ25-100mm |

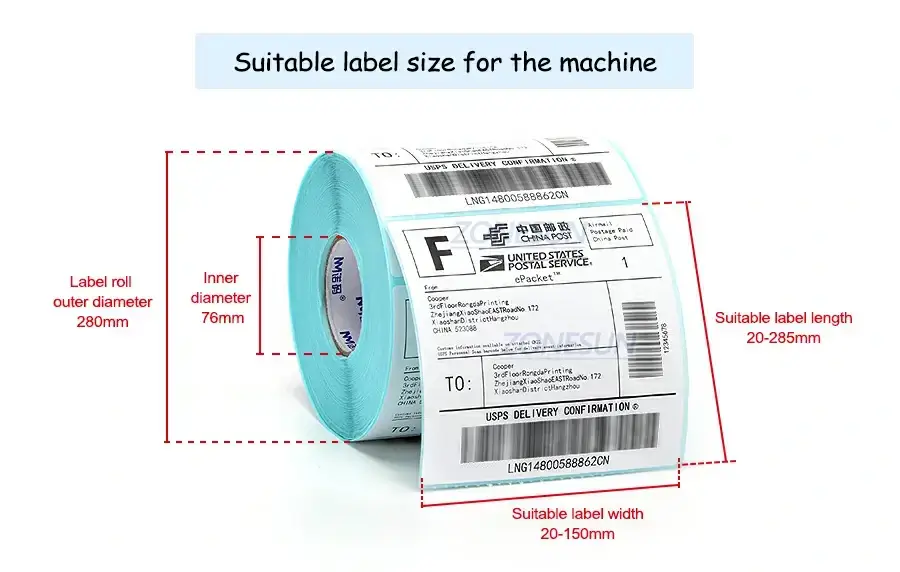

| Label Size(mm) | (L)20mm-285mm* (H)20-150mm |
| Roll inside Diameter(mm) | φ76mm |
| Roll outside Diameter(mm) | φ280mm |
| Conveyor Size | 100*2380mm(W) |
| Machine Size | About 2550*1080*1590mm |
| Package Size | About 2550*1140*1685mm |
| Net Weight/Gross Weight | About 378kg/523kg |
