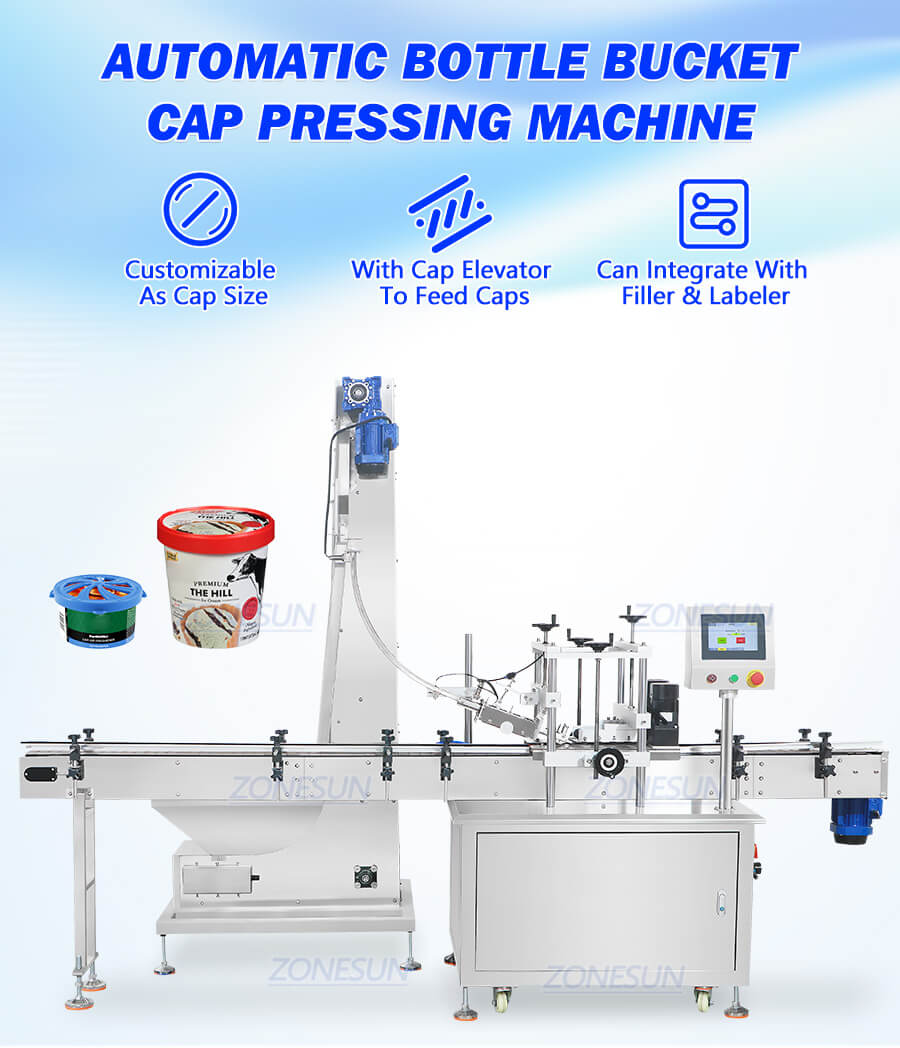

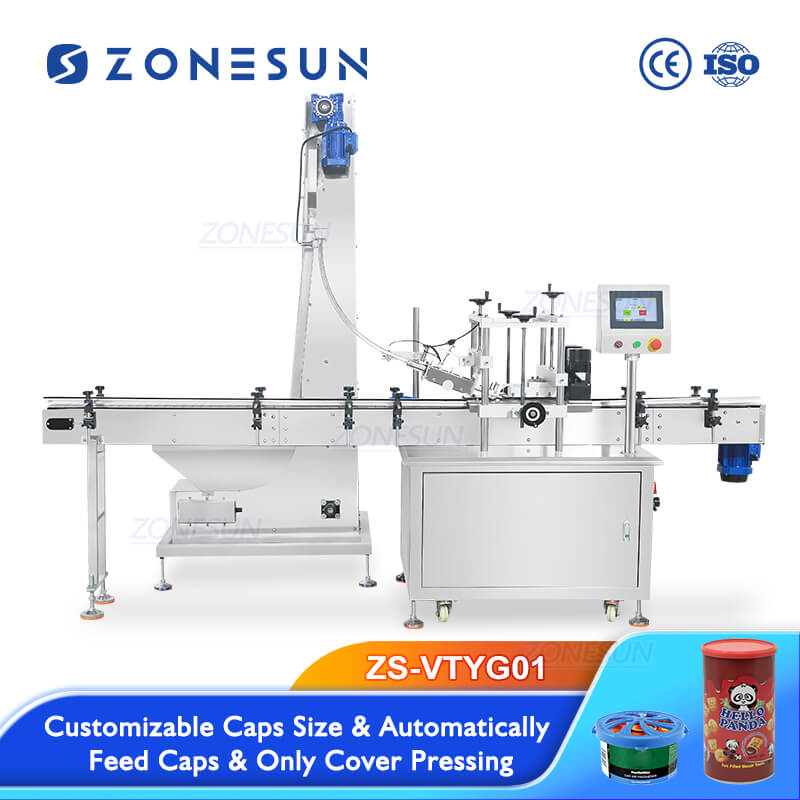

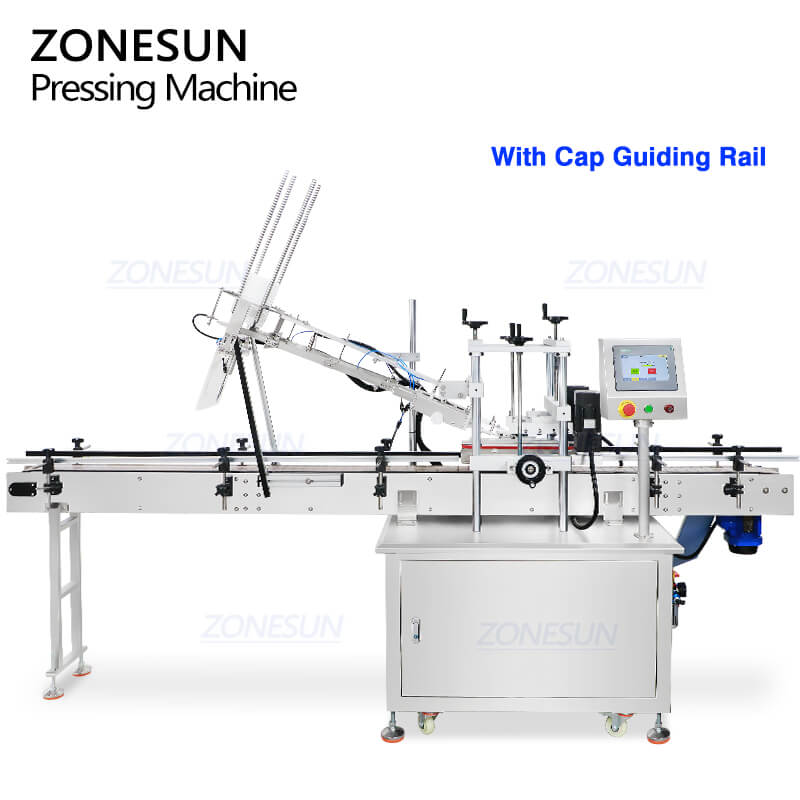

ZONESUN ZS-VTYG01 Dust-proof Lid Capping Pressing Machine
This automatic cap pressing machine is equipped with cap elevator, feeding caps in time and applying pressure to the cap, forcing caps onto the bottle, jars or cans and creating a secure seal. It is suitable for packaging yogurt, snacks food, fruit cans etc.
Price range: $5,199.00 through $9,299.00
Share to
Produst Description:
This automatic cap pressing machine is equipped with cap elevator, feeding caps in time and applying pressure to the cap, forcing caps onto the bottle, jars or cans and creating a secure seal. It is suitable for packaging yogurt, snacks food, fruit cans etc.
Product Parameters:
| Machine model | ZS-VTYG01 |
| Power supply | 110/220V 50-60HZ 1KW |
| Working capacity | 20-60BPM |
| Suitable bottle height | 50-150mm(Customizable) |
| Suitable cap diameter | 50-110mm(Customizable) |
| Working air pressure | 0.5-0.8MPa |

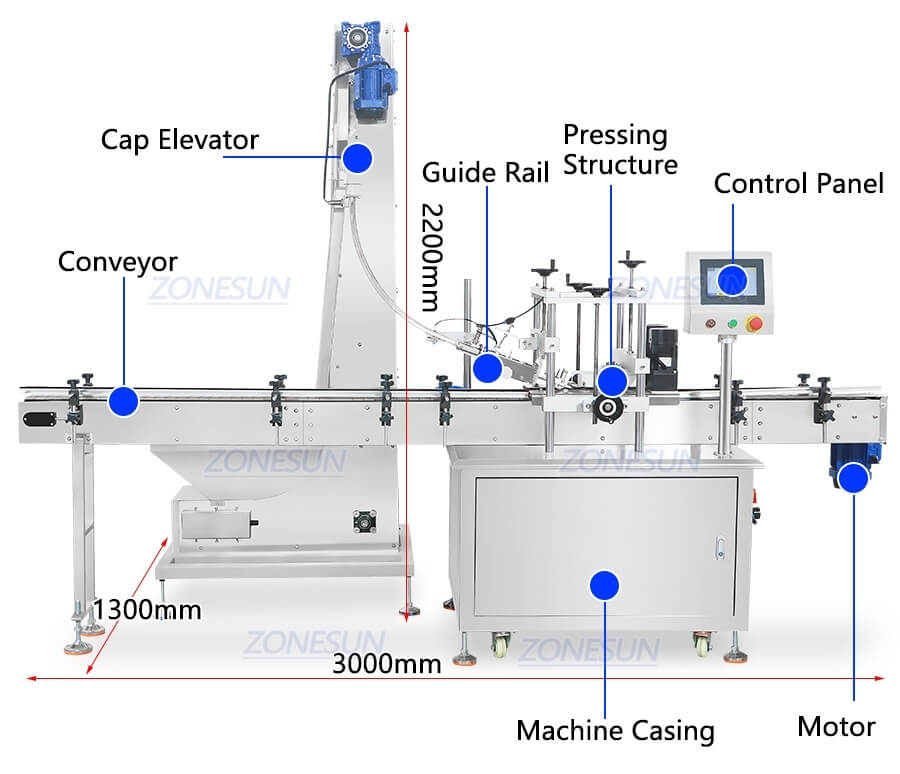

| Machine size | About 3000*1300*2200(L*W*H) |
| Machine weight | About 300kg |
| Package size | About 2150*850*1500mm(Main Machine)
About 1100*1050*2300mm(Cap Elevator) |
| Package weight | About 260kg+230kg=490kg |
Product Details:

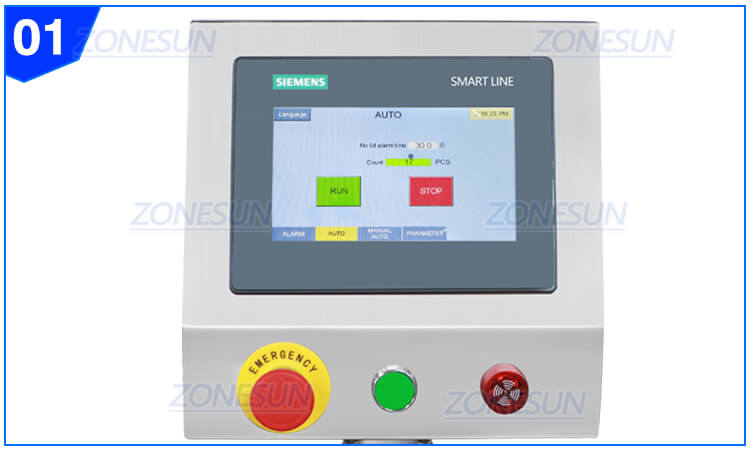

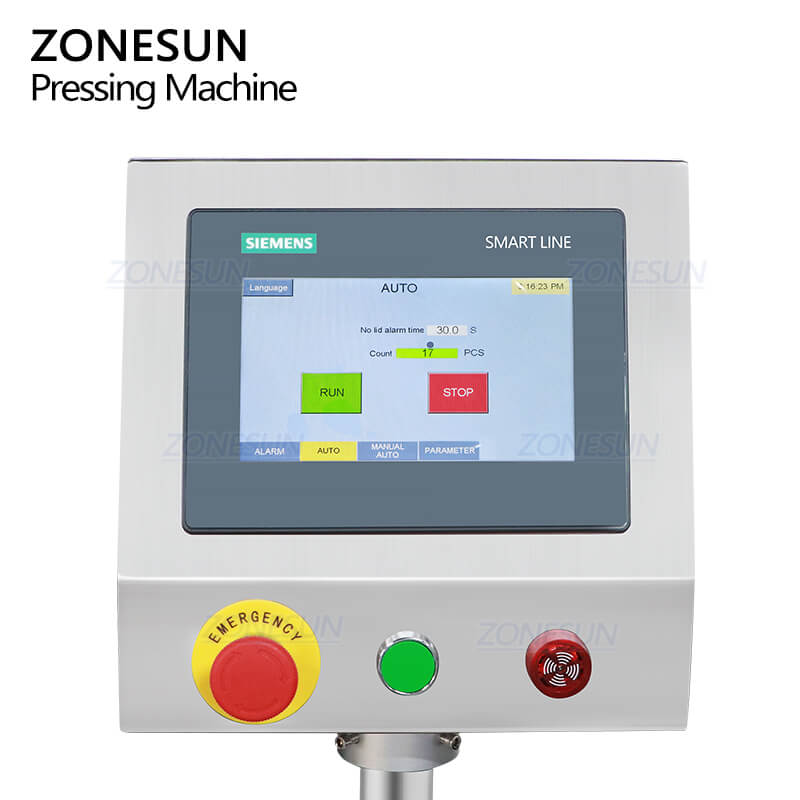

Control Panel
With branding touch screen control panel, parameter setting is more intuitively.Customizable operation language.

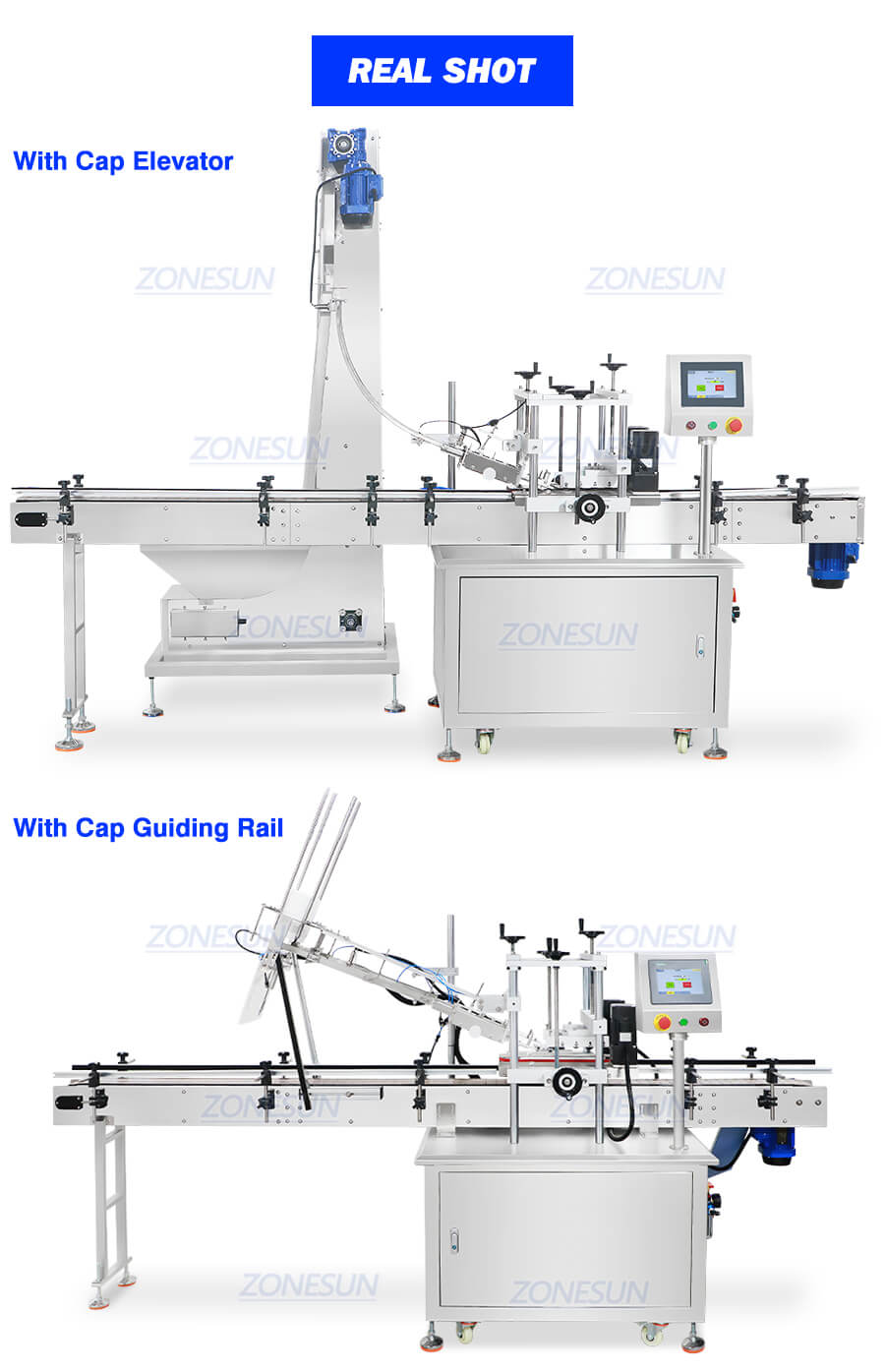

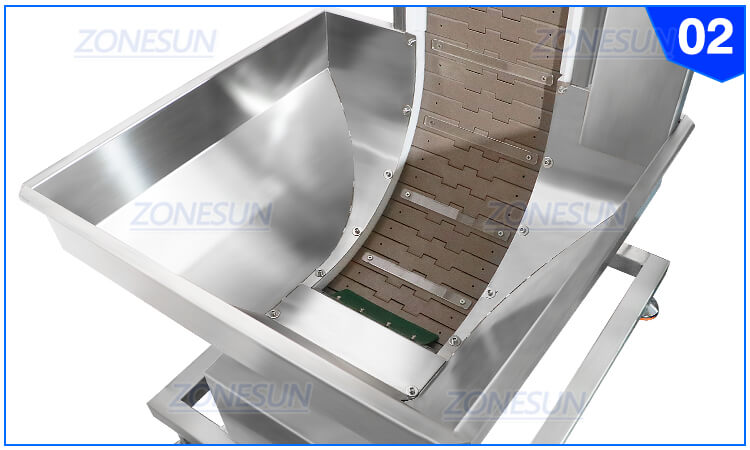

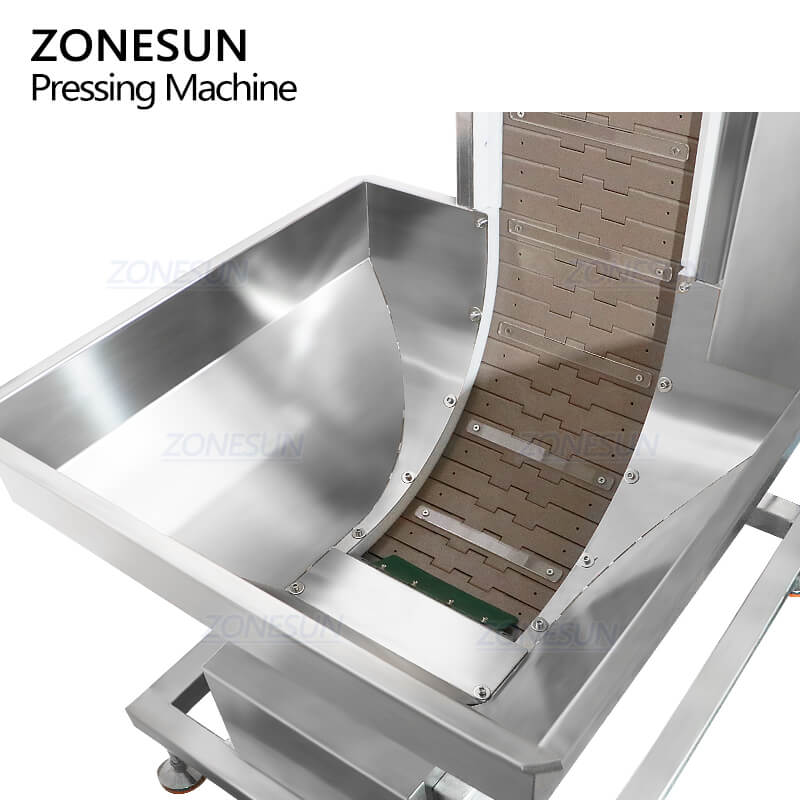

Cap Elevator
Designed for supplying bottle caps in time, it is customizable according to cap size.

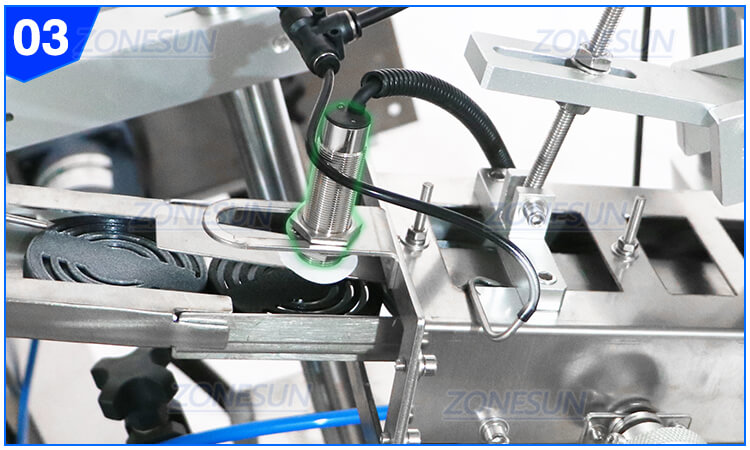

Electric Eye
This can detect caps, send the signal to system and control automated cap supplying.

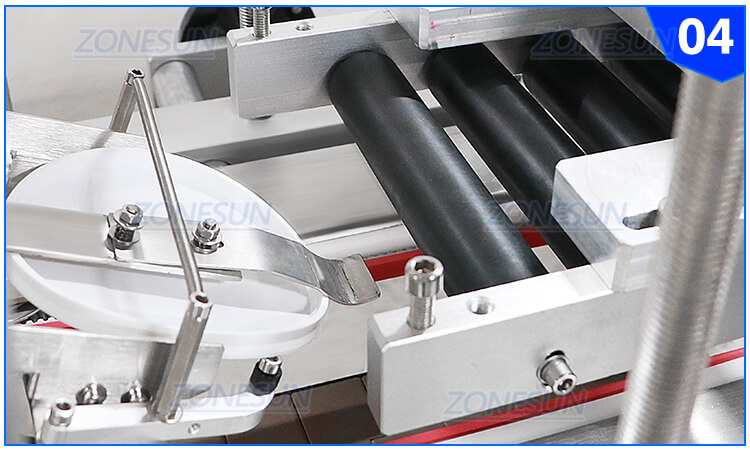

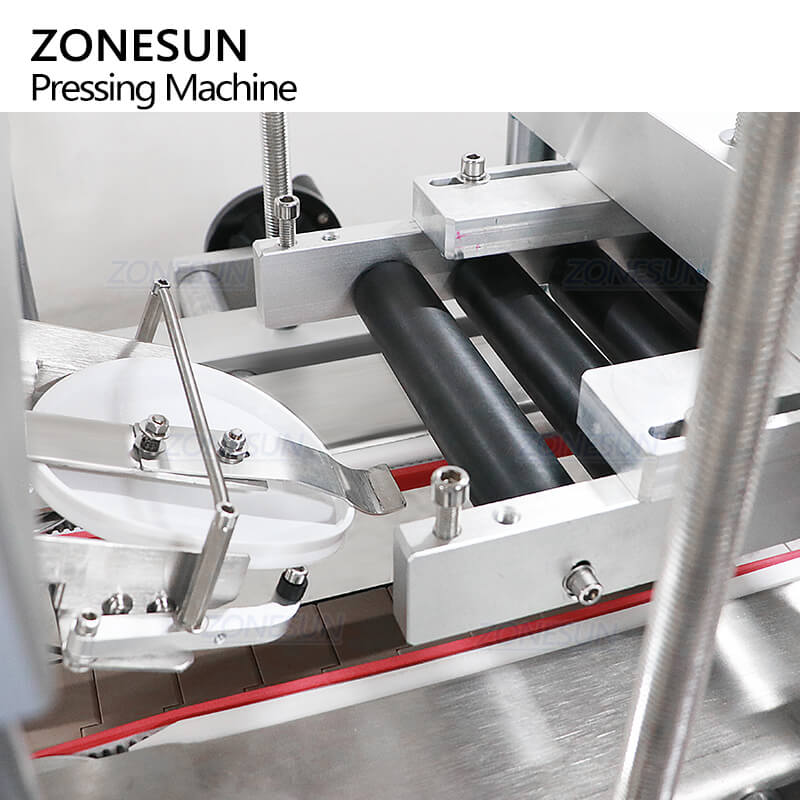

Cap Pressing Structure
Using multiple rollers to apply even pressure to the lids, ensures a secure seal.Working height is adjustable through rotary knob.

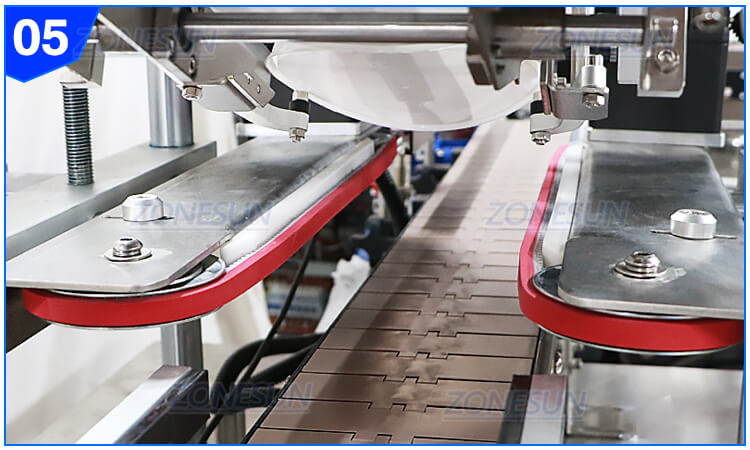

Clamping Structure
It is adjustable according to container diameter, ensure caps can be placed precisely onto containers.

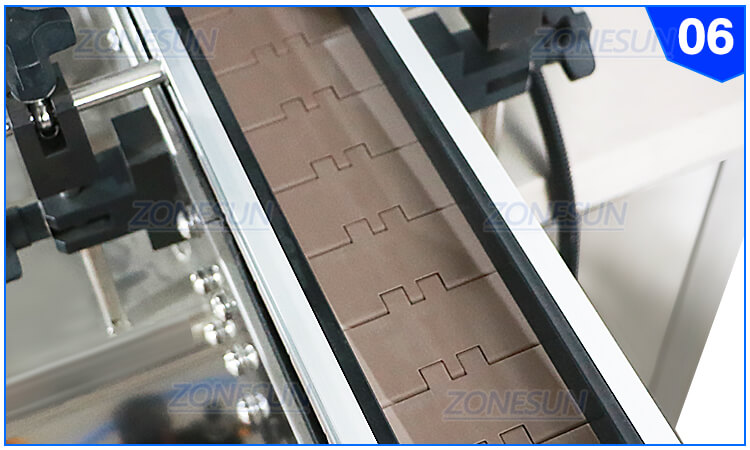

Chain Conveyor
It has large weight capacity, length and width are customizable as production need.
