Automatic High-speed Servo Filling And Capping Machine

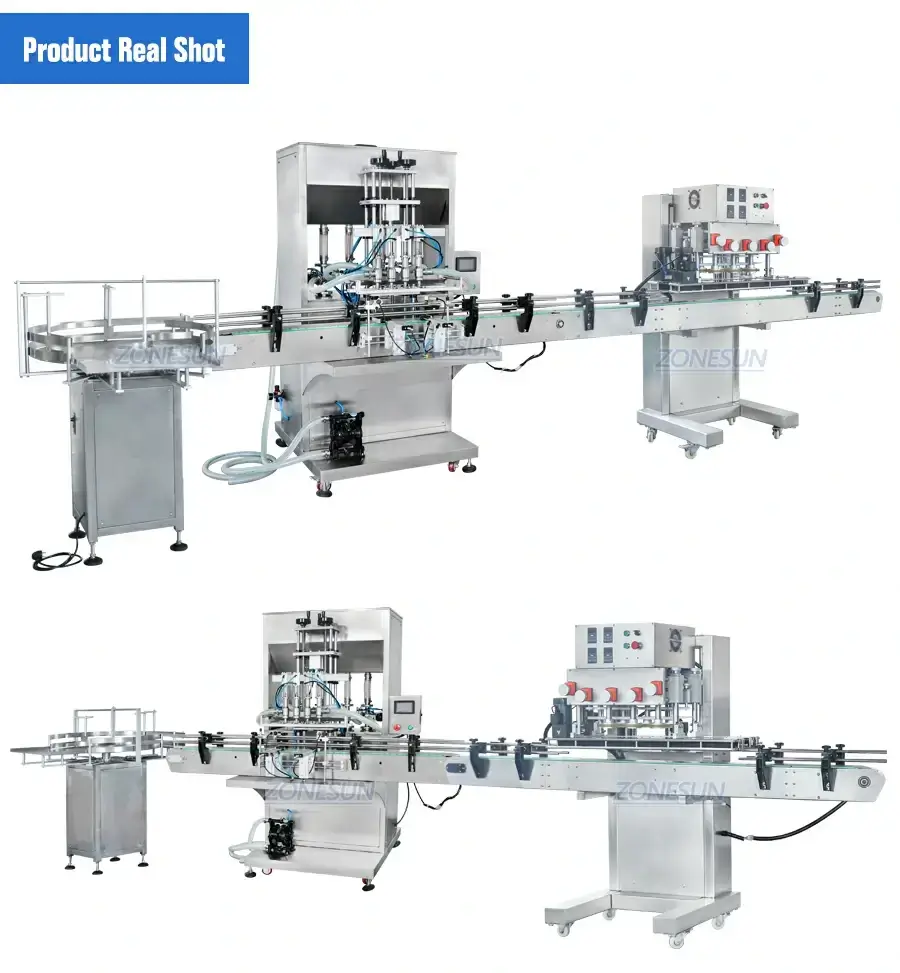

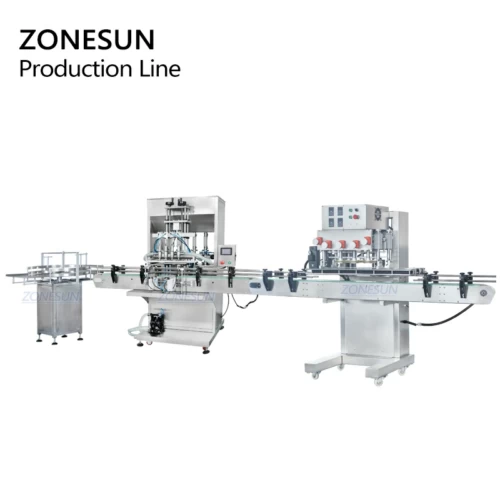

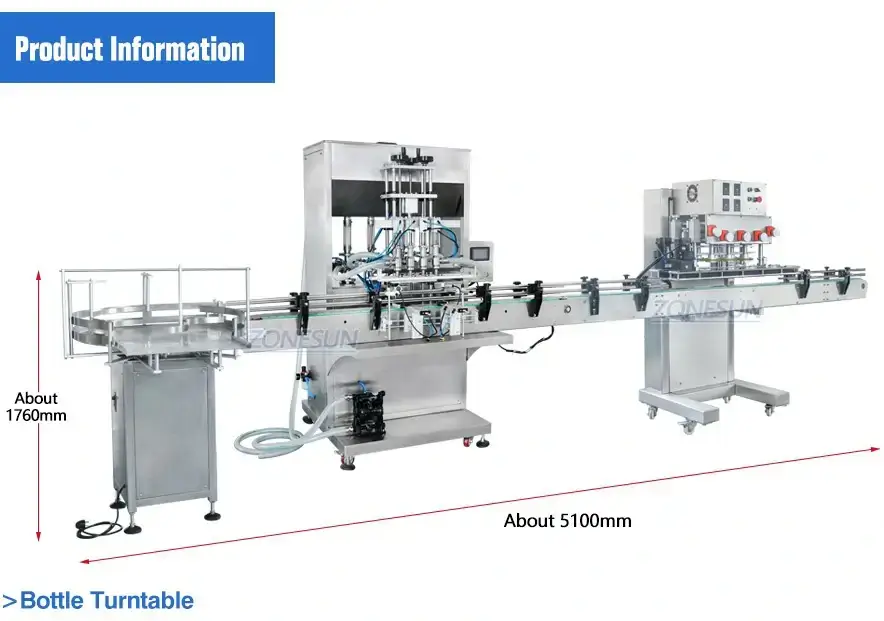

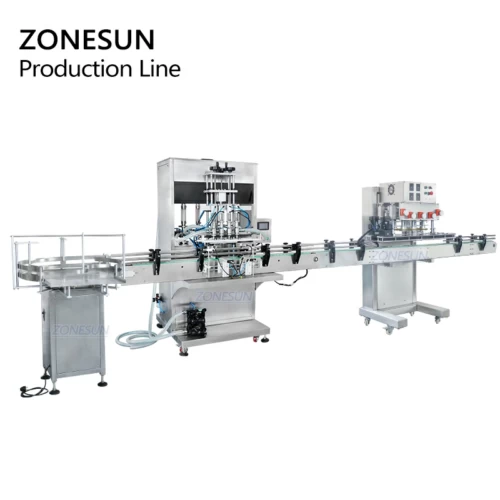

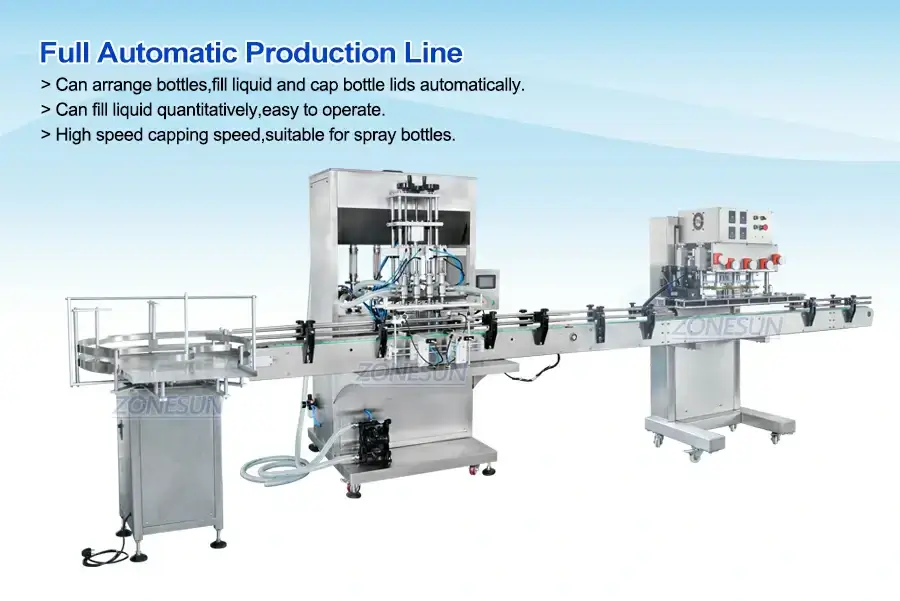

This production line is composed of turntable machine,automatic filling machine,and automatic capping machine.It is suitable for packaging beverages,daily chemical products.The high speed filling and capping machine can improve working efficiency greatly.
Share to
Description:
This production line is composed of turntable machine,automatic filling machine,and automatic capping machine.It is suitable for packaging beverages,daily chemical products.The high speed filling and capping machine can improve working efficiency greatly.

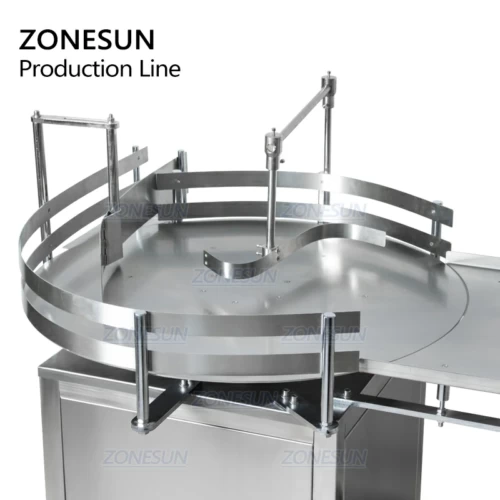

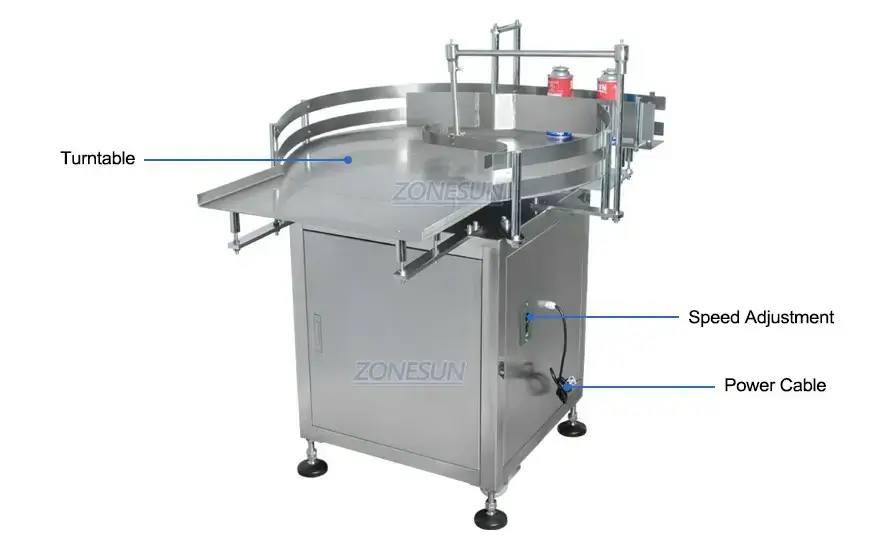

| Model | 800/1000 |
| Turntable diameter | 800mm/1000mm |
| Suitable Bottle Diameter | 20-100mm |
| Suitable Bottle Height | 30-120mm |
| Working Speed | About 40-60 bottles/min(depends on bottle size) |
| Motor Power | 2000W |
| Power Supply | 220V/50-60HZ |
| Net weight | About 109.5kg /135kg |
| Gross weight | About 155kg/180kg |
| Package size | About 1150*1000* 1320mm/1350*1315*1235mm |

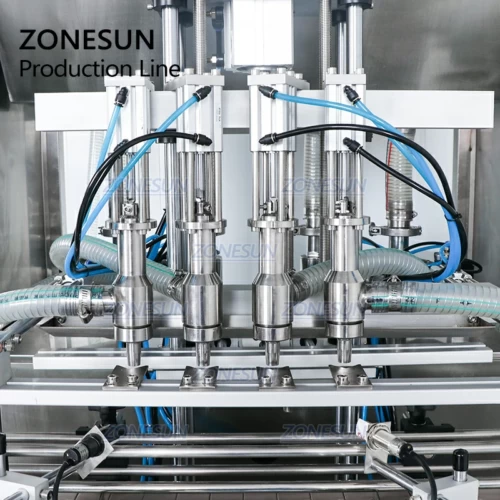

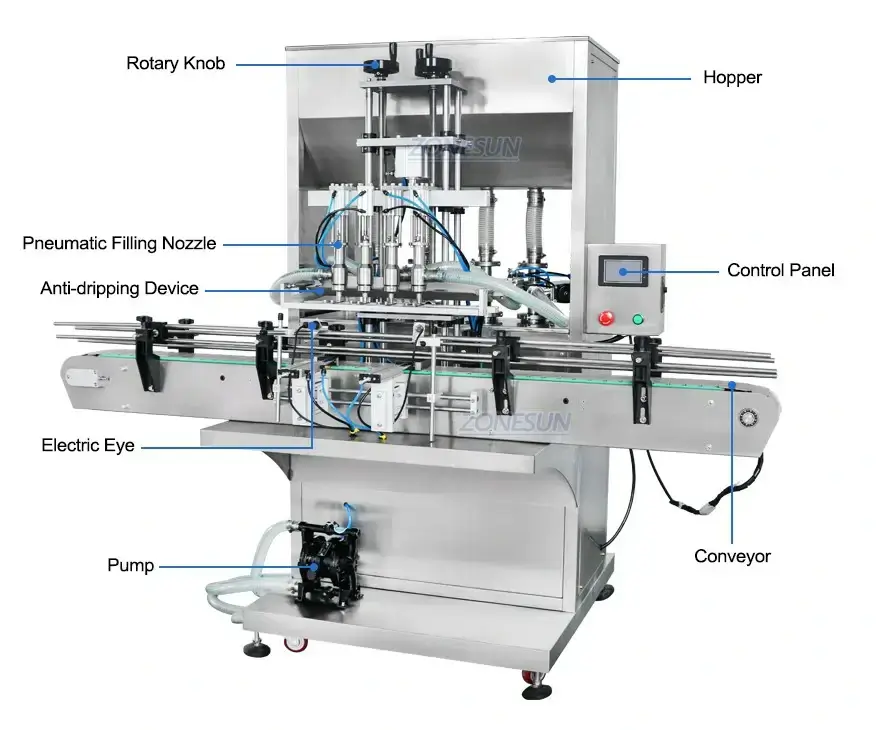

| Model | ZS-SV4GB |
| Voltage | 110/220V 50-60HZ |
| Filling range | 5-100ml/10-300ml/50-500ml/1001000ml/5003000ml/1000-5000ml |
| Working speed(base on water) | About 20-80 bottles/min |
| Filling accuracy | ≤2% |
| Conveyor size | 2000*100mm(L*W) |
| Size of filling nozzle | OD15mm |
| Size of air compressor connector | φ8mm |
| Machine dimension | About 905*1100*1760mm |
| Machine weight | About 248kg |

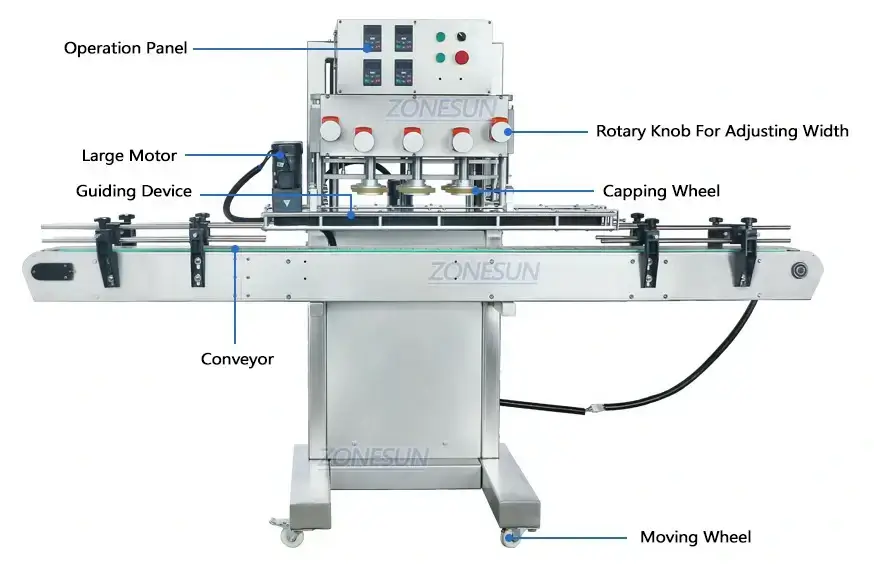

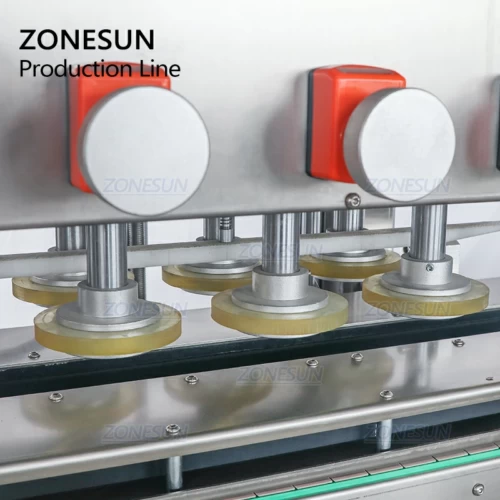

| Machine Model | ZS-XG440B |
| Voltage | 220V 60HZ |
| Capping Speed | About 50-80bottles/min |
| Bottle height | 45-320mm |
| Botle diameter | 23-100mm |
| Cap diameter | 19-55mm |
| Capping Torsion | 4-9kgf/cm |
| Air pressure | 0.4-0.6Mpa |
| Max power | 300W |
