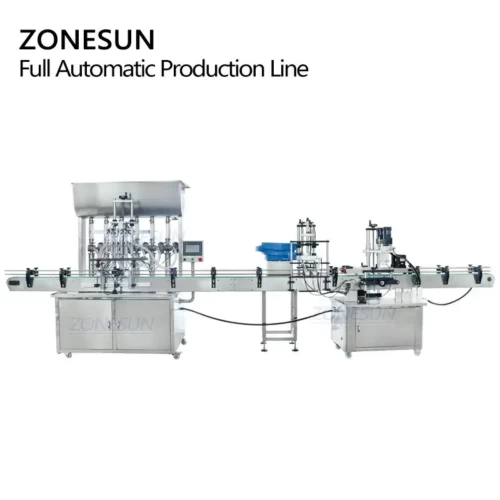

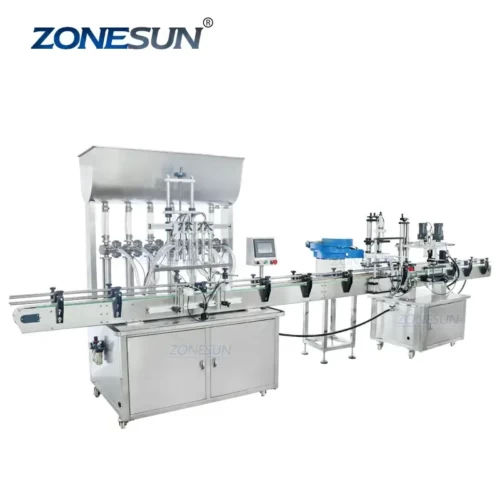

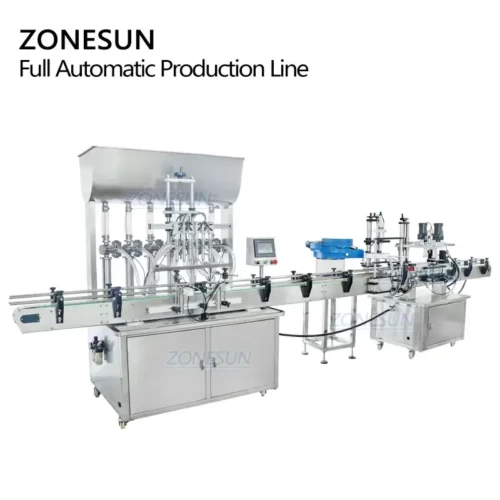

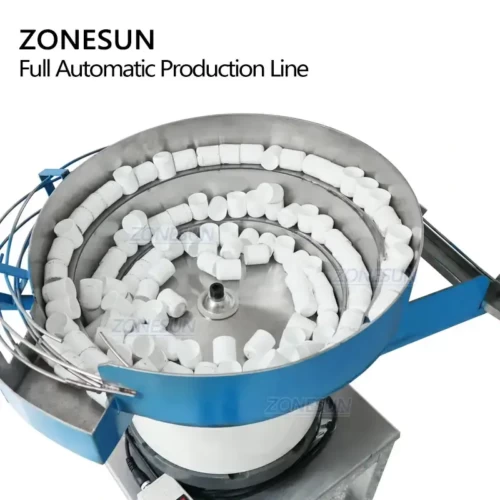

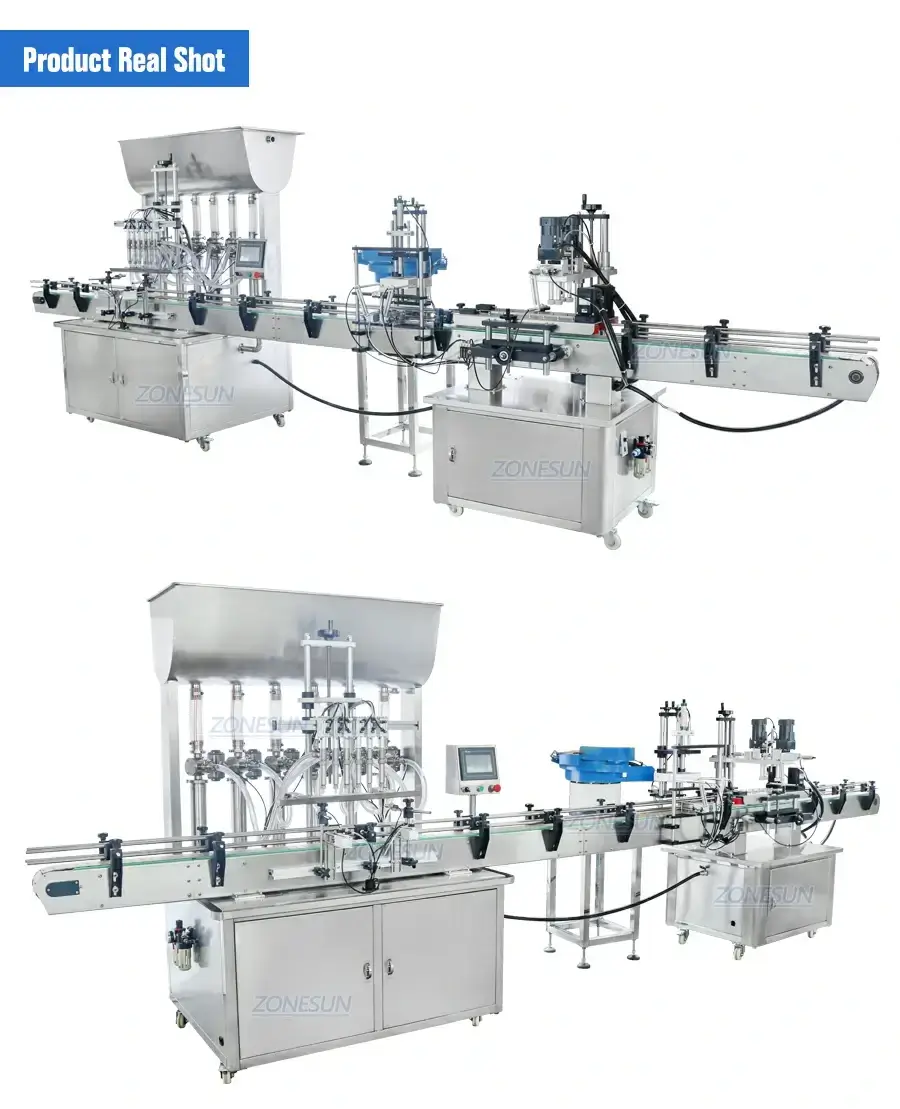

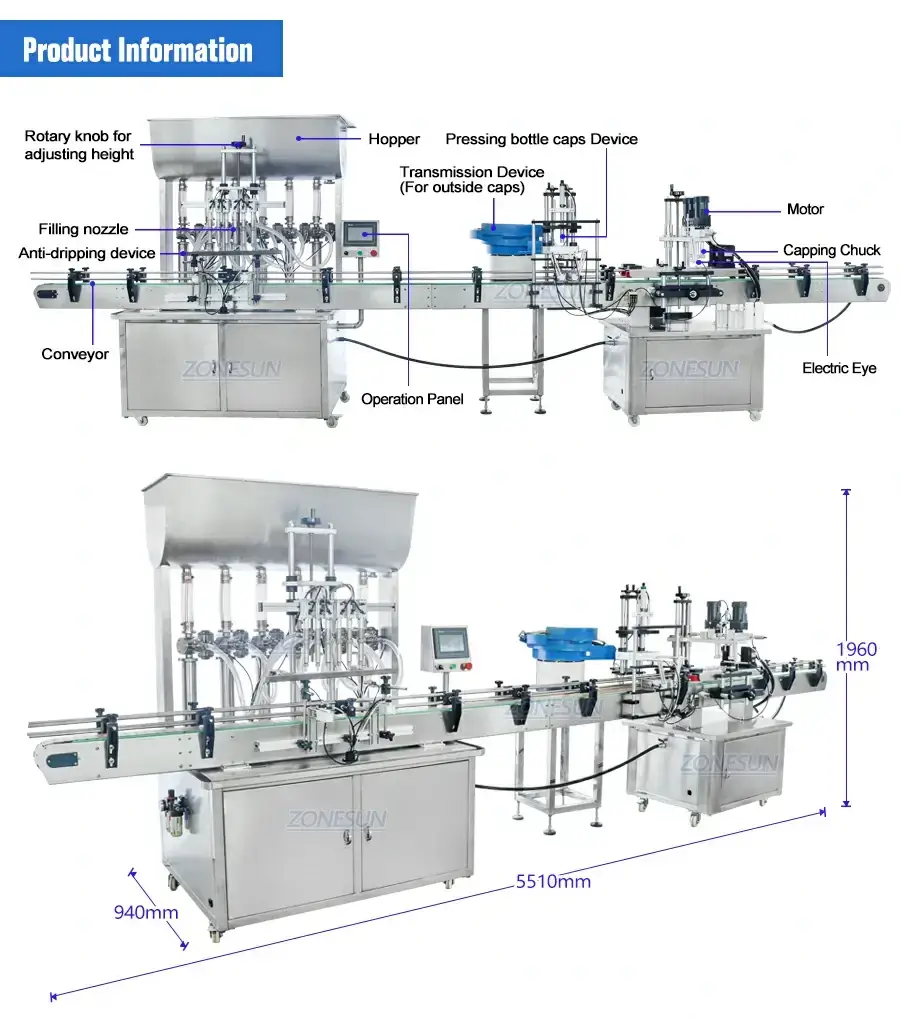

Automatic 6-head Filling And Capping Machine With Cap Vibratory Feeder

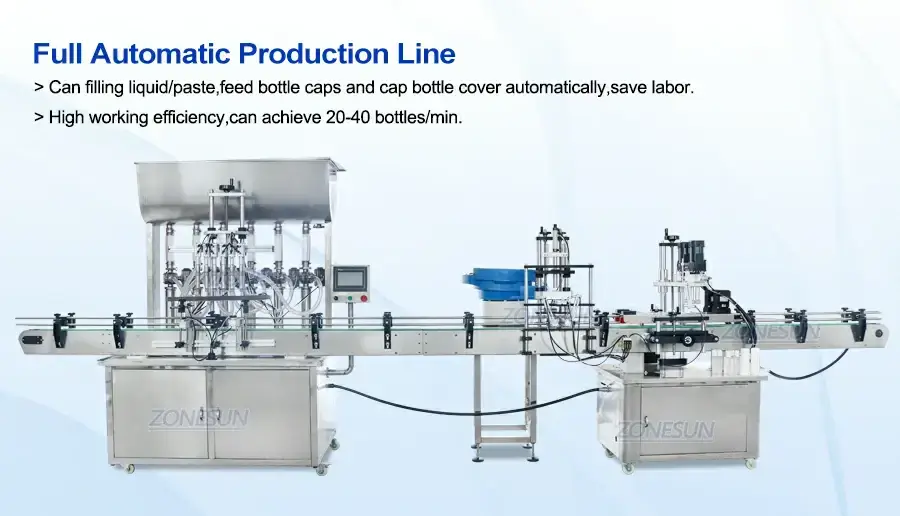

This automatic production is designed for filling paste or thicker liquid,like honey, hand sanitizer, laundry detergent,machine oil.It can automatically fill paste,feed bottle caps and cap bottles.Equipped with a labeling machine,it can be a complete production line for production process.Each machine of this production line can work separately.
Share to
Description:
This automatic production is designed for filling paste or thicker liquid,like honey, hand sanitizer, laundry detergent,machine oil.It can automatically fill paste,feed bottle caps and cap bottles.Equipped with a labeling machine,it can be a complete production line for production process.Each machine of this production line can work separately.
| Model | ZS-YT2T-2P | ZS-YT4T-4P | ZS-YT6T-6P | ZS-YT8T-8P |
| Voltage |
110/220V 50-60HZ 800W |
|||
| Filling Range |
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
| Working Speed (base on water) |
10-40bottles/min | 20-50bottles/min | 30-70bottles/min | 40-80bottles/min |
| Filling Accuracy |
≤+1% |
|||
| Conveyor Size |
About 1990*100mm(L*W) |
|||
| Size of filling nozzle |
φ10mm |
|||
| Size of air compressor connector |
φ10mm |
|||
| Package weight | 220kg | 260kg | 300kg | 600kg |
| Package size | 200*120*230cm | 200*120*230cm | 250*130*230cm | 280*130*250cm |
| Machine Model | ZS-XG440 |
| Working voltage | AC220V/110V 50-60HZ |
| Bottle height | 50-350mm |
| Bottle caps diameter | 20-50mm |
| Working speed | 0-40 bottles/minute (depending on bottle and caps |
| Working pressure | 0.4-0.6 MPa |
| Conveyor size | 100mm(W)*1950mm(L) |
| Packagesize | 2000*820*1800mm |
| Packageweight | 380kg |
