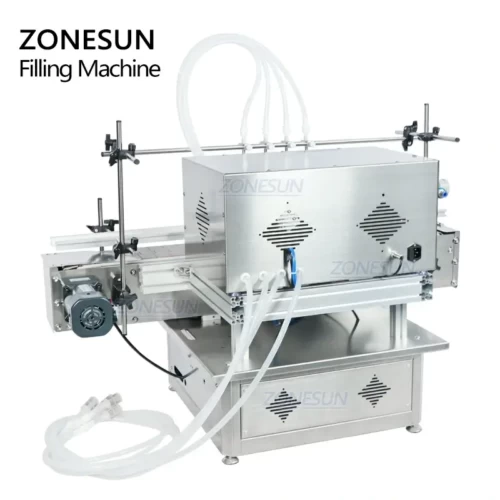

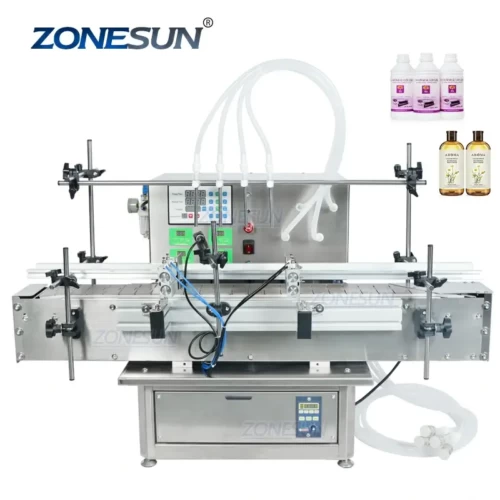

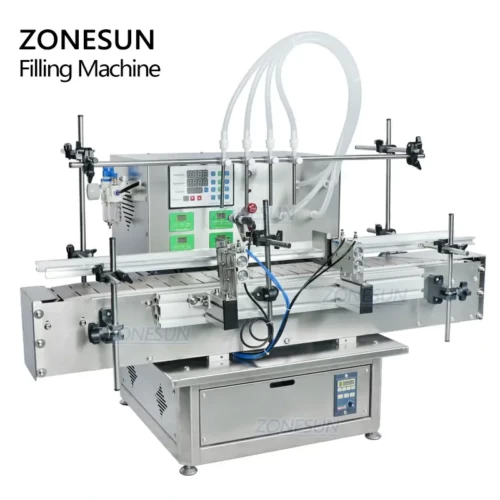

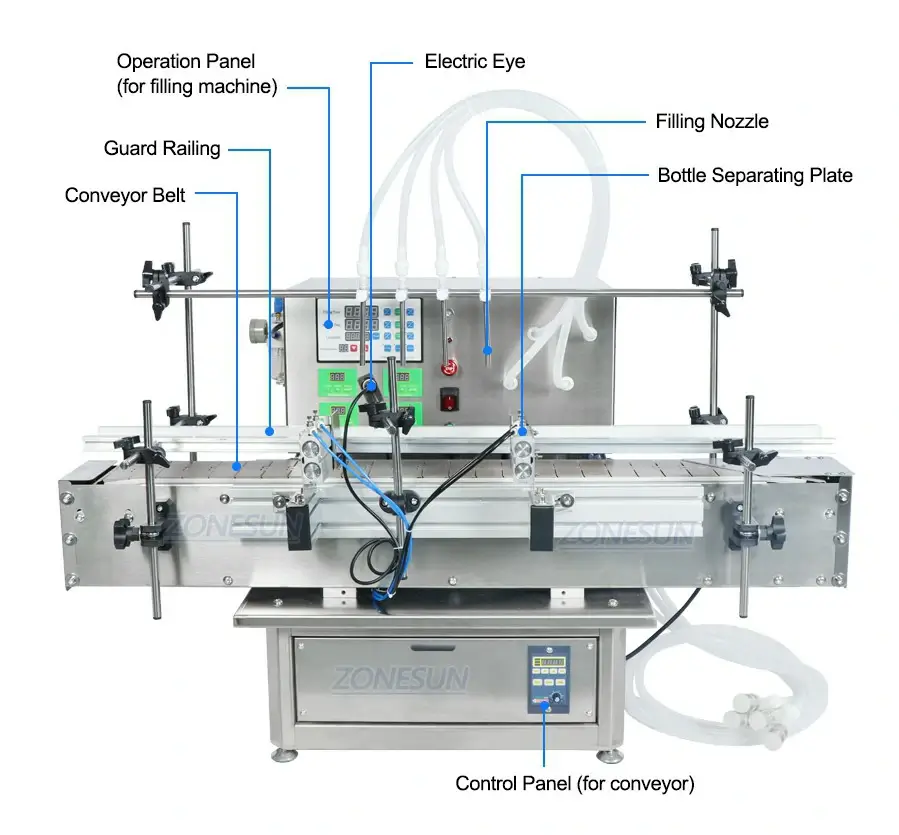

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt

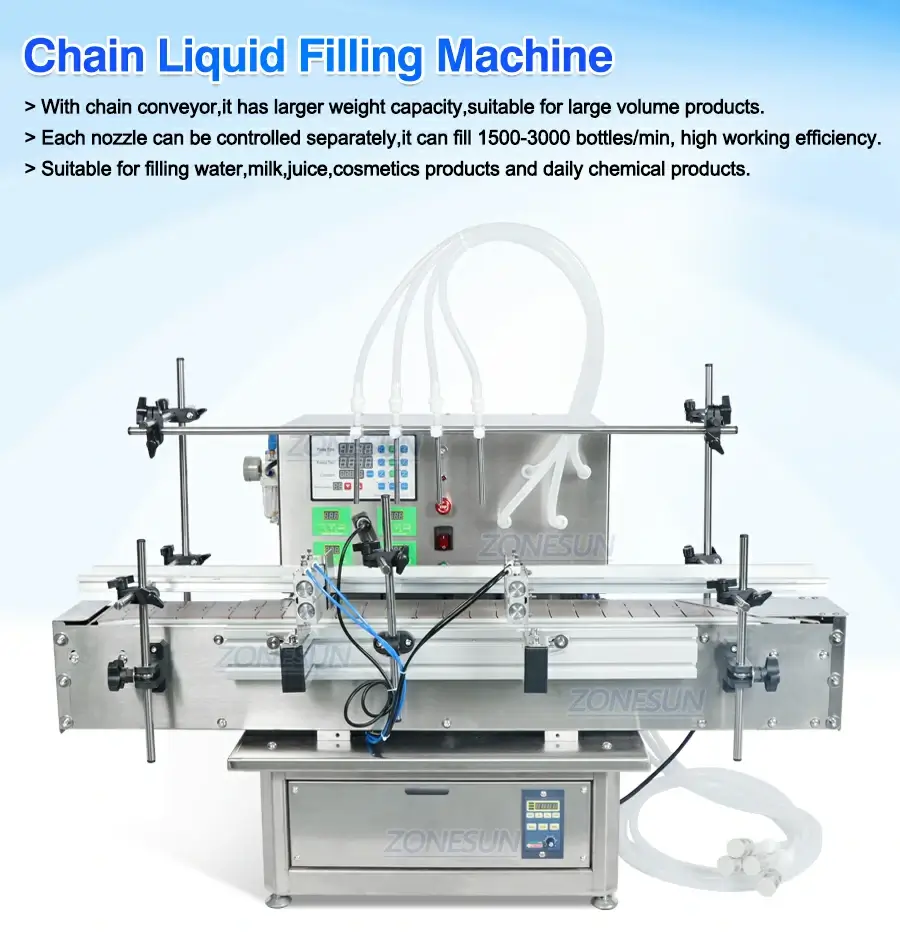

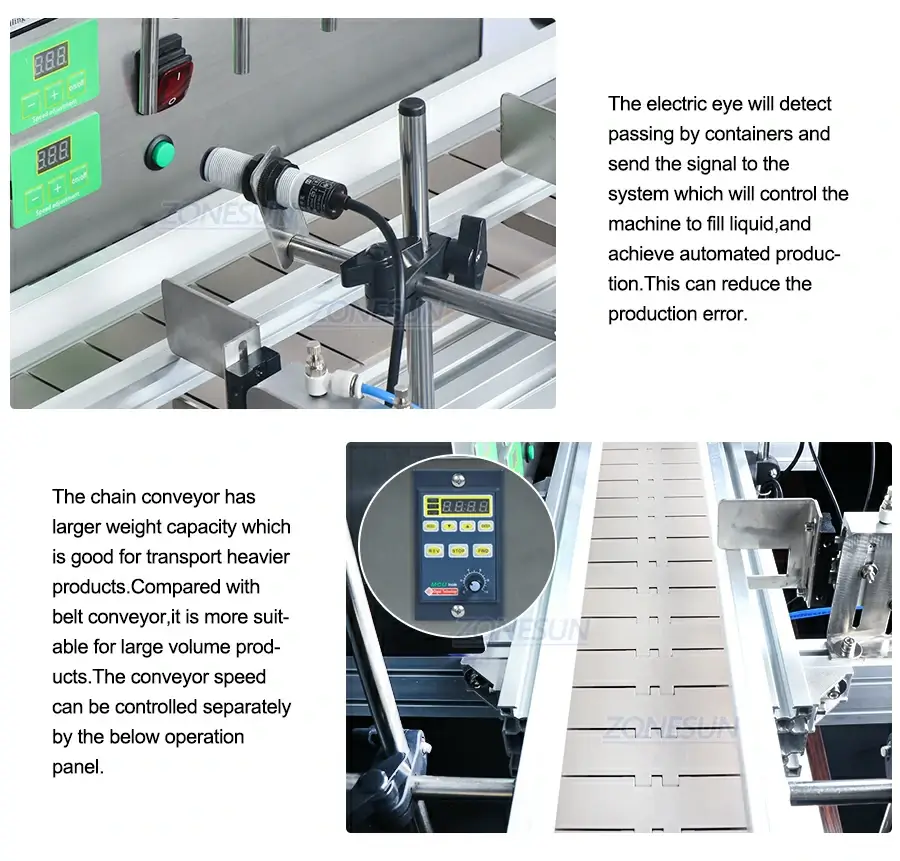

This automatic liquid filling machine is designed with chain conveyor,compared with the belt conveyor,it has larger weight capacity,ensures large volume products can be transported smoothly.This machine is suitable for drinks,cosmetics and daily chemical industries.
Share to
Description
This automatic liquid filling machine is designed with chain conveyor,compared with the belt conveyor,it has larger weight capacity,ensures large volume products can be transported smoothly.This machine is suitable for drinks,cosmetics and daily chemical industries.
| Machine model | ZS-DTDP-4P |
| Voltage | 110/220V 50-60HZ |
| Power | 250W |
| Maximum flow velocity | 4000ml/min(Each nozzle and base on water) |
| Working speed | 1500-3000 bottles/hour(depends on bottle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤+1% (For water) |
| Bottle height | <220mm(Can be customized,max height 300mm) |

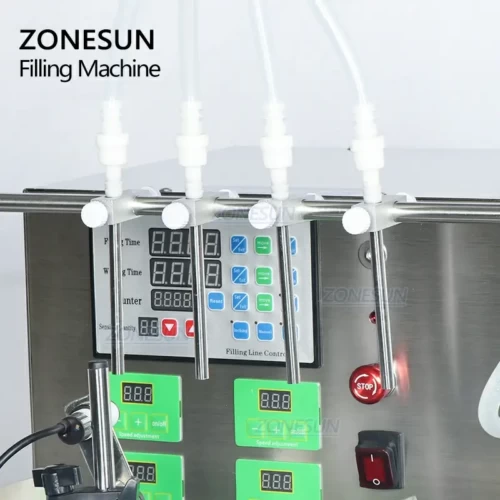

| Diameter of filling nozzle | 6/8mm |
| Conveyor size | 1030*115mm(L*W) |
| Size of air compressor connector | OD 8mm |
| Machine size | 1114*650*765mm |
| Machine weight | 52kg |
| Package size | 1145*605*795mm |
| Gross weight | 78kg |
