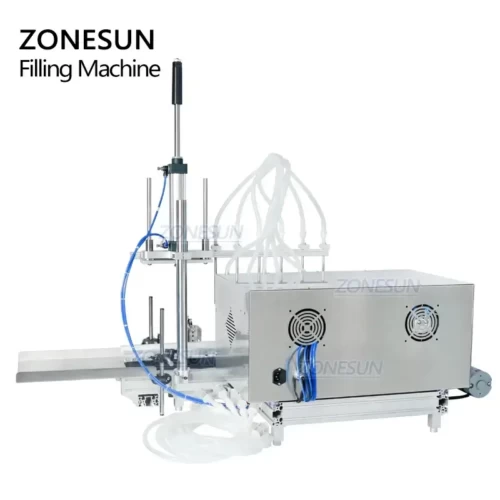

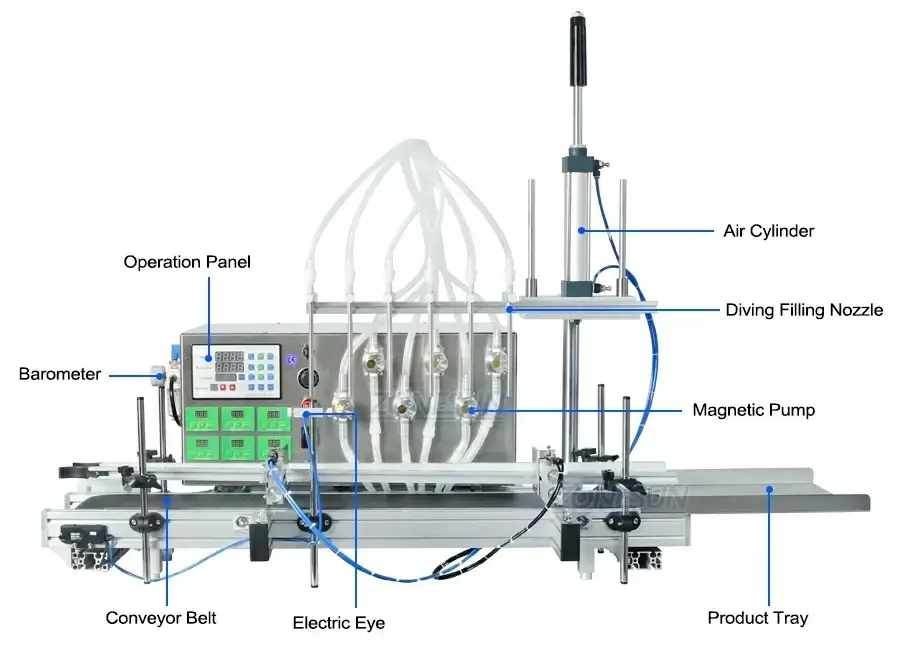

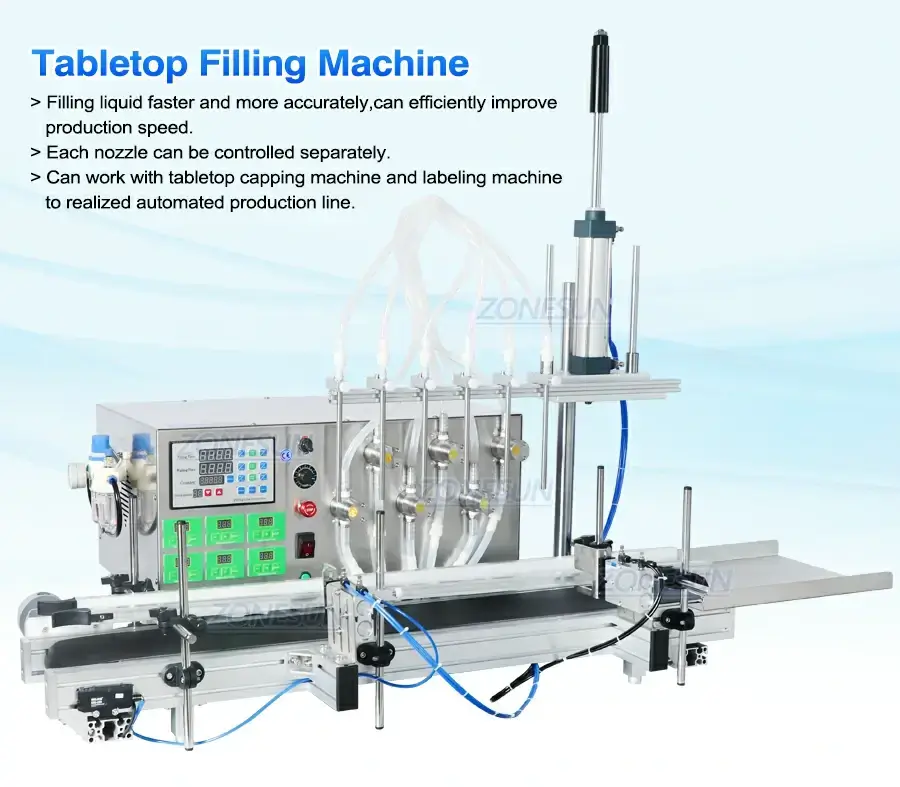

6 Diving Nozzles Magnetic Pump Filling Machine

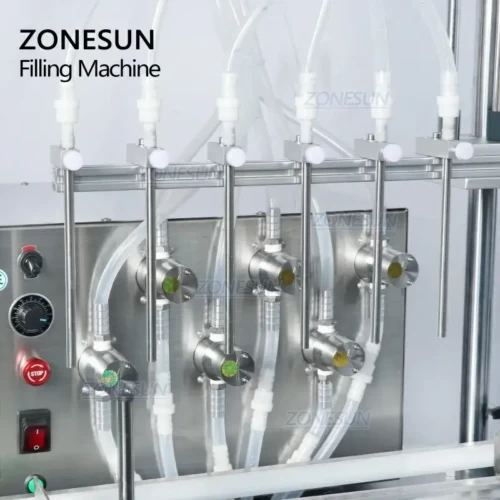

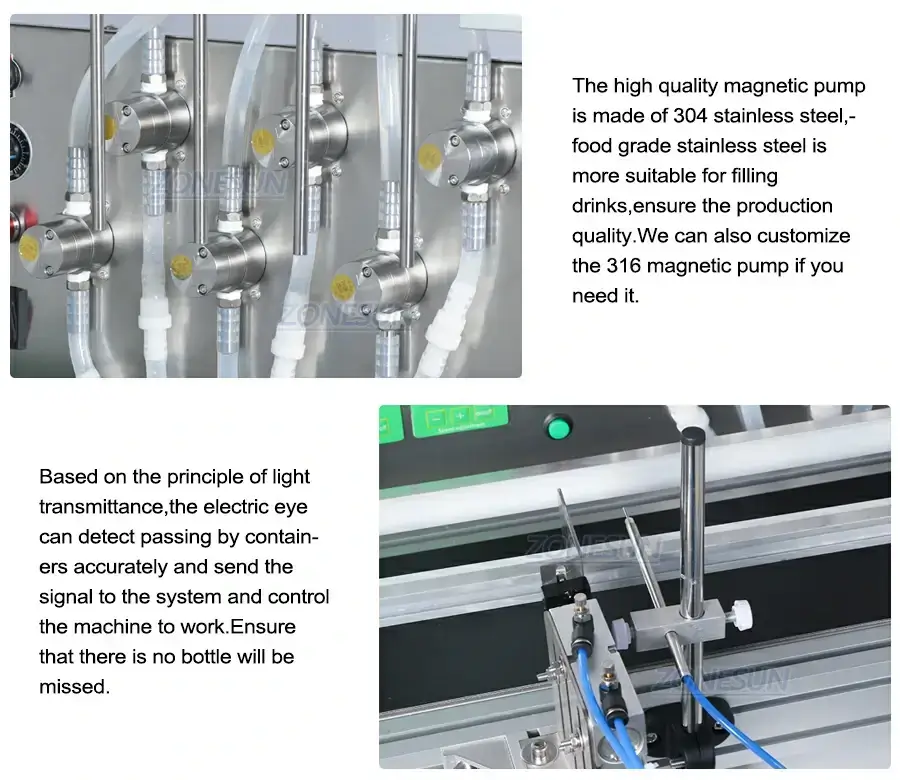

The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or explosive fluids,and other toxic chemicals.In addition,expensive liquids are not wasted.
Share to
Description:
The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or explosive fluids,and other toxic chemicals.In addition,expensive liquids are not wasted.
Application:
This filling machine is widely used in food,beverage,chemical,household products,personal care pharmaceutical.biomedical industries.
Parameter:
| Machine model | ZS-DTMP6A | ZS-DTMP6B |
| Power supply | 110/220V 50-60HZ | |
|
Maximum flow velocity
|
5500ml/min
(Each nozzle and base on water)
|
9000ml/min
(Each nozzle and base on water)
|
| Working speed |
30-40 bottles/min
(based on 50-1000ml filling volume)
|
40-55 bottles/min
(based on 50-1000ml filling volume)
|
| Air pressure | 0.3-0.4MPa | |
| Filling accuracy | ≤±1% (For water) | |
| Diameter of Flling Nozzle | 6/8mm | |
| Delay Range | 0.01-999.9s | |
| Count Range | 1-99999 Times | |
| Filling Volume | 3-1000ml(220V)3- 500ml(110V) | |
| Size of air compressor connector | OD8mm | |
| Bottle height | <220mm(Can be customized,max height 300mm) | |
| Package Size | About 1105*715*435mm | |
| Gross weight | About 66kg | About 78kg |
