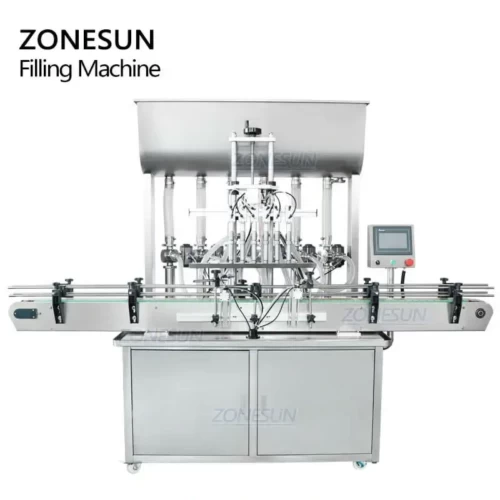

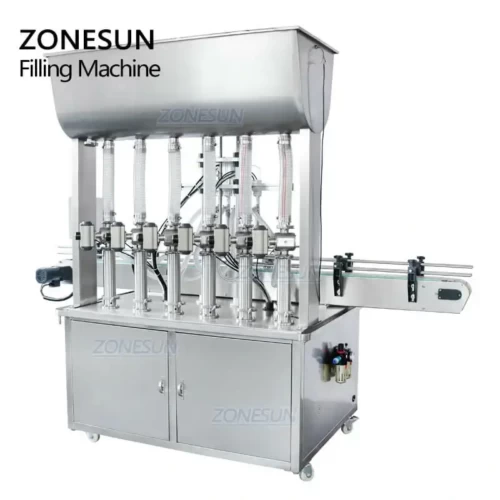

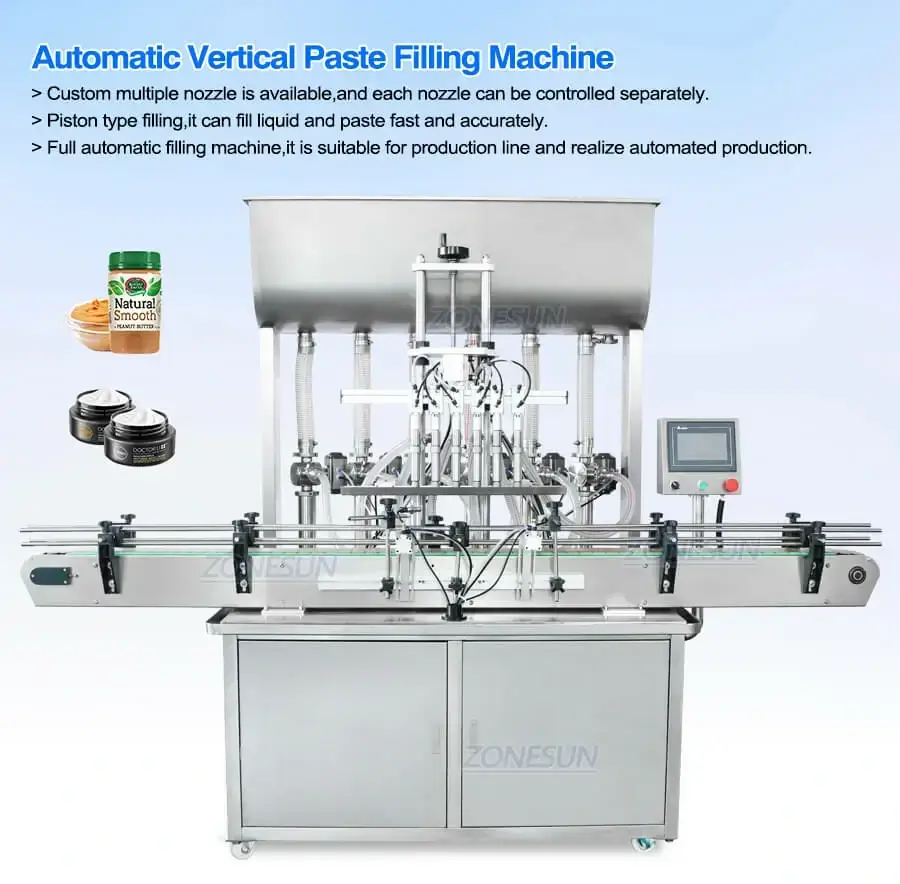

ZONESUN ZS-YT6T-6P Automatic Pneumatic Paste Filling Machine
This automatic vertical paste filling machine can fill a series of thick liquid or paste into bottles,which is driven by a piston and turning the cylinder valve,can use the magnetic reed switch to control cylinder stroke,and then the operator can adjust the filling amount.This automatic filling Machine has simple, reasonable structure, and easy to understand,and can fill material accurately.
Share to
Description:
This automatic vertical paste filling machine can fill a series of thick liquid or paste into bottles,which is driven by a piston and turning the cylinder valve,can use the magnetic reed switch to control cylinder stroke,and then the operator can adjust the filling amount.This automatic filling Machine has simple,reasonable structure,and easy to understand,and can fill material accurately.
Application:
This filling machine is most commonly applicable for pharmaceutics,daily chemicals,foodstuffs,cosmetics,pesticides and other industries.It is good for filling liquid and paste material,such as mineral water,cooking oils,juice,detergent,sauce, salad,butter&margarine,ketchup,jams,cream,honey,shampoos etc.
| Model | ZS-YT6T-6P |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed(base on water) | About 30-70bottles/min |
| Filling Accuracy | ≤+1% |
| Conveyor Size | About 1990*100mm(L*W) |
| Size of filling nozzle | φ10mm |
| Size of air compressor connector | φ10mm |
| Machine size | About 245*102*198cm(50-500ml) |
| Package size | About 261*126.5*214.5cm(50-500ml) |
| Net weight/Gross weight | About 357.5kg/474.5kg(50-500ml) |
